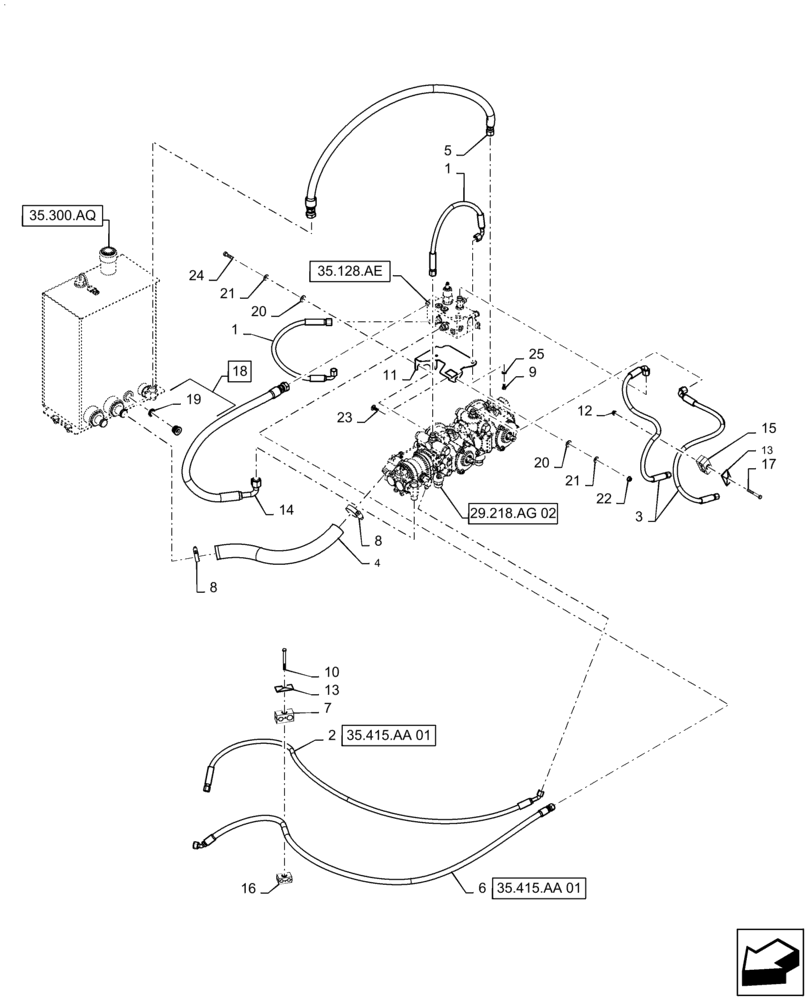

Запчасти Case IH WD1504 (35.105.AC[02]) - HYDRAULIC NON-DRAPER, CHARGE CIRCUIT, 4 CYLINDER, BSN YGG677500 (35) - HYDRAULIC SYSTEMS

1

47571022

HYDRAULIC HOSE

Charge Manifold

2шт.

2

47475255

HYDRAULIC HOSE

Charge Manifold to Lift Manifold

1шт.

3

47566289

HYDRAULIC HOSE

Prop Cylinder and Auto Guidance

2шт.

4

47567179

HOSE

Lift Pump Suction

1шт.

5

47434640

HYDRAULIC HOSE

Ground Drive Manifold

1шт.

6

84597016

HYDRAULIC HOSE

RH Lift Pump

1шт.

7

2186769

CLAMP

Two Hole, Smooth, 22MM - 17MM

1шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

11

84602640

BRACKET

Manifold Mounting

1шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

13

87000230

PLATE

Clamp Cap

2шт.

14

47435160

HYDRAULIC HOSE

Charge Manifold In

1шт.

15

6560407

CLAMP,2 Hole, 18mm ID

Two Hole, Smooth, 18MM

1шт.

16

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

Two Hole, Ribbed, 12.7MM

1шт.

17

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

18

9841223

PLUG,1-1/16" - 12 ORB

Incl 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

24

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.
