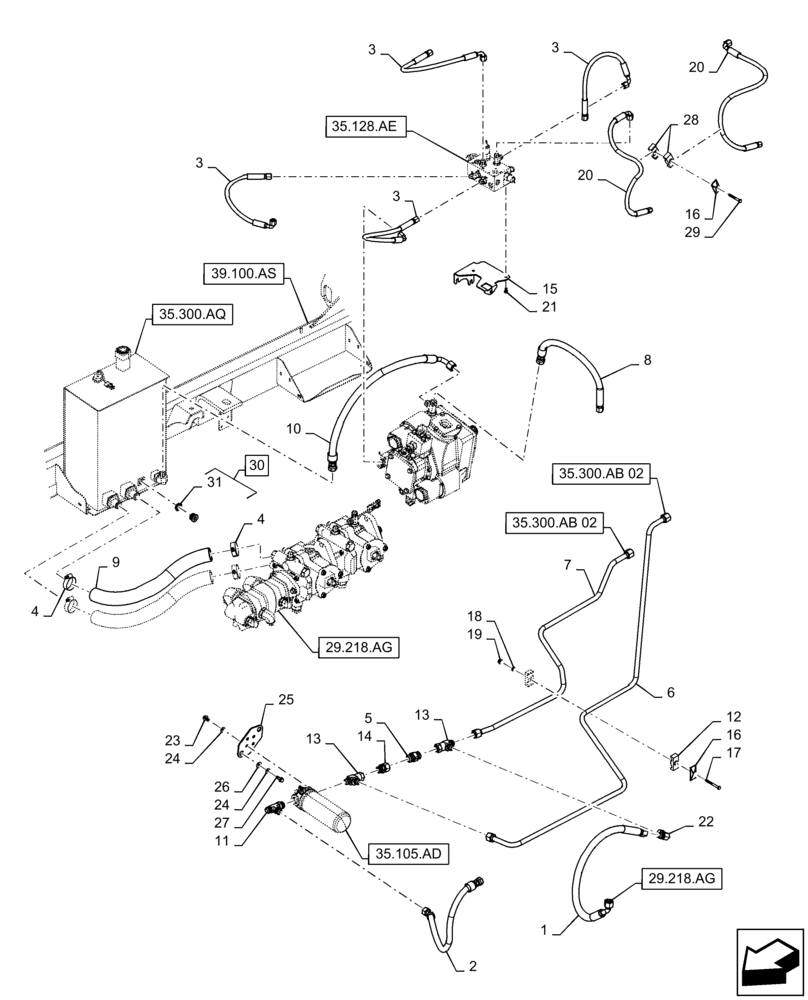

Запчасти Case IH WD1504 (35.105.AC[01]) - HYDRAULIC DRAPER, CHARGE CIRCUIT, 4 CYLINDER, BSN YGG677500 (35) - HYDRAULIC SYSTEMS

1

47570959

HOSE

Charge Pump to Tee (Supply)

1шт.

2

84597539

HYDRAULIC HOSE

Charge Manifold Supply

1шт.

3

47571022

HYDRAULIC HOSE

Charge Manifold

4шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

5

47481633

CHECK VALVE

125 PSI

1шт.

6

47614889

TUBE

Oil Cooler Return

1шт.

7

47614882

TUBE

Oil Cooler Supply

1шт.

8

47434599

HYDRAULIC HOSE

Ground Drive Case Drain

1шт.

9

47567179

HOSE

Lift Pump Suction

2шт.

10

47434629

HYDRAULIC HOSE

Header Pump Case Drain

1шт.

11

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

12

87000140

CLAMP,Tube, 19.05mm

Two Hole, Ribbed, 19.05MM

1шт.

13

87698812

HYD CONNECTOR

Tee, 12-16-12 37FL Swvl Run

2шт.

14

84221265

HYD CONNECTOR

37D -12 Swvl 1-1/16-12 O

1шт.

15

84602640

BRACKET

Manifold Mounting

1шт.

16

87000230

PLATE

Clamp Cap

2шт.

17

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

19

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

20

47566289

HYDRAULIC HOSE

Prop Cylinder and Auto Guidance

2шт.

21

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

22

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

25

47566635

PLATE

Filter Assy Mounting

1шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

27

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

6560407

CLAMP,2 Hole, 18mm ID

Two Hole, Smooth, 18MM

1шт.

29

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

30

9841223

PLUG,1-1/16" - 12 ORB

Incl 31

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
