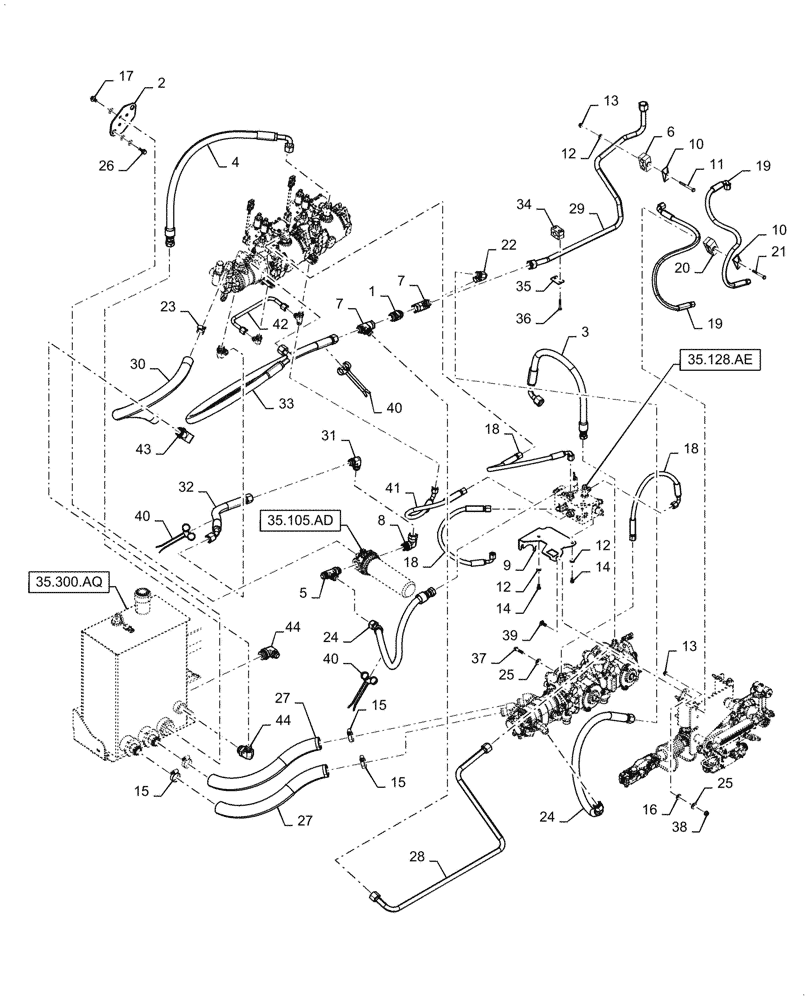

Запчасти Case IH WD1504 (35.105.AC[01]) - HYDRAULIC DRAPER, CHARGE CIRCUIT, 4 CYLINDER, ASN YGG677501 (35) - HYDRAULIC SYSTEMS

1

47481633

CHECK VALVE

125 PSI

1шт.

2

47566635

PLATE

1шт.

3

48142461

Ground Drive, Case Drain

HYDRAULIC HOSE

1шт.

4

47434629

HYDRAULIC HOSE

Header Pump, Case Drain

1шт.

5

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

6

87000140

CLAMP,Tube, 19.05mm

1шт.

7

87698812

HYD CONNECTOR

2шт.

8

87612750

90 ELBOW,3/4" JIC x 1-1/16" - 12 ORB

2шт.

9

84602640

BRACKET

1шт.

10

87000230

PLATE

Cover

2шт.

11

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

17

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

18

47571022

HYDRAULIC HOSE

Hydraulic Assy, Charge Manifold

3шт.

19

47566289

HYDRAULIC HOSE

Prop Cylinder and Auto Guidance

2шт.

20

6560407

CLAMP,2 Hole, 18mm ID

1шт.

21

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

22

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

23

86508316

PLATE

1шт.

24

47570959

HOSE

Hydraulic, Draper Charge

2шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

26

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

47567179

HOSE

Suction, Lift Pump

2шт.

28

47689066

TUBE

1шт.

29

47689067

TUBE

1шт.

30

47970447

HYDRAULIC HOSE

Suction

1шт.

31

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

32

47682568

HOSE

Filter, Inlet

1шт.

33

47682568

HOSE

Charge Pump Inlet

1шт.

34

86900723

CLAMP

1шт.

35

86900727

COVER

1шт.

36

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

37

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

38

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

39

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

40

84386243

CLAMP,489mm L

3шт.

41

47880036

HYDRAULIC HOSE

Charge Manifold

1шт.

42

47880051

TUBE

Hydraulic Charge, Draper Head Pump

1шт.

43

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

1шт.

44

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

2шт.

45

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.
