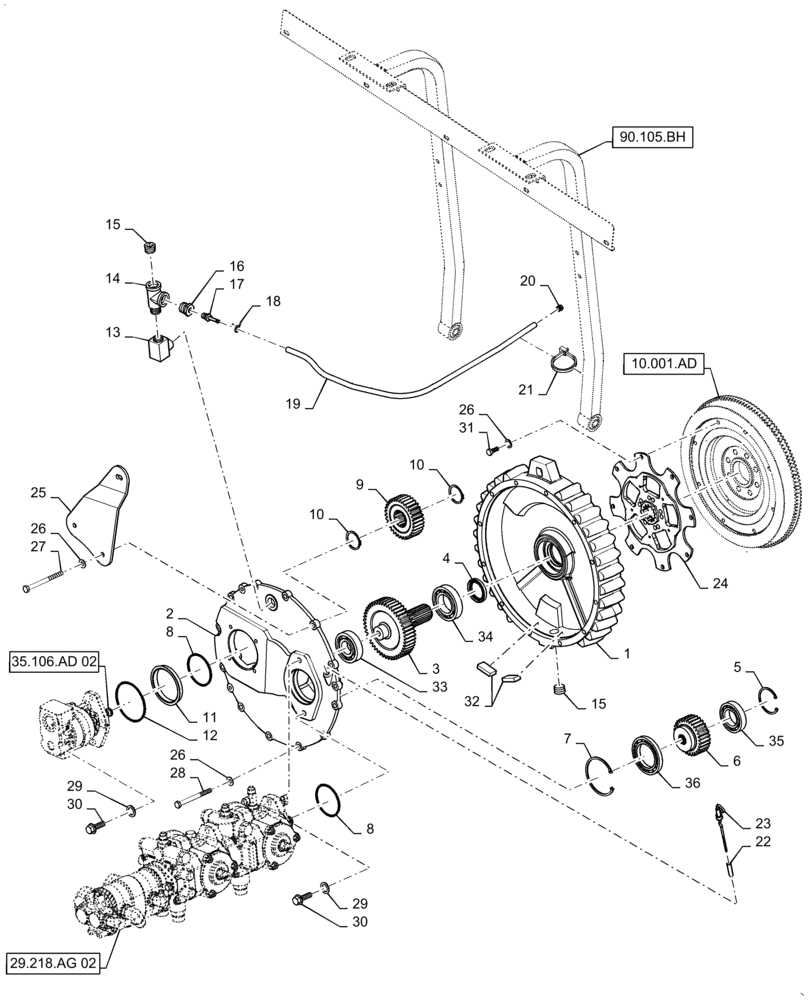

Запчасти Case IH WD1504 (31.220.AG[02]) - GEARBOX, PTO ASSY, NON-DRAPER 4 CYLINDER (31) - IMPLEMENT POWER TAKE OFF

1

84522083

HOUSING

Gearbox, Non-Draper, 4 Cylinder

1шт.

2

84559750

COVER

Gearbox

1шт.

3

84553354

GEAR

39 Tooth, Shaft

1шт.

4

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

Gear

1шт.

5

9823834

SNAP RING

68 mm

1шт.

6

84553407

GEAR

26 Tooth

1шт.

7

370026

SNAP RING,M100 x 3mm Thk, Internal

1шт.

8

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

9

86635384

GEAR

30 Tooth

1шт.

10

9617878

SNAP RING,#98, Ext

2шт.

11

86974942

BUSHING

Cover

1шт.

12

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

13

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

14

509968

3 WAY CONNECTION

Tee, Street Pipe Iron 3/4-14 NPTF

1шт.

15

509939

PLUG

3/4 NPTF Socket

2шт.

16

686790

REDUCER

3/4 NPTF Male X 1/4 NPTF Female Brass

1шт.

17

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

1шт.

18

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

19

87280926

FUEL HOSE

Breather

1шт.

20

854071

BREATHER

Gearbox

1шт.

21

529070

CABLE TIE,368.3mm L

1шт.

22

86522662

TUBE,9.52 mm OD x 68.00 mm L

Dipstick Tube

1шт.

23

9635238

INDICATOR

Dipstick

1шт.

24

87652184

DAMPER

PTO

1шт.

25

47472875

SUPPORT

Gearbox

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

27

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

2шт.

28

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

10шт.

29

58102

WASHER

4шт.

30

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

31

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

32

9840491

MAGNET

Ceramic

2шт.

33

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

39 Tooth Gear

1шт.

34

84553365

BALL BEARING

39 Tooth Gear

1шт.

35

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

26 Tooth Gear

1шт.

36

84519494

BALL BEARING

26 Tooth Gear

1шт.
