Запчасти Case IH WD1204 (35.128.AE) - HYDRAULIC MANIFOLD, DRAPER CHARGE (35) - HYDRAULIC SYSTEMS

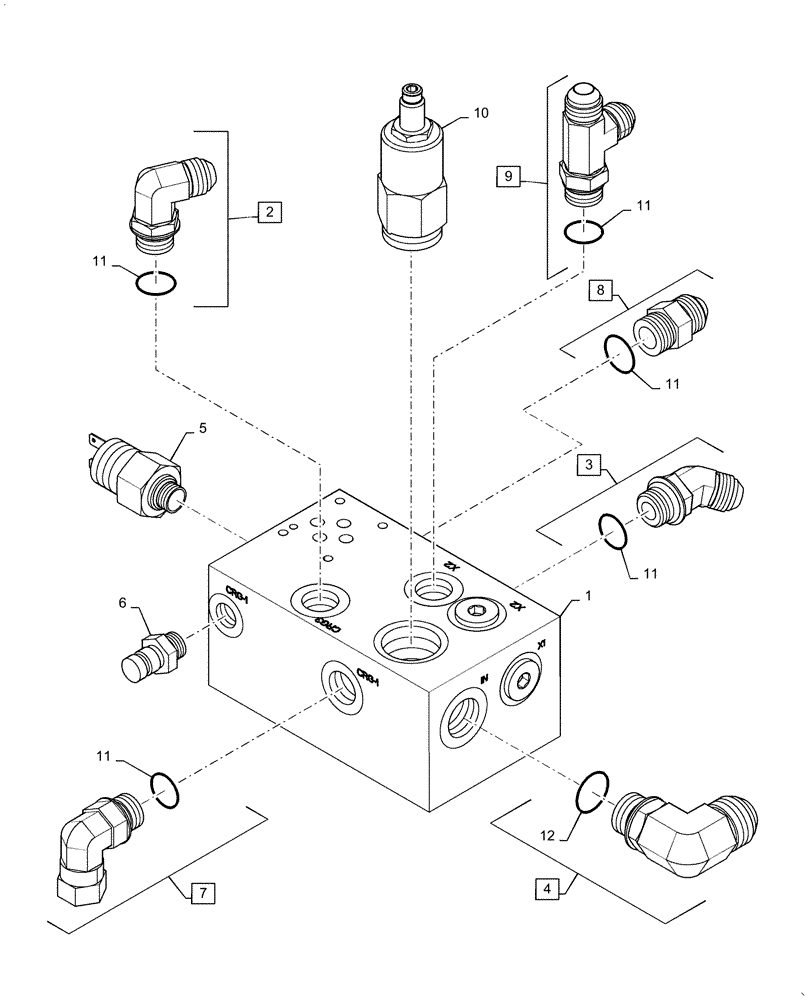

Схема запчастей Case IH WD1204 - (35.128.AE) - HYDRAULIC MANIFOLD, DRAPER CHARGE (35) - HYDRAULIC SYSTEMS
11
12
11
11
4
11
9
6
11
8
3
7
2
10
1
5

Артикул

Название

Примечание

Количество

1

47404488

HYDRAULIC MANIFOLD

Charge Relief

1шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

3

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 11

1шт.

4

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

Incl 12

1шт.

5

84155716

PRESSURE SWITCH

Charge Pressure

1шт.

6

87026252

ASSEMBLY

Quick Coupler

1шт.

7

84603097

ELBOW

90, 37D-8 FSWVL M Adj ORB, Incl 11

1шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

9

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

10

NSS

NOT SOLD SEPARAT

Incl In 1

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
