Запчасти Case IH WD1204 (35.105.AC[06]) - REVERSING HEADER CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS

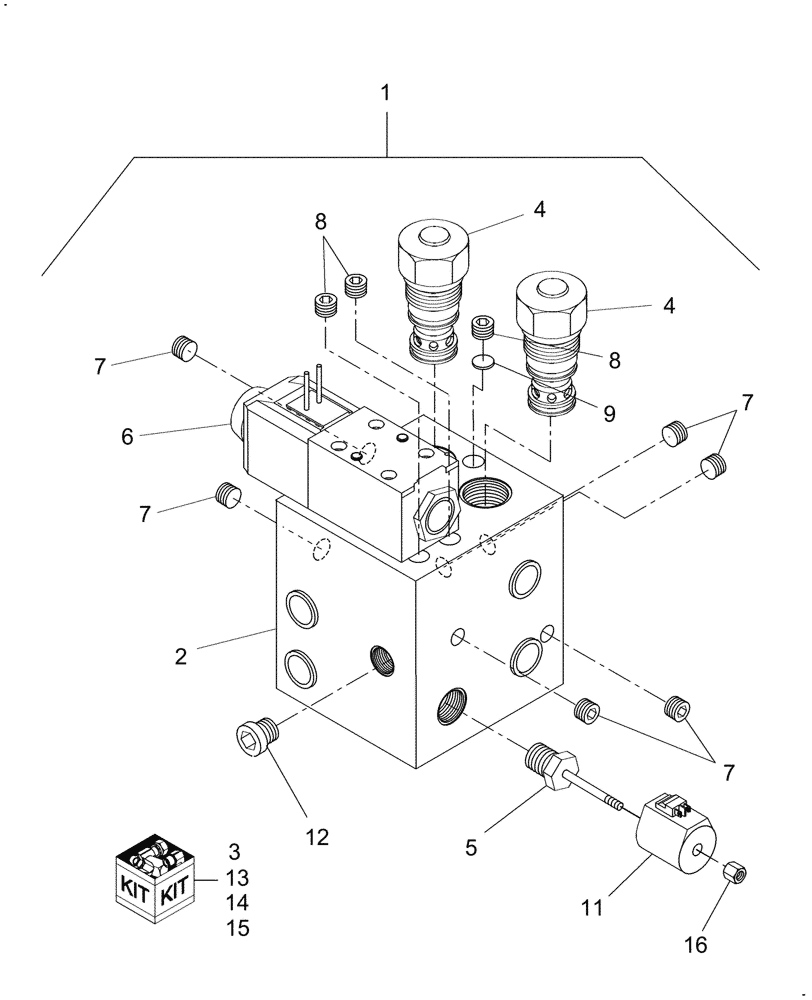

Схема запчастей Case IH WD1204 - (35.105.AC[06]) - REVERSING HEADER CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS
2
4
5
1
13
11
9
6
7
7
14
3
15
8
8
7
16
7
4
12

Артикул

Название

Примечание

Количество

1

87373659

CONTROL VALVE

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold

1шт.

3

87025780

SEAL KIT

Services Ref. 4

1шт.

4

87026148

VALVE PRESSURE RELIE

2шт.

5

87372919

VALVE PRESSURE RELIE

Includes Ref. 16

1шт.

6

87013679

CONTROL VALVE

See Also: Ref. 13 & 14; Includes:

1шт.

6

86575234

NUT

Coil

1шт.

6

87026108

COIL ASSY.

C-Top

1шт.

7

87037029

PLUG

Zero-Leak - 2, 5/16"-24

6шт.

8

87037031

PLUG

Zero-Leak - 6, 9/16"-18

3шт.

9

87025778

PLUG

Orifice

1шт.

10

NSS

NOT SOLD SEPARAT

Threaded Stud

2шт.

Not Shown

1шт.

11

87352779

SOLENOID

Services Ref. 5

1шт.

12

87038568

STOP PLUG

Zero-Leak - 12, 1-1/16"-12

1шт.

13

86514808

SEAL KIT

Services Ref. 6, Control Valve

1шт.

14

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit, Services Ref. 6, Control Valve

1шт.

15

87026589

SEAL KIT

Seal; Services Ref. 5

1шт.

16

86516836

NUT

Coil

1шт.

Выбрано товаров: 19
