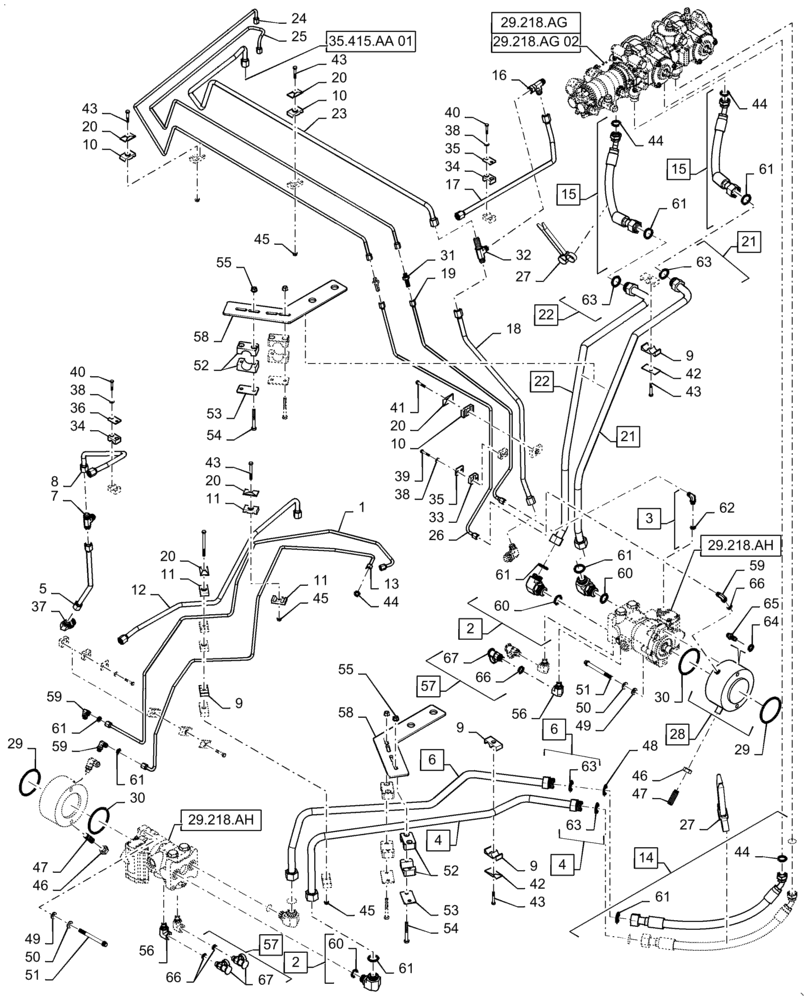

Запчасти Case IH WD1204 (29.204.AB) - DRIVE, HYDRAULIC SYSTEM, STANDARD (29) - HYDROSTATIC DRIVE

1

47381300

HYD TUBE

Right Brake

1шт.

2

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 60 - 61

4шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 62

2шт.

4

47425951

TUBE

RH 2-Speed Motor B Port, Incl 63

1шт.

5

47427706

HYD TUBE

RH 2-speed Motor Case Drain 2

1шт.

6

47425946

TUBE

RH 2-speed Motor A Port, Incl 63

1шт.

7

16985

TEE,7/8"-14, 37 Degree

1шт.

8

47427664

HYD TUBE

RH Header Case Drain 2-Speed

1шт.

9

86900725

CLAMP

Twing 1.00

2шт.

10

87000159

CLAMP

2 Hole 15.87-9.52 mm Dia Ribbed

1шт.

11

87000148

CLAMP

For Hyd Tubing

3шт.

12

47426230

HYD TUBE

RH 2-Speed Motor Case Drain

1шт.

13

47426238

HYD TUBE

RH 2-Speed Motor 2 Range

1шт.

14

47387393

HYDRAULIC HOSE

RH Ground Drive, Incl 61, 44

2шт.

15

47387394

HYDRAULIC HOSE

LH Ground Drive, Incl 61, 44

2шт.

16

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

17

47427666

HYD TUBE

LH Header Case Drain 2-Speed

1шт.

18

47426240

HYD TUBE

LH 2-Speed Motor Case Drain

1шт.

19

47426243

HYD TUBE

LH 2-Speed Motor 2 Range

1шт.

20

384870A1

PLATE

Hose Clamp Cover

4шт.

21

47580925

TUBE

LH 2-Speed Motor B Port, Incl 63

1шт.

22

47697288

TUBE

LH 2-Speed Motor A Port, Incl 63

1шт.

23

47360901

HYD TUBE

LH Motor Case Drain

1шт.

24

47360907

HYD TUBE

LH Motor 2 Range

1шт.

25

47360903

HYD TUBE

LH Brake

1шт.

26

47405226

HYD TUBE

LH Brake

1шт.

27

84386243

CLAMP,489mm L

2шт.

28

87631994

BRAKE ASSY.

Modular, Incl 64 - 65

2шт.

29

9840590

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

30

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

31

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

32

86625276

TEE

Bulk-HD Run 37FL-10

1шт.

33

87603907

CLAMP

Plastic .38

2шт.

34

87040663

CLAMP

Plastic

2шт.

35

87022336

PLATE

Clamp, Single SZ 1

2шт.

36

86900726

COVER

Clamp, Single, SZ 2

2шт.

37

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 60

2шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

39

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

40

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

4шт.

41

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

42

87000230

PLATE

Cover, Din 3015-Z-DP-3-W1-ZND

2шт.

43

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

5шт.

44

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

45

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

46

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

47

9825943

SENSOR

Magnetic

4шт.

48

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

49

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

50

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

4шт.

51

47644711

SCREW

1/2"-13 x 5mm

4шт.

52

87022323

CLAMP,25.4mm D Clamping Pipe

Hydraulic Tube

4шт.

53

86900727

COVER

Plate

4шт.

54

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

8шт.

55

9626558

FLANGE NUT,Flg, 1/4"-20

8шт.

56

47576544

UNION

Elbow

4шт.

57

86502603

COUPLING

Diagnostic, Incl 66 - 67

4шт.

58

47561737

BRACKET

Ground Drive Tube

2шт.

59

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 66

2шт.

60

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

61

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

62

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

63

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

64

87055272

KIT

O-Ring, Brake

1шт.

65

87055273

SCREW,5/16" x 1 17/64"

Bleeder

1шт.

66

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

67

86502603

COUPLING

Dust Cap

1шт.
