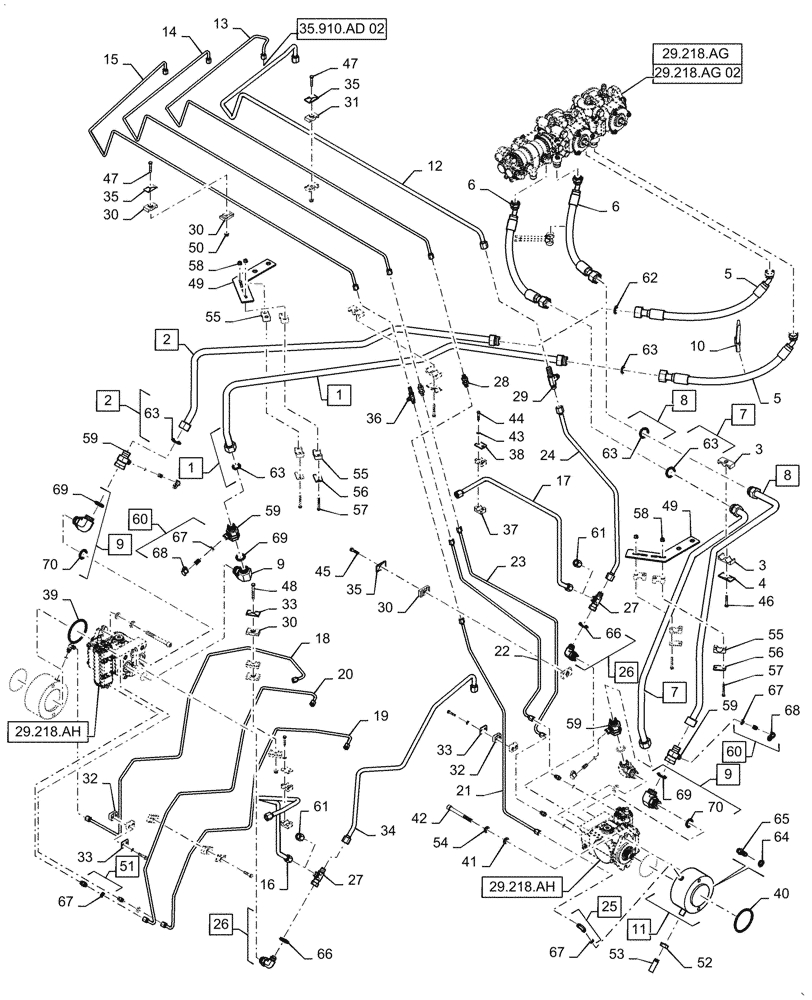

Запчасти Case IH WD1204 (29.204.AB) - DRIVE, HYDRAULIC SYSTEM, HIGH SPEED (29) - HYDROSTATIC DRIVE
№
Артикул
Название
Примечание
Количество
1
47580919
TUBE
RH 3-Speed Motor B Port, Incl 63
1шт.
2
47580921
TUBE
RH 3-Speed Motor A Port, Incl 63
1шт.
3
86900725
CLAMP
Twin 1.00
2шт.
5
47387393
HYDRAULIC HOSE
RH Ground Drive
2шт.
6
47387394
HYDRAULIC HOSE
LH Ground Drive
2шт.
7
47615741
TUBE
LH 3-Speed Motor Port A, Incl 63
1шт.
8
47615740
TUBE
LH Motor B Port, Incl 63
1шт.
9
9846955
90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB
90 Degree, Incl 69 - 70
4шт.
10
84386243
CLAMP,489mm L
2шт.
11
87631994
BRAKE ASSY.
Modular, Incl 64 - 65
2шт.
12
47360901
HYD TUBE
LH Motor Case Drain
1шт.
13
47360903
HYD TUBE
LH Brake
1шт.
14
47360907
HYD TUBE
LH Motor 2 Range
1шт.
15
47360909
HYD TUBE
LH 3-Speed Motor 3 Range
1шт.
16
47381296
HYD TUBE
RH Header Case Drain 3-Speed
1шт.
17
47381298
HYD TUBE
LH Header Case Drain 3-Speed
1шт.
18
47381300
HYD TUBE
RH Brake
1шт.
19
47381303
HYD TUBE
RH 2 Range 3-Speed
1шт.
20
47381305
HYD TUBE
RH 3 Range 3-Speed
1шт.
21
47405226
HYD TUBE
LH Brake
1шт.
22
47405227
HYD TUBE
LH 3-speed Motor 2 Range
1шт.
23
47405229
HYD TUBE
LH 3-Speed Motor 3 Range
1шт.
24
47405230
HYD TUBE
LH 3-Speed Motor Case Drain
1шт.
25
86512936
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
Incl 67
2шт.
26
84570
90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB
Incl 66
2шт.
27
86513011
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
2шт.
28
86513087
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
2шт.
29
86625276
TEE
Bulk-HD Run 37FL-10
1шт.
30
87000148
CLAMP
2 Hole 9.52-9.52 mm Dia Ribbed
5шт.
31
87000159
CLAMP
2 Hole 15.87-9.52 mm Dia Ribbed
1шт.
32
87603907
CLAMP
9.5 mm Dia Ribbed
2шт.
33
87022336
PLATE
Clamp, Single SZ 1
2шт.
34
47381294
HYD TUBE
RH Wheel Case Drain 3-Speed
1шт.
35
384870A1
PLATE
Hose Clamp Cover
5шт.
36
47456949
BULKHEAD
Union Tee .375 37 FL
1шт.
37
87040663
CLAMP
16 mm Dia Ribbed
2шт.
38
86900726
COVER
Clamp, Single, SZ 2
2шт.
39
9706914
O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro
2шт.
40
9840590
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
2шт.
42
47644711
SCREW
12 PT, 1/2-13 x 5.0 GR8 PLN, Serial Range: -YGG677045
4шт.
42
47973779
SCREW
, Start Serial: YGG677046
4шт.
Ref 54 Is Not Used With This Screw
1шт.
43
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
8шт.
44
280112
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
8шт.
45
88275
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
2шт.
46
9636711
BOLT,Hex, 5/16 - 18" x 2", Gr 5
2шт.
48
87626
BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5
1шт.
49
47561737
BRACKET
Ground Drive Tube
2шт.
50
86521605
FLANGE NUT,5/16"-18, Cl 5
3шт.
51
84384
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
Incl 67
4шт.
52
87313
JAM NUT,Jam, 3/4"-16, G2
2шт.
54
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
1/2"
4шт.
55
87022323
CLAMP,25.4mm D Clamping Pipe
Hydraulic Tube
4шт.
56
86900727
COVER
Plate
4шт.
58
9626558
FLANGE NUT,Flg, 1/4"-20
8шт.
59
47581891
TEE
Diagnostic Port
4шт.
60
86502603
COUPLING
Diagnostic, Incl 67 - 68
4шт.
61
129200
CAP,7/8" - 14 JIC
1шт.
64
87055272
KIT
O-Ring, For Brake
2шт.
65
87055273
SCREW,5/16" x 1 17/64"
Bleeder, For Brake
2шт.
66
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
2шт.
67
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
8шт.
69
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
4шт.
Выбрано товаров: 72
