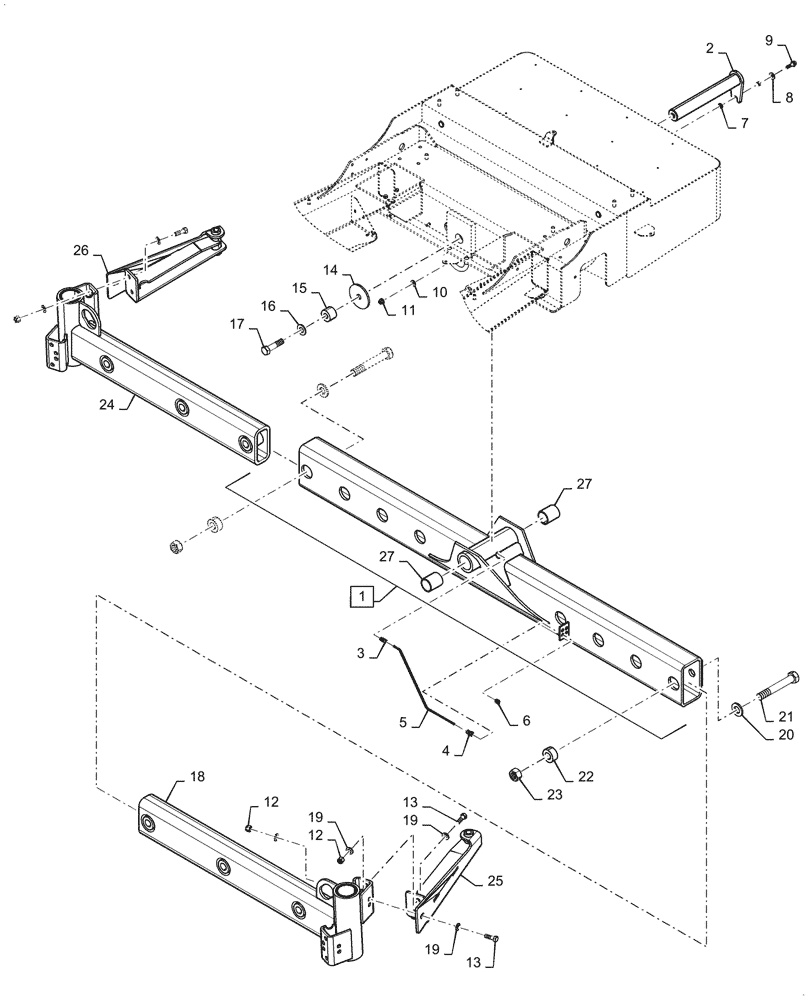

Запчасти Case IH WD1204 (27.550.AJ[01]) - FIXED REAR SUSPENSION, ASN YGG677501 (27) - REAR AXLE SYSTEM

1

86595968

AXLE

Red

1шт.

1

86626614

AXLE

Gray

1шт.

2

84274597

SHAFT

1шт.

3

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

4

646429

HYD CONNECTOR

1шт.

5

86596659

TUBE,4.76 mm OD x 335, 163.2 mm L

1шт.

6

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

7

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

9

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

12

88871

NUT,1/2"-13, GC

6шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

14

86502976

WASHER

1шт.

15

84276867

SPACER

1шт.

16

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

17

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

18

47965401

EXTENSION

LH

1шт.

19

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

12шт.

20

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

4шт.

21

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

22

87052311

SPACER

4шт.

23

9849633

NUT,1"-8, G5

4шт.

24

47965494

EXTENSION

RH

1шт.

25

47965035

MOUNT

LH Axle, Shimmy Damper

1шт.

26

47965030

MOUNT

RH Axle, Shimmy Damper

1шт.

27

87650300

BUSHING,44.68mm ID x 50.93mm OD x 63.5mm L

Incl In Ref 1

1шт.
