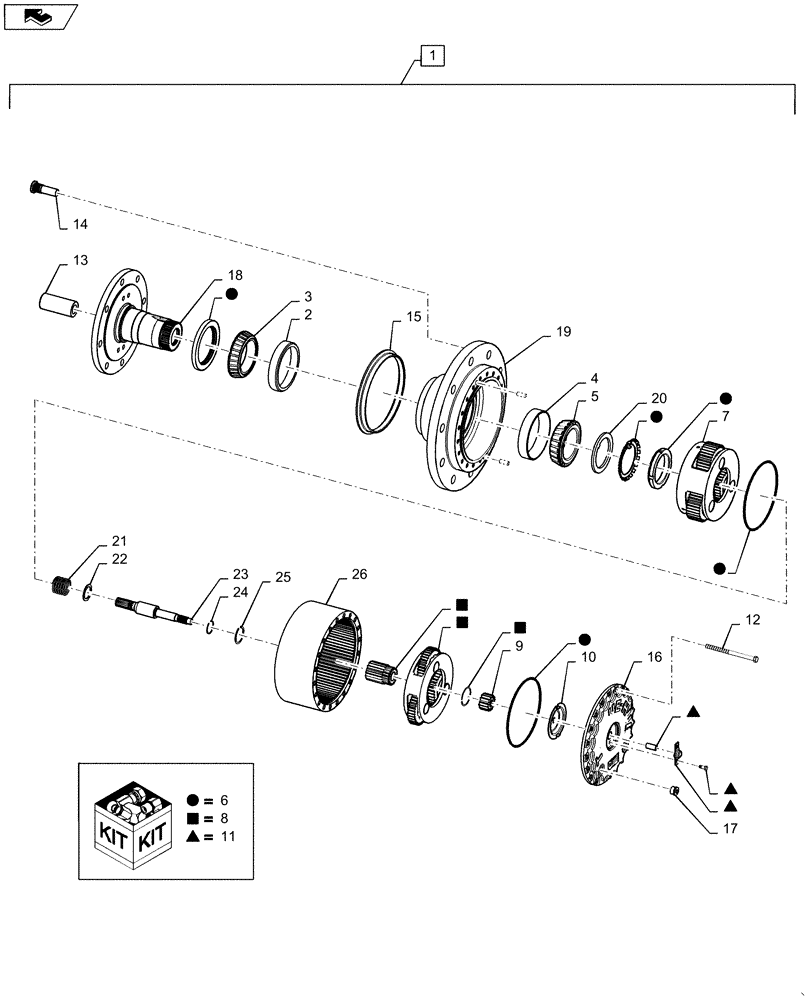

Запчасти Case IH WD1204 (25.108.AB[02]) - PLANETARY GEAR, GEARBOX, HIGH SPEED (25) - FRONT AXLE SYSTEM

1

84332941

GEARBOX

Planetary, High Speed, Incl 1 - 26

1шт.

2

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

3

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

4

9617935

BEARING CUP,130 mm OD x 28.5 mm

1шт.

5

147216

ROLLER BEARING,79.98mm ID x 34mm W

1шт.

6

84291411

SEAL KIT

Planetary Gearbox Seals

1шт.

7

84291703

KIT

Output Stage

1шт.

8

47453976

PLANETARY GEAR

Input Stage

1шт.

9

47453988

SUN GEAR

Planetary Input

1шт.

10

84291739

SUPPORT

Thrust Cap Support

1шт.

11

84291743

KIT

Planetary Disengage

1шт.

12

9849451

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 8

20шт.

13

84291751

SPLINED COUPLING,13T

Splined, Planetary Input

1шт.

14

84427937

STUD

3/4-16 x 1.52

10шт.

15

84473177

SEAL PROTECTION

Flange Boot

1шт.

16

84291795

SUPPORT

Planetary Cover

1шт.

17

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

18

84578774

SPINDLE

1шт.

19

84578804

HOUSING

1шт.

20

84578819

WASHER

FL-TGD

1шт.

21

84578918

SPRING,Gearbox

Spring

1шт.

22

84578924

WASHER

Thrust

1шт.

23

47453979

SHAFT

Input

1шт.

24

84488092

CIRCLIP

No.125 1.156 Dia.

1шт.

25

66967

SNAP RING,1.75", Int, #175

1шт.

26

84578932

GEAR

Ring

1шт.
