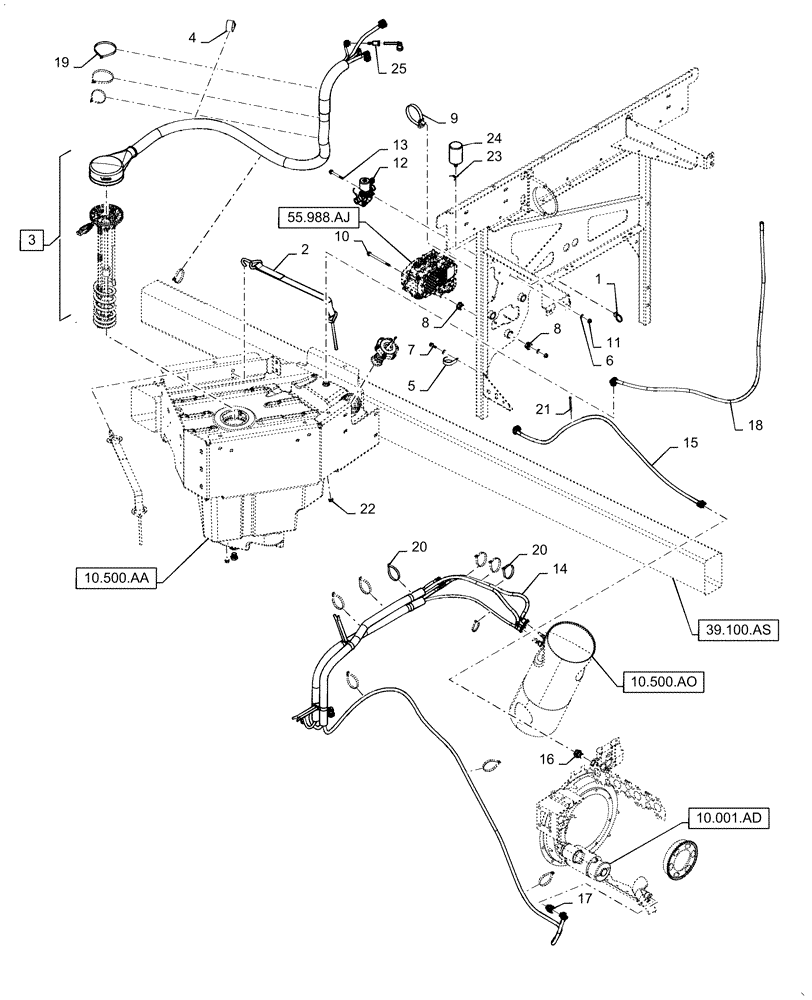

Запчасти Case IH WD1204 (10.500.AD[01]) - DEF/ADBLUE LINES (10) - ENGINE

1

82033028

CABLE TIE,170mm L

Cable Tie

1шт.

2

47391768

STRAP

Securing

2шт.

3

47411182

CABLE

Suction Bundle, Incl 25

1шт.

4

86639007

CLAMP,44.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

5

87301688

CLAMP,41.2mm, Coat, P Type

Hose Bundle

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

8

2855150

INSULATOR BLOCK

Rubber

6шт.

9

84266055

PLASTIC

Tie Wrap

1шт.

10

86705432

FLANGE BOLT,Hex, M8 x 120mm, Cl 10.9

M8 x 120mm

3шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

12

84483089

HEATER,12V

Valve

1шт.

13

87656138

BOLT,M8 x 78.1mm, Cl 10.9

M8 x 70mm

3шт.

14

47512680

CABLE

Pressure/Return Bundle

1шт.

15

47512673

HOSE

Coolant Supply Line

1шт.

16

47612415

ADAPTER

3/4" NTPF

1шт.

17

47441450

ADAPTER

M18

1шт.

18

47538825

HOSE

Vent Line

1шт.

19

84266050

CABLE TIE,384mm L, Polyamide

Strap

3шт.

20

14568387

HOSE CLIP

Cable Tie

17шт.

21

86566989

CABLE TIE,208mm L

1шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

23

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

24

47437399

FUEL FILTER

Tank Vent

1шт.

25

47660000

FILTER, DEF

Suction Line, Incl with 3

1шт.
