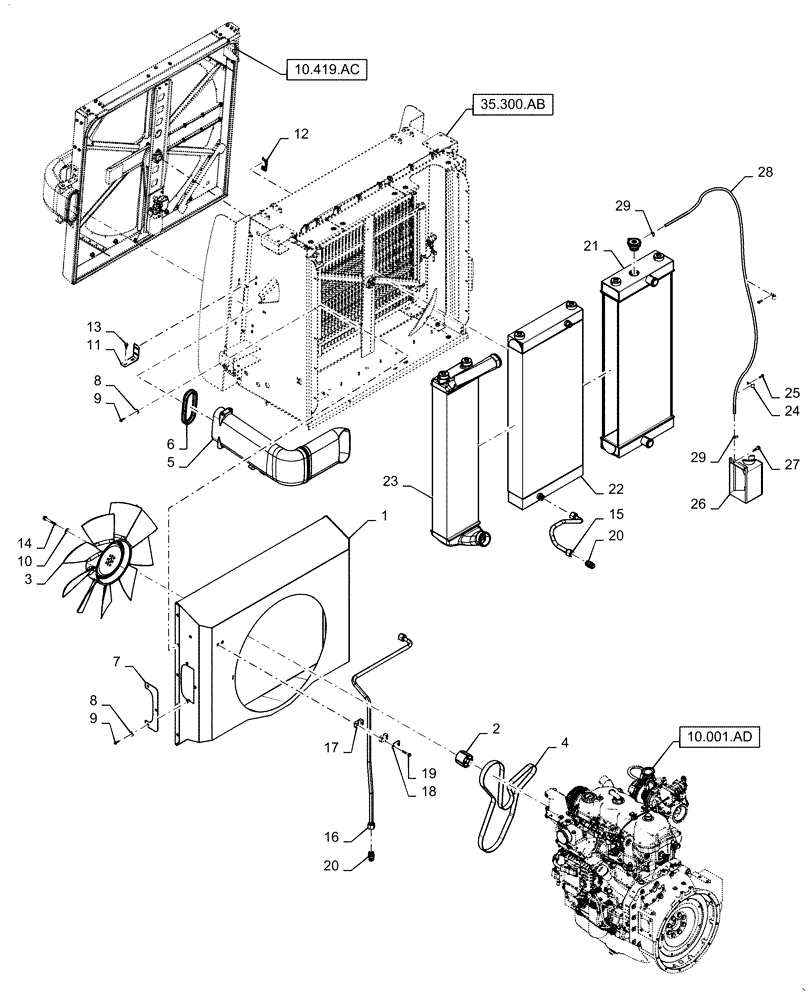

Запчасти Case IH WD1204 (10.400.BE) - RADIATOR & RELATED PARTS (10) - ENGINE

1

47624343

FAN

Shroud

1шт.

2

47535846

SPACER

Fan

1шт.

3

47661050

FAN

4 Cylinder

1шт.

4

47535288

V-BELT

Drive

1шт.

5

47615751

DUCT

Fan Shroud

1шт.

6

47490204

SEAL

Duct

1шт.

7

47505232

SHROUD

Duct Filler

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

13шт.

9

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

13шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

47618578

BRACKET

Duct Support

2шт.

12

47656939

NUT

Sheet Metal

2шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

14

87698842

BOLT,Hex, M10 x 80mm, Cl 10.9

Flange

4шт.

15

47614890

TUBE

Hydraulic, Oil Cooler Return

1шт.

16

47633146

TUBE

Hydraulic, Oil Cooler Supply

1шт.

17

86900723

CLAMP

Hydraulic Tube

1шт.

18

86900727

COVER

Plate

1шт.

19

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

21

47524116

RADIATOR

Engine

1шт.

21a

87749607

RADIATOR CAP,13 PSI

Engine

1шт.

22

47524118

OIL COOLER

Hydraulic

1шт.

23

47524119

OIL COOLER

Charge Air

1шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

25

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

26

86509554

TANK

Coolant Recovery

1шт.

27

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

2шт.

28

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Coolant Overflow

1шт.

29

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.
