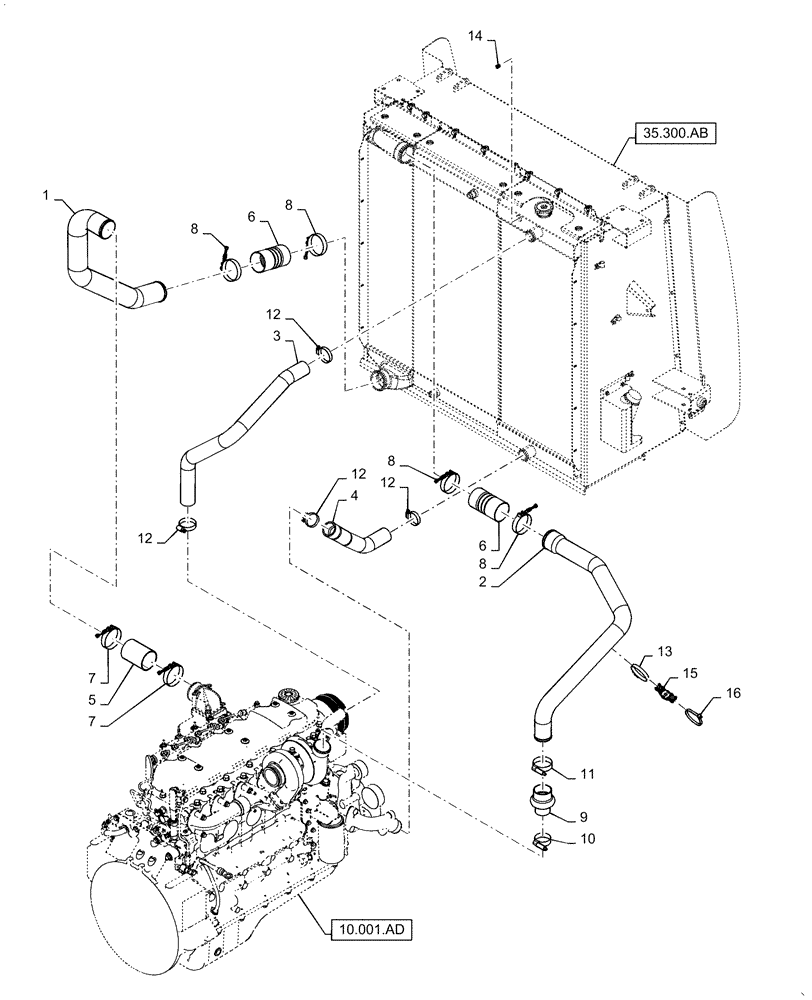

Запчасти Case IH WD1204 (10.310.AE) - INTERCOOLER LINE (10) - ENGINE

1

47628109

TUBE

Lower, CAC

1шт.

2

47517282

TUBE

Upper, CAC

1шт.

3

47517279

HOSE

Upper, Radiator

1шт.

4

47517278

HOSE

Lower, Radiator

1шт.

5

86623661

FLEXIBLE HOSE,76.20 mm ID x 110.00 mm, SAE J20 Class A

Intercooler, Inlet

1шт.

6

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air

2шт.

7

87421230

CLAMP,82.55mm - 90.42mm

CAC Hose

2шт.

8

87041091

HOSE CLAMP,3.06" - 3.37"

CAC

4шт.

9

9848337

HOSE,50.8 mm ID, 63.50 mm ID x 101.60 mm

Intercooler, Outlet

1шт.

10

86014158

HOSE CLIP

Outlet Lower

1шт.

11

86014159

HOSE CLIP

Outlet Upper

1шт.

12

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

Radiator

4шт.

13

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

Support

1шт.

14

87752089

PLUG,Hex, 1/4" - 18 NPTF

Radiator

1шт.

15

84360209

BASE

1шт.

16

529070

CABLE TIE,368.3mm L

1шт.
