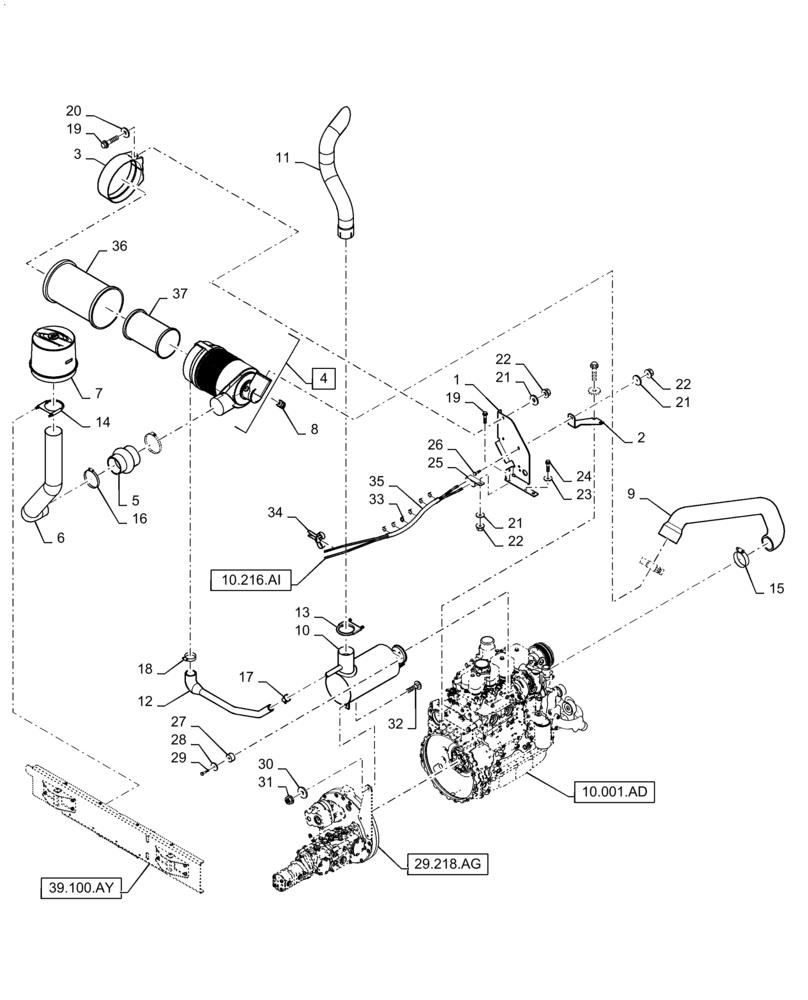

Запчасти Case IH WD1204 (10.254.AI) - AIR CLEANER & EXHAUST (10) - ENGINE

1

47629248

SUPPORT

Air Cleaner

1шт.

2

87025864

SUPPORT ASSY.

Engine

1шт.

3

87047322

BRACKET

Air Cleaner, 10"

1шт.

4

87047326

AIR CLEANER

Incl 37 - 38

1шт.

5

87047481

HOSE,101.6 mm ID, 114.3 mm ID x 152.4 mm, SAE J200 3CA 710

Reducer

1шт.

6

47517276

TUBE

Air Intake

1шт.

7

47507537

CLEANER

Pre

1шт.

8

87013666

SWITCH,Air Filter Restriction

Pressure

1шт.

9

87366633

FLEXIBLE HOSE

Cleaner to Muffler

1шт.

10

87683534

MUFFLER,Aspirated

4 Cylinder

1шт.

11

47517277

PIPE

Tail

1шт.

12

86974109

HOSE,25.40 mm ID, 50.80 mm ID x 875.00 mm, SAE J200

1шт.

13

86511573

CLAMP,3-5/8”

3 5/8"

1шт.

14

131539

CLAMP

Exhaust

1шт.

15

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

16

9706924

HOSE CLAMP,103.1mm - 127mm

3шт.

17

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

18

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

19

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

20

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

24

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

25

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Closed, Insulated

1шт.

26

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

3шт.

28

80681

LOCK WASHER,5/16"

3шт.

29

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

31

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

32

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

33

529070

CABLE TIE,368.3mm L

6шт.

34

84484346

STRAP,328mm L

Dual Tie

1шт.

35

87580075

CONDUIT

5/8"

1шт.

36

8602985

FILTER, ELEMENT

Primary, Incl with 4

1шт.

37

8602986

FILTER, ELEMENT

Secondary, Incl with 4

1шт.
