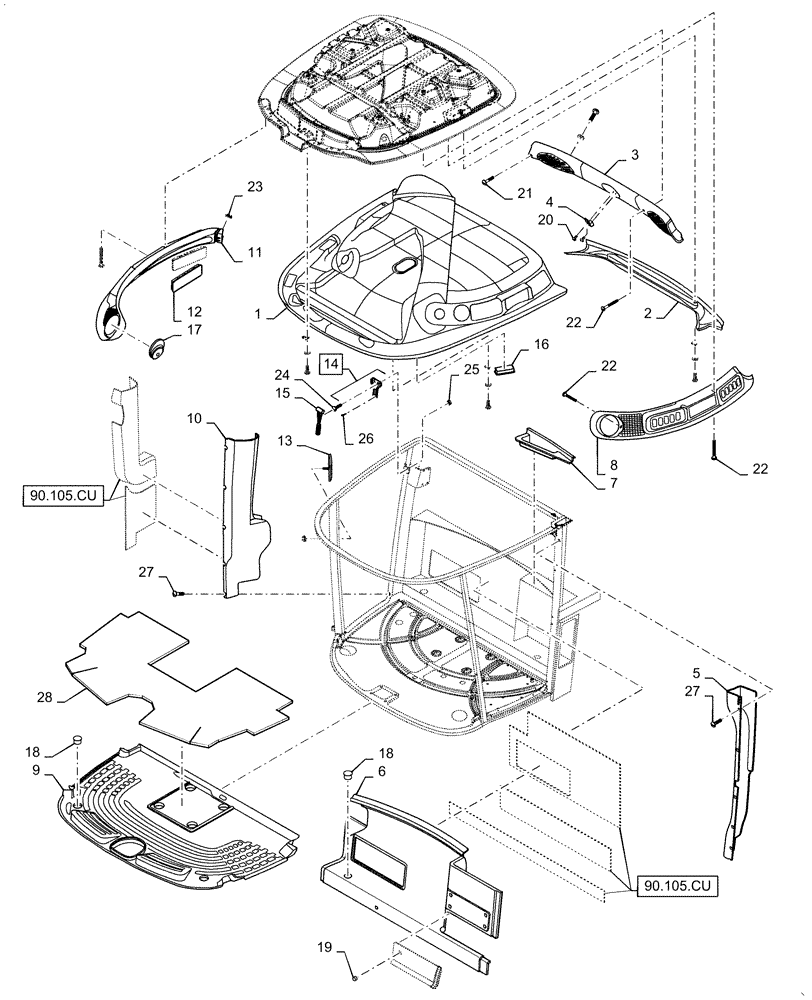

Запчасти Case IH WD1204 (90.160.AX[01]) - CAB, INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47595138

HEADLINER

Wheat

1шт.

2

86977360

LINER

Rear, Wheat

1шт.

3

86995944

PANEL

Rear, Upper

1шт.

4

86520824

HOOK

Coat

1шт.

5

87043706

COVER

LH B Pillar

1шт.

6

47539439

COVER ASSY

Rear Wall, Wheat

1шт.

7

87029703

TRAY ASSY.

Wheat

1шт.

8

86995945

PANEL

LH

1шт.

9

87043710

MAT

Floor

1шт.

10

87043704

LINER

RH Trim Panel, Wheat

1шт.

11

86995946

PANEL

Rear Upper

1шт.

12

87105189

COVER

Radio Opening

2шт.

13

86011713

REAR VIEW MIRROR

Cab

1шт.

14

9507313

HOLDER

Fire Hammer, Incl 26

1шт.

15

9507312

HAMMER

Fire

1шт.

16

87281670

VENT

Black Louver

8шт.

17

84059804

GRILLE

A/C

2шт.

18

84067943

PLUG,M52

3шт.

19

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

20

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

21

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

22

84439080

BOLT,Phillips Drive, Flat HD, M6 x 1 x 57mm, Cl 4.8

7шт.

23

86014250

SPRING NUT,M6 x 1.0

4шт.

24

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

25

86508812

NUT,M3, Cl 8

2шт.

26

NSS

NOT SOLD SEPARAT

Wire, Incl In 14

1шт.

27

84320280

PLUG

Cap

10шт.

28

87053280

1шт.
