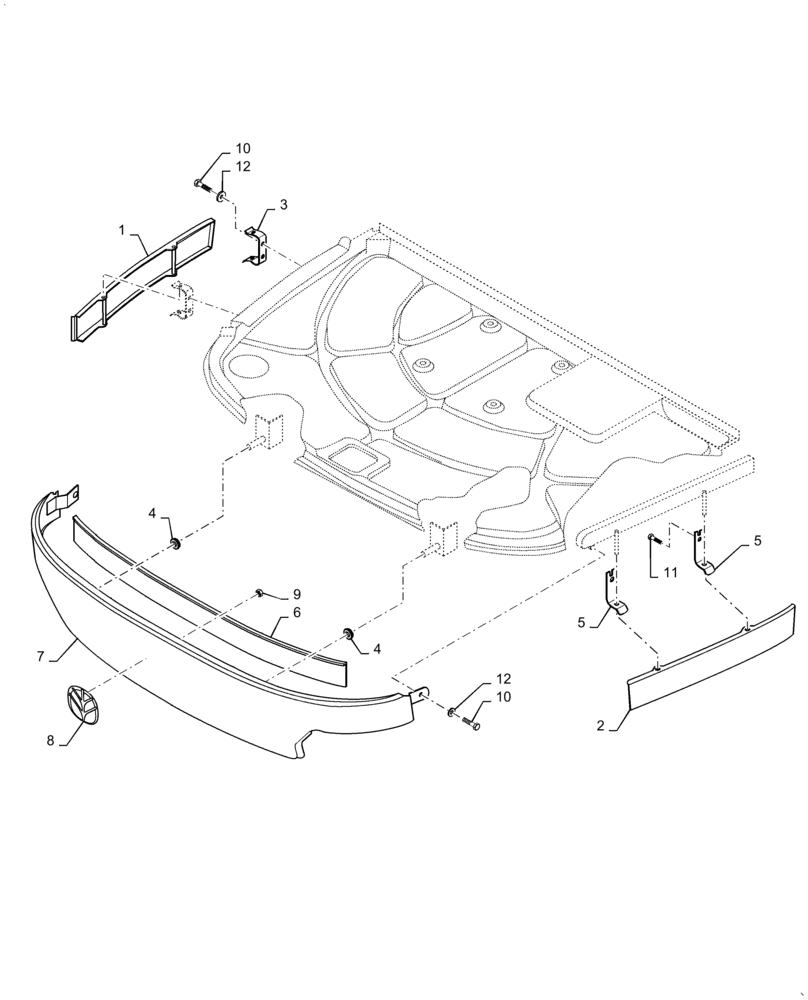

Запчасти Case IH WD1204 (90.100.AU[04]) - PANEL, SKIRT ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87026104

SKIRT

RH

1шт.

3

87026096

SPRING CLIP

2шт.

4

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

2шт.

5

87048477

SPRING CLIP

2шт.

6

87357982

SEAL

FLAP

3.5шт.

7

84558411

PANEL

CAB SKT

1шт.

9

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

10

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

11

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

4шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.
