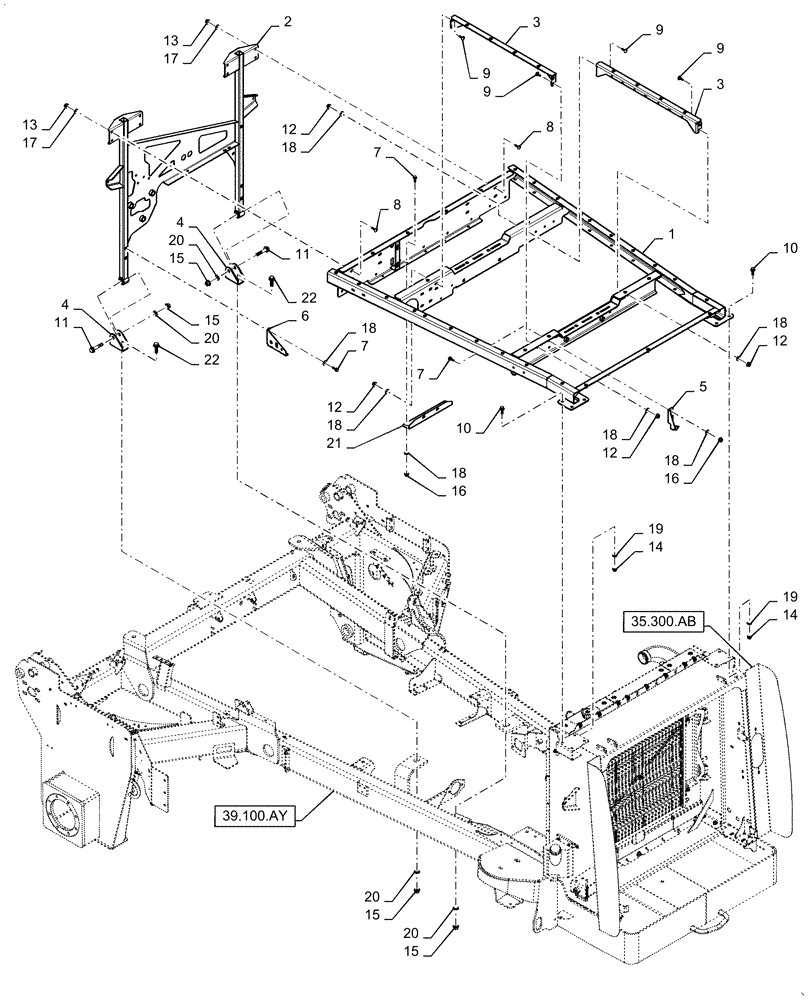

Запчасти Case IH WD1204 (90.100.AU[02]) - CENTER SUPPORT FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47610818

SUPPORT

Top

1шт.

2

47610821

SUPPORT

Front

1шт.

3

47610825

SUPPORT

Hood

2шт.

4

47643322

BRACKET

RH

2шт.

5

47597606

BRACKET

Intake Tube

1шт.

6

47534004

SUPPORT

Horn

1шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

9шт.

8

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

9

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

8шт.

10

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

8шт.

11

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

20

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

21

47626980

SUPPORT

Bracket

1шт.

22

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.
