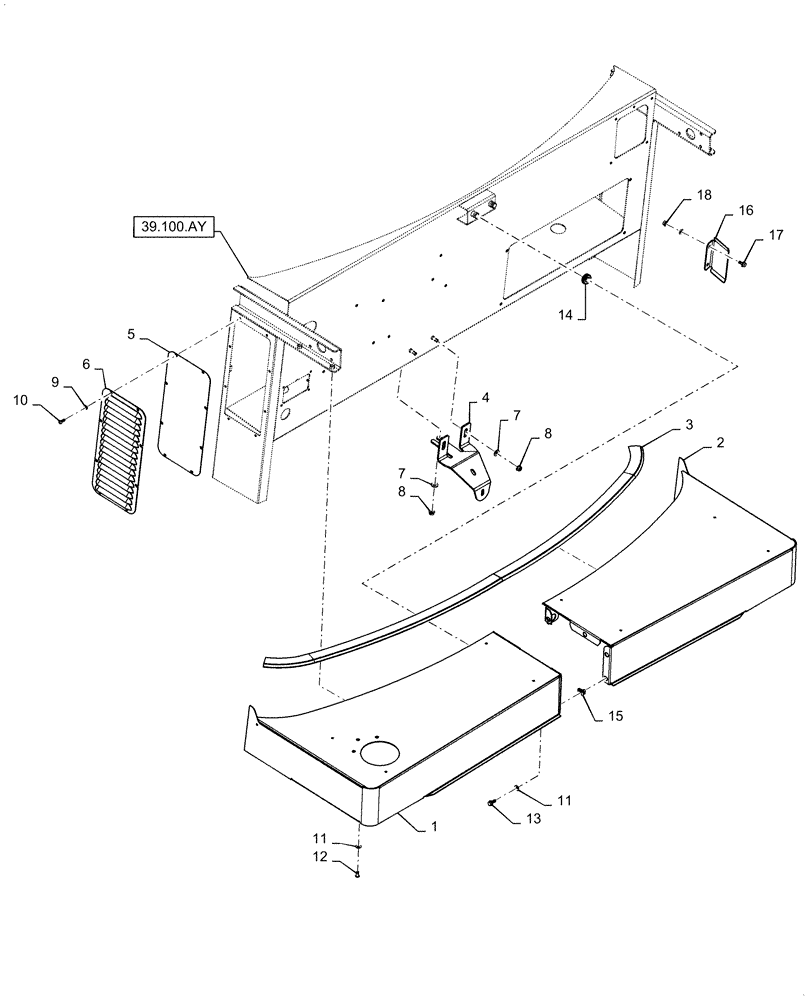

Запчасти Case IH WD1204 (90.100.AU[01]) - HOOD SHIELD, FRONT, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47551294

WRAPPER

LH Assy

1шт.

2

47551279

WRAPPER

RH Assy

1шт.

3

87019591

SEALING STRIP

Trim, Seal

1шт.

4

87031968

SUPPORT

1шт.

5

87028912

SCREEN

1шт.

6

87028913

PANEL

Louver Assy

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.

9

87033202

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

10

86631227

SCREW,Pan, 1/4" x 3/4"

8шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

12

87027009

CAPSCREW,Button Hd, 5/16" x 0.75"

4шт.

13

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

2шт.

15

9626645

NUT

5/16-18 U-Type

4шт.

16

47691769

BRACKET

Right Door

2шт.

17

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
