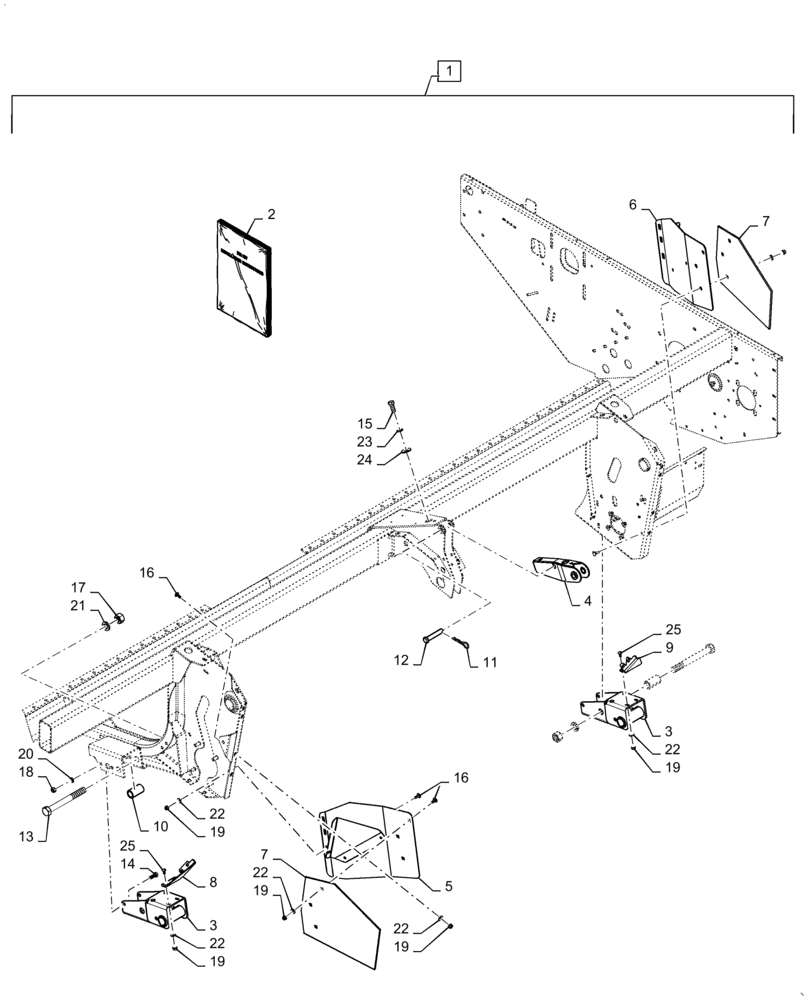

Запчасти Case IH WD1204 (88.100.58[04]) - DIA KIT, SICKLE HEADER LIFT ARM EXTENSION (88) - ACCESSORIES

1

439105006

KIT

Sickle Header Lift Arm Extension, Incl 2 - 25

1шт.

2

47698297

INSTRUCTION

Lift Arm Extension

1шт.

3

47583097

EXTENSION

Lower

2шт.

4

47583113

EXTENSION

Top

1шт.

5

47680849

DEFLECTOR

LH

1шт.

6

47686108

DEFLECTOR

RH

1шт.

7

84272225

SHIELD

2шт.

8

47645187

SUPPORT

LH

1шт.

9

47707674

SUPPORT

RH

1шт.

10

86627927

SPACER

2шт.

11

86000109

COTTER PIN

1шт.

12

84206494

PIN,19.05mm OD x 108.07mm L

Headed

1шт.

13

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

2шт.

14

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

15

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

16шт.

17

9849633

NUT,1"-8, G5

2шт.

18

280431

NUT,1/2"-13, G5

4шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

24шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

23

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

24

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

25

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.
