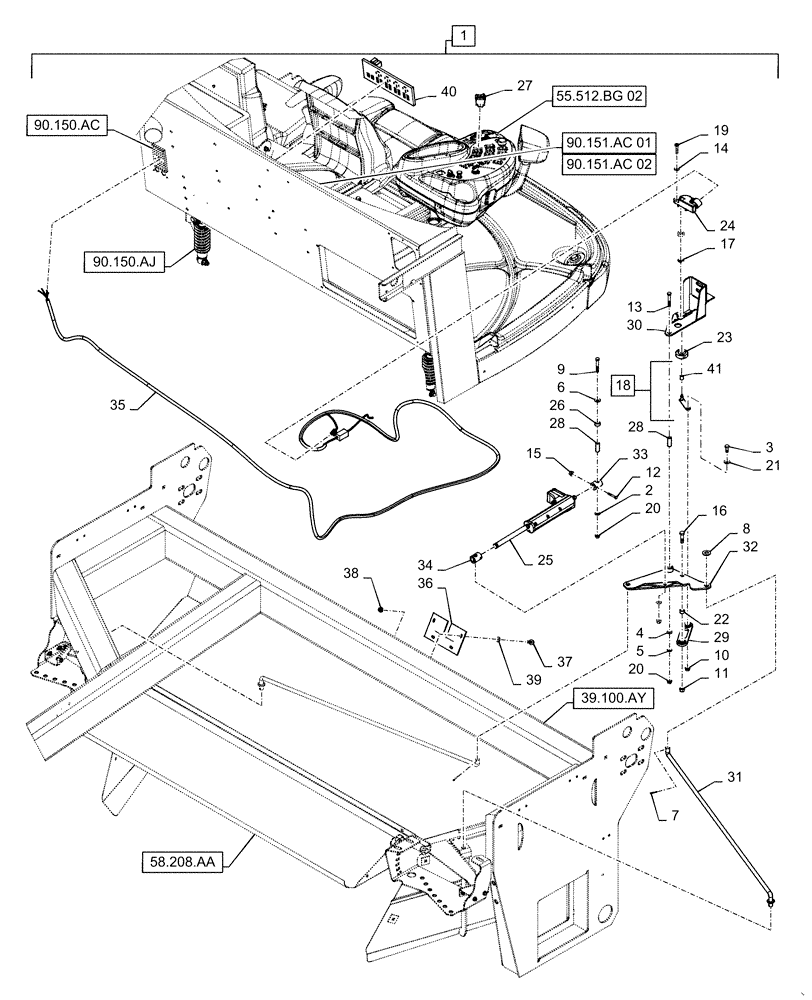

Запчасти Case IH WD1204 (88.100.58[02]) - DIA, KIT, IN-CAB ADJUSTABLE WINDROW SHIELD (88) - ACCESSORIES

1

47658591

KIT

DIA, Adjustable Windrow Shields, Incl 1A

1шт.

1a

47658591

KIT

Adjustable Windrow Shields, Incl 2 - 41

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Incl with 1

3шт.

3

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

Incl with 1

1шт.

4

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Incl with 1

1шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

Spring, Incl with 1

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

Incl with 1

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

Incl with 1

2шт.

8

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

Incl with 1

2шт.

9

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Incl with 1

2шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

Incl with 1

1шт.

11

100038

NUT,M12 x 1.75, Cl 8

Incl with 1

1шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

Incl with 1

2шт.

13

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

Incl with 1

1шт.

14

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

Incl with 1

2шт.

15

9626558

FLANGE NUT,Flg, 1/4"-20

Incl with 1

2шт.

16

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

Incl with 1

1шт.

17

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

Incl with 1

1шт.

18

87362420

MOUNT

Incl 41, Incl with 1

1шт.

19

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

Incl with 1

2шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

Incl with 1

3шт.

21

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Incl with 1

1шт.

22

86635011

BUSHING

Incl with 1

1шт.

23

86974816

SHAFT

Incl with 1

1шт.

24

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Incl with 1

1шт.

25

87010516

ACTUATOR

Linear, Incl with 1

1шт.

26

87020989

SPACER

Plated, Incl with 1

2шт.

27

87023839

WINDSHIELD WIPER SWI

Windrow Shields, Incl with 1

1шт.

28

87024378

SPACER

Incl with 1

3шт.

29

87056981

DRAG LINK

Incl with 1

1шт.

30

87031547

MOUNTING PARTS

Assy, Incl with 1

1шт.

31

87031550

ROD

Incl with 1

2шт.

32

47504938

ARM

Assy, Incl with 1

1шт.

33

87031553

SPACER

Incl with 1

1шт.

34

87031873

SPACER

Incl with 1

1шт.

35

84515766

WIRE HARNESS

WS, Incl with 1

1шт.

36

87358009

SEAL

Incl with 1

1шт.

37

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

Incl with 1

4шт.

38

86624020

FLANGE NUT,Flg, 1/4"-20.G5

Incl with 1

4шт.

39

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

Incl with 1

4шт.

40

86509590

RELAY

20A, Incl with 1

2шт.

41

86509761

BUSHING

Incl with 1, 18

1шт.
