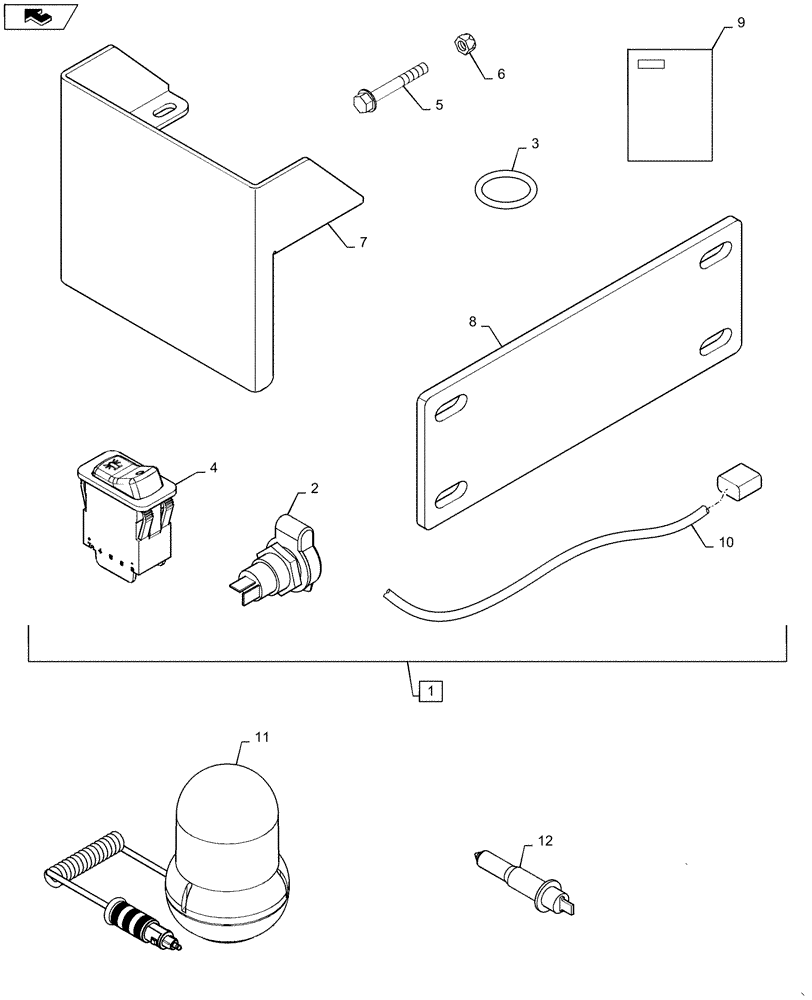

Запчасти Case IH WD1204 (88.100.55[02]) - DIA BEACON MOUNT KIT (88) - ACCESSORIES

1

87027859

DIA KIT, HARVESTER

DIA, Incl 2 - 10

1шт.

2

82002966

POWER SOCKET,M18 x 1

1шт.

3

82016322

O-RING,3.53mm Thk x 15.47mm ID

Seal, Socket, Beacon

1шт.

4

84320234

BEACON SWITCH

1шт.

5

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

4шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

7

87020040

SUPPORT

1шт.

8

87020041

PLATE

1шт.

9

87032443

INSTRUCTION

1шт.

10

87041198

HARNESS

1шт.

11

73328580

BEACON,12-24V, Amber

Not Supplied W/ DIA

1шт.

12

86616248

BULB,H1, 12V, 55W

Service Bulb For Ref 11

1шт.
