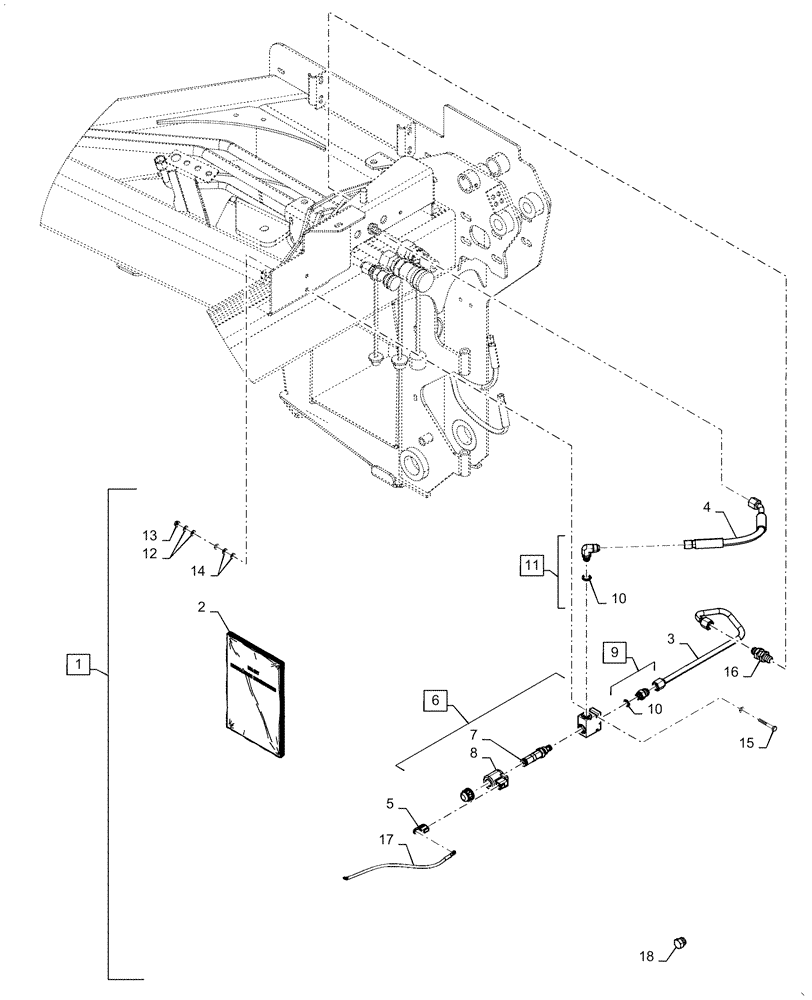

Запчасти Case IH WD1204 (88.100.35[05]) - DIA KIT, DRAPER HEAD CONVERSION, BSN YEG675001 (88) - ACCESSORIES

1

47599214

KIT

Incl 2 - 18

1шт.

2

47509659

INSTRUCTION

MY14, Draper Adapter

1шт.

3

47597318

TUBE

1шт.

4

47597449

HOSE

1шт.

5

84391159

WIRE CONNECTOR

1шт.

6

84563959

MANIFOLD

Assy, Incl 7 - 8

1шт.

7

84300100

CARTRIDGE

1шт.

8

84300102

COIL

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 10

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 10

1шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

14

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

10шт.

15

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

16

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

17

47592688

WIRE HARNESS

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.
