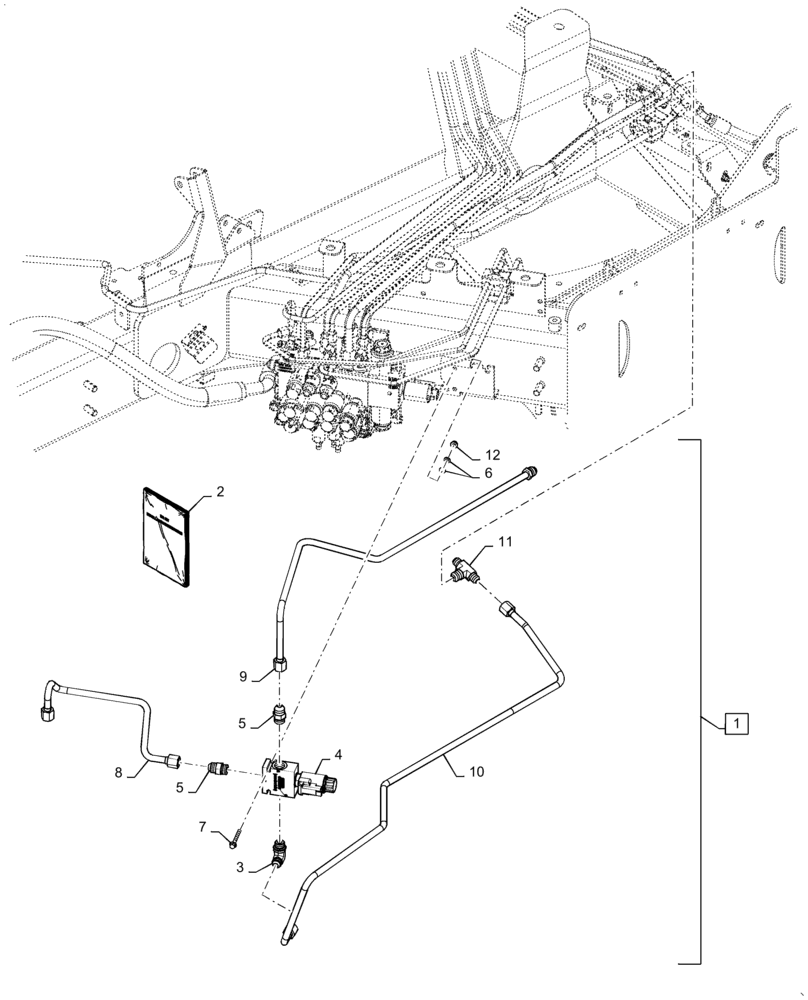

Запчасти Case IH WD1204 (88.100.35[03]) - DIA KIT, LIFT ARM POWER DOWN, NON-DRAPER ONLY (88) - ACCESSORIES

1

47710884

KIT

DIA, Lift Arm Power Down, 4 Cyl, Non-Draper Only, Incl 2 - 12

1шт.

2

47714365

INSTRUCTION

Lift Arm Power Down

1шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

1шт.

4

47652489

VALVE

Solenoid, 2P, 3 - Way

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

2шт.

6

86624137

WASHER,0.27" ID x 0.5" OD x 0.06" Thk

4шт.

7

87610715

BOLT

Flange

2шт.

8

47668662

TUBE

Hydraulic, Combined LIft

1шт.

9

47668664

TUBE

Hydraulic, Lift Cap Hay

1шт.

10

47681887

TUBE

Hydraulic, Charge Power Down

1шт.

11

87032909

HYD CONNECTOR

1шт.

12

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
