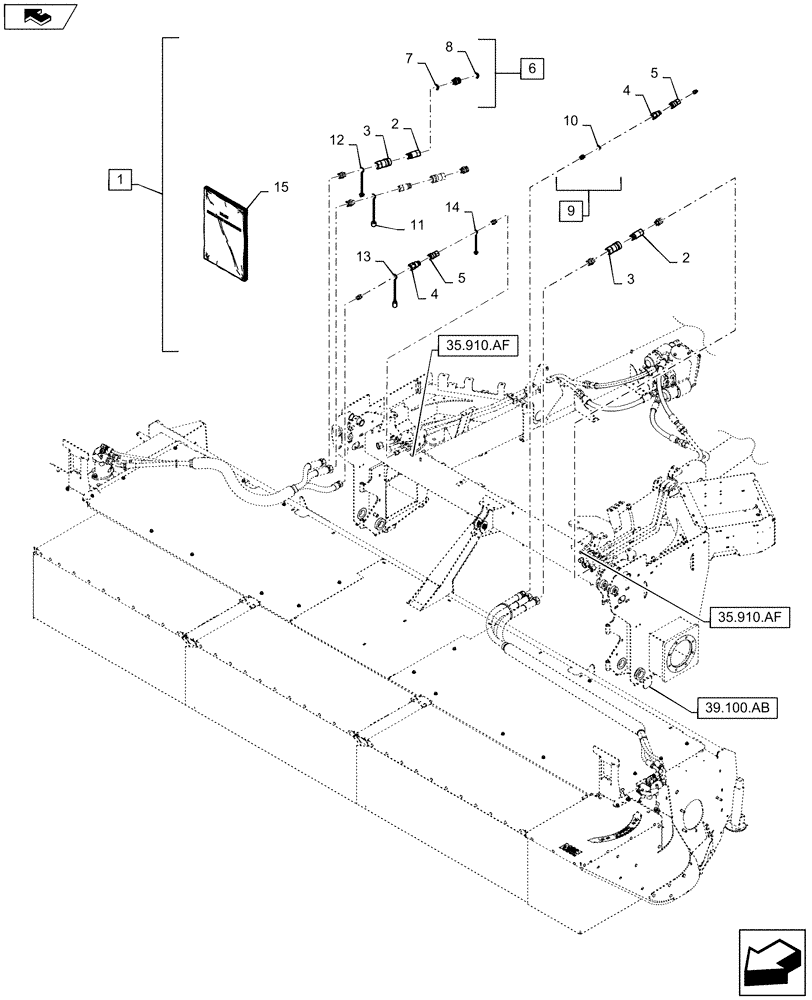

Запчасти Case IH WD1204 (88.100.35[01]) - DIA KIT, ADDITIONAL PRODUCTS, QUICK COUPLER, POPPET STYLE, DISC HEADER (88) - ACCESSORIES

1

47510963

SERVICE KIT

Poppet Couplers, Disc Head, Incl 2 - 15

1шт.

2

9820148

COUPLING,1-1/16" - 12

Male

4шт.

3

86564734

COUPLING

Female

4шт.

4

87037008

QUICK MALE COUPLING

Male

2шт.

5

87037009

COUPLING, QUICK, FEM

1/2 Female Quick Disconnect

2шт.

6

9840329

HYD CONNECTOR

1.0 x 75A, Incl 7 - 8

8шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

9

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 10

4шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Reducer, 5/8 Male x 1/2 Female ORB (Used On MY13 And Prior Years Only)

2шт.

11

87036367

DUST CAP

0.75", Black

4шт.

12

87036366

DUST CAP

0.75", Black

4шт.

13

86621124

DUST CAP

Black

2шт.

14

87036368

DUST CAP

0.50", Black

2шт.

15

47526689

INSTRUCTION

1шт.
