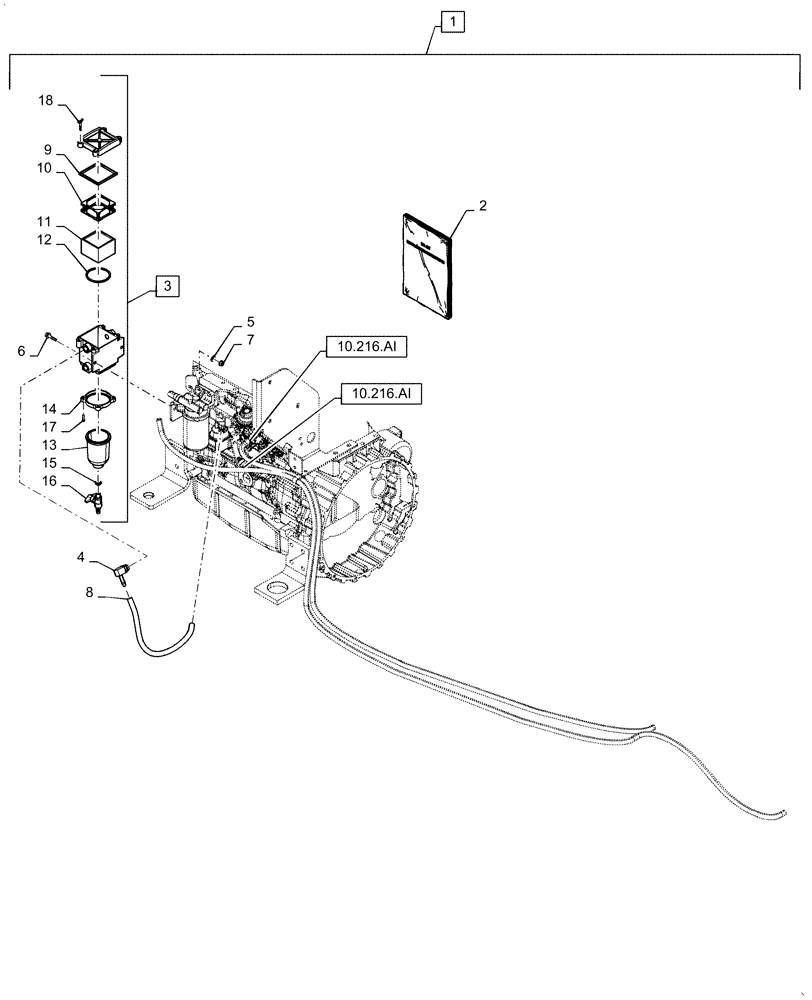

Запчасти Case IH WD1204 (88.100.10[01]) - DIA KIT, FUEL FILTER (88) - ACCESSORIES

1

47650145

KIT

Separator Fuel Filter, Incl 2 - 18

1шт.

2

47665497

INSTRUCTION

Separator Filter, Incl with 1

1шт.

3

87346728

FUEL FILTER

Water Separator, Incl 9 -18, Incl with 1

1шт.

4

217-341

FITTING,90 Degree Elbow, 3/8" Hose Barb x 3/4" - 16 Male ORB

Stem, Incl with 1

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Incl with 1

2шт.

6

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

Incl with 1

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Incl with 1

2шт.

8

86516356

FUEL HOSE,0.38" ID, SAE 30R7

1.4', Incl with 1

1шт.

9

336432A1

GASKET

Top Lid Fuel Strainer, Inc with 1, 3

1шт.

10

336431A1

FRAME

Filter Spring, Incl with 1, 3

1шт.

11

336430A1

FUEL FILTER

Strainer, 30 Micron, Inc with 1, 3

1шт.

12

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

Fuel Strainer Bowl, Inc with 1, 3

1шт.

13

369842A1

FILTER BOWL

Filter Housing, Incl with 1, 3

1шт.

14

369841A1

RETAINER

Ring, Incl with 1, 3

1шт.

15

369843A1

O-RING,2.5mm Thk x 10.5mm ID

Incl with 1, 3

1шт.

16

369844A1

DRAINCOCK/TAP SUPPLY

Incl with 1, 3

1шт.

17

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

Incl with 1, 3

4шт.

18

87625617

THUMB SCREW

Incl with 1, 3

4шт.
