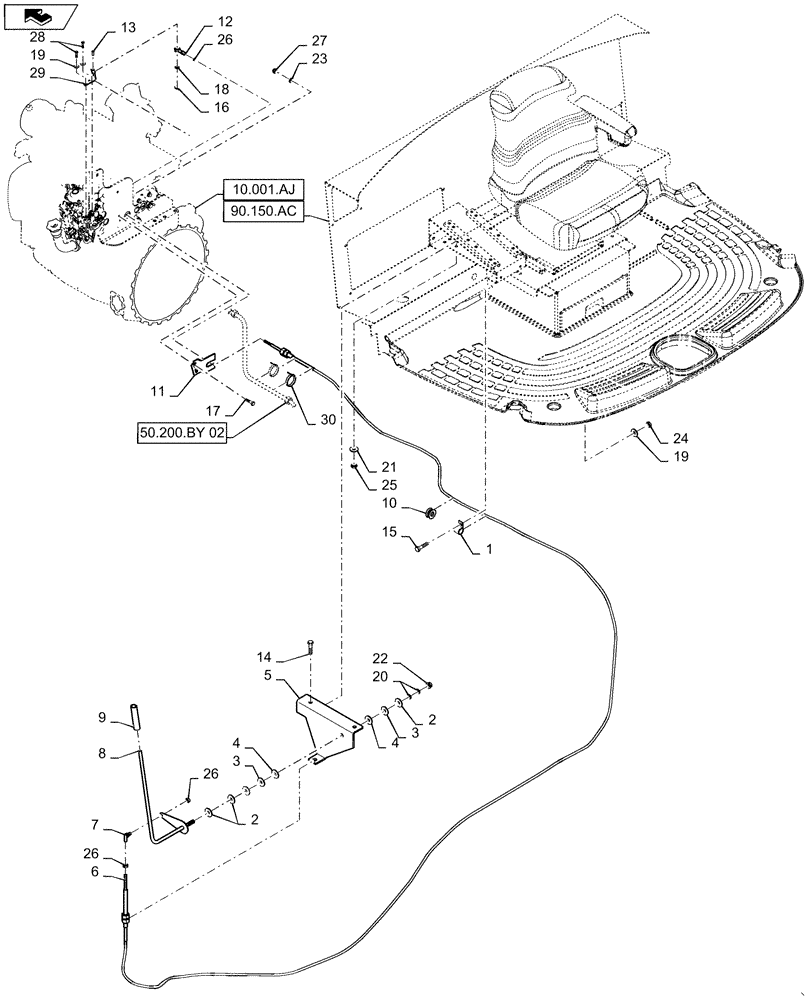

Запчасти Case IH WD1204 (55.525.AL) - THROTTLE CONTROL, 4 CYLINDER (55) - ELECTRICAL SYSTEMS

1

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

11.11 mm Insul M6 Bolt

1шт.

2

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

3

87017225

WASHER

2шт.

4

87017224

WASHER

Nylon 1/2 x 2

2шт.

5

84537097

SUPPORT

1шт.

6

87017222

CABLE ASSY.,2971.8mm L

Throttle

1шт.

7

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

8

84537099

LEVER

Throttle

1шт.

9

9842393

HANDLE GRIP

1шт.

10

86500924

GROMMET

1шт.

11

87371279

BRACKET

1шт.

12

87370252

END FITTING

Ball Joint

1шт.

13

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

16

417860A1

COTTER PIN

Cotter 5/16

1шт.

17

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

18

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

22

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

24

9706755

NUT,M6, Cl 8

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

2шт.

26

86509309

NUT,1/4"-28, G5

3шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

29

87047594

ROD

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.
