Запчасти Case IH WD1204 (55.510.AH) - HARNESS, ROOF (55) - ELECTRICAL SYSTEMS

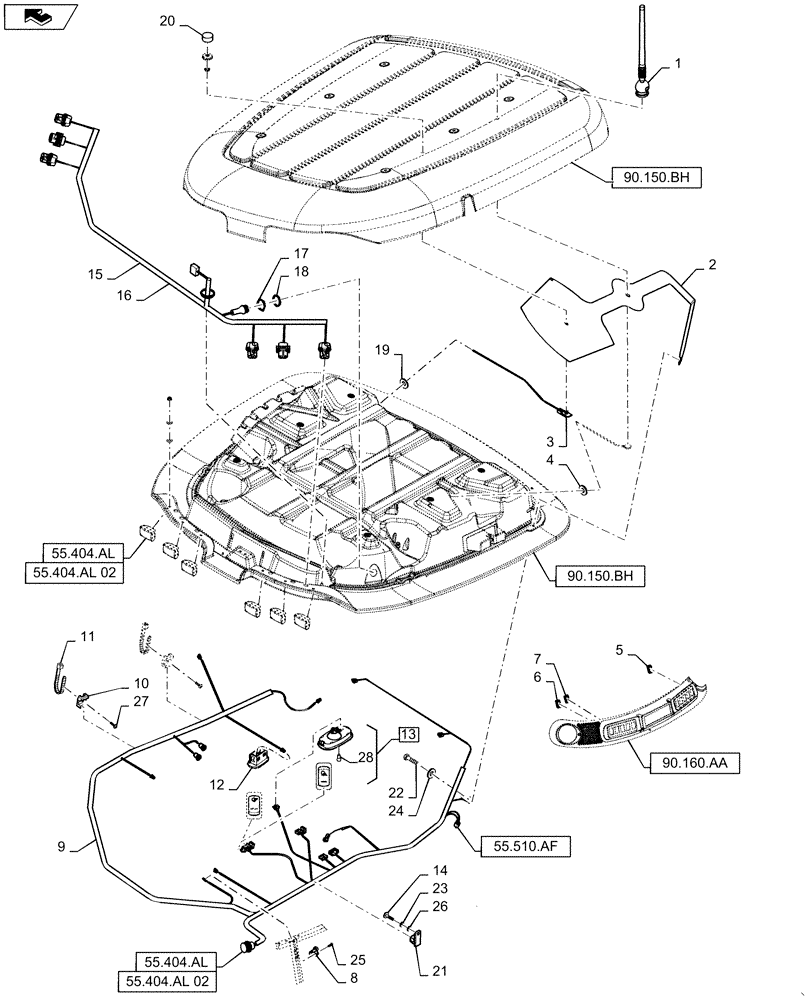

Схема запчастей Case IH WD1204 - (55.510.AH) - HARNESS, ROOF (55) - ELECTRICAL SYSTEMS
90.150.bh
55.404.al
22
18
20
28
10
2
15
90.150.bh
21
90.160.aa
7
26
17
55.404.al 02
9
11
5
8
6
12
23
25
14
55.510.af
24
16
19
3
4
27
55.404.al
1
55.404.al 02
13
19

Артикул

Название

Примечание

Количество

1

9846820

ANTENNA

AM/FM 2.1M

1шт.

2

87019598

SHEET

Ground Plate

1шт.

3

86591733

ASSEMBLY

Antenna Jumper, 2750MM Coax

1шт.

4

86500924

GROMMET

Split

1шт.

5

84320263

BLANK-OFF PLUG

Swith Shield

5шт.

6

87023726

LIGHT SWITCH

Front Work Lamp

1шт.

7

87023727

LIGHT SWITCH

Road Lamp

1шт.

8

9990447

LIGHT SWITCH

Interior Lamps

1шт.

9

84515761

WIRE HARNESS

Main Roof

1шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

11

86566989

CABLE TIE,208mm L

3шт.

12

84067961

CEILING LAMP

Cab Interior

1шт.

13

86622305

CEILING LAMP

Courtesy, Incl 28

1шт.

14

84073086

LOCK BOLT,Pan HD, M6 x 20mm

1шт.

15

84515763

WIRE HARNESS

For Deluxe Cab Versions

1шт.

16

84515762

WIRE HARNESS

For Standard Cab Versions

1шт.

17

86619907

NUT,1.6875"-18

1шт.

18

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

19

84607475

GROMMET,M6 x 36.5mm OD x 25mm Thk

1шт.

20

86591730

DUST CAP

1шт.

21

700514

CLAMP,3.8mm, Coat, M8 Bolt

Closed 23.8mm Insul 5/16 Bolt

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

25

9990936

SCREW,Oval CSK, M8 x 13mm

1шт.

26

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

27

412475

SCREW,Phil Pan Hd, M4 x 16mm, Cl 4.8, Full Thd

3шт.

28

86616249

BULB,12V, 10W

1шт.

Выбрано товаров: 28
