Запчасти Case IH WD1204 (55.510.AF) - HARNESS, CAB, MAIN DISTRIBUTOR (55) - ELECTRICAL SYSTEMS

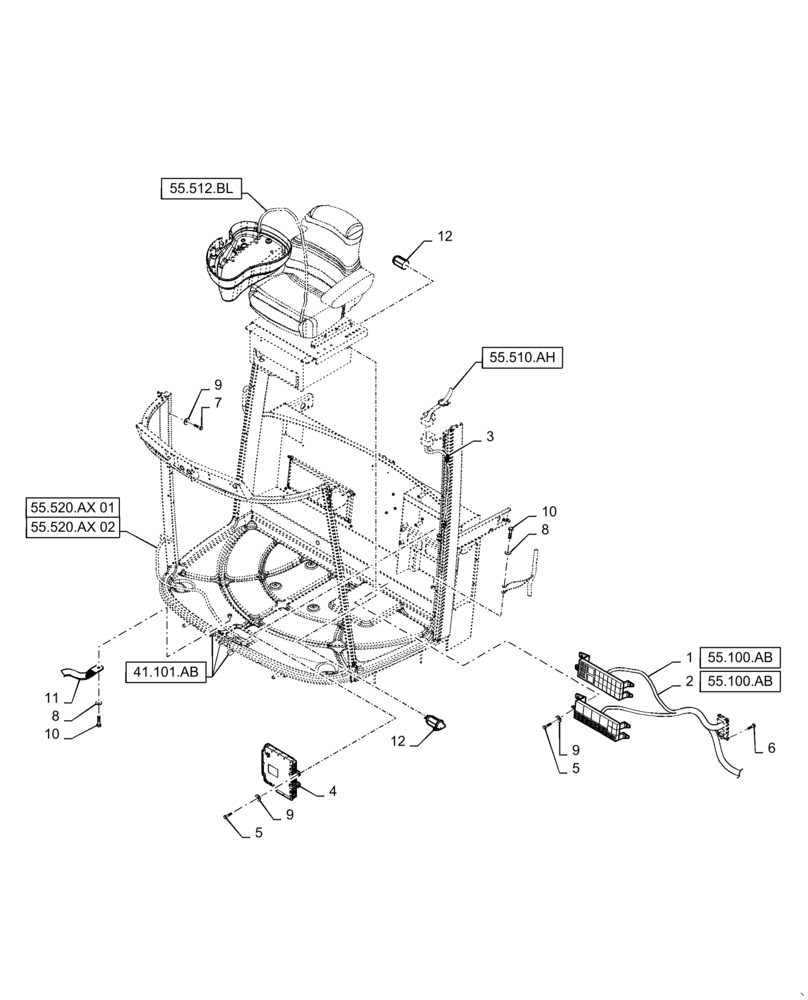

Схема запчастей Case IH WD1204 - (55.510.AF) - HARNESS, CAB, MAIN DISTRIBUTOR (55) - ELECTRICAL SYSTEMS
12
55.100.ab
6
11
1
55.520.ax 01
5
8
4
55.512.bl
10
5
55.510.ah
10
9
55.100.ab
9
9
41.101.ab
55.520.ax 02
12
3
8
2
7

Артикул

Название

Примечание

Количество

1

47683813

WIRE HARNESS

CM6, Non-Draper

1шт.

1

47676901

WIRE HARNESS

CM6, Non-Draper

1шт.

1

84515777

WIRE HARNESS

CM4, Non-Draper

1шт.

1

84572801

WIRE HARNESS

CM4, Non-Draper

1шт.

1

47474915

WIRE HARNESS

CM6, Non-Draper

1шт.

1

47882846

WIRE HARNESS

CM4/3

1шт.

2

47616415

WIRE HARNESS

CD6, Draper

1шт.

2

47616412

WIRE HARNESS

CD4, Draper

1шт.

2

84572802

WIRE HARNESS

CD4, Draper

1шт.

2

47474916

WIRE HARNESS

CD6, Draper

1шт.

3

323597

CABLE TIE,165mm OAL x 9mm Thk

4шт.

4

84589142

MODULE

ECU, UCM 12V

1шт.

4

47647494

ECU

UCM, 12V

1шт.

5

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

12шт.

6

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

4шт.

7

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

5шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

17шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

86534915

GROUND CABLE

Strap

1шт.

12

86626904

OUTLET

Power Socket

1шт.

13

47505133

SUPPORT

Fuse Block, Not Illustrated

1шт.

Выбрано товаров: 22
