Запчасти Case IH WD1204 (55.202.AG[02]) - COLD START SYSTEM, 4 CYLINDER (55) - ELECTRICAL SYSTEMS

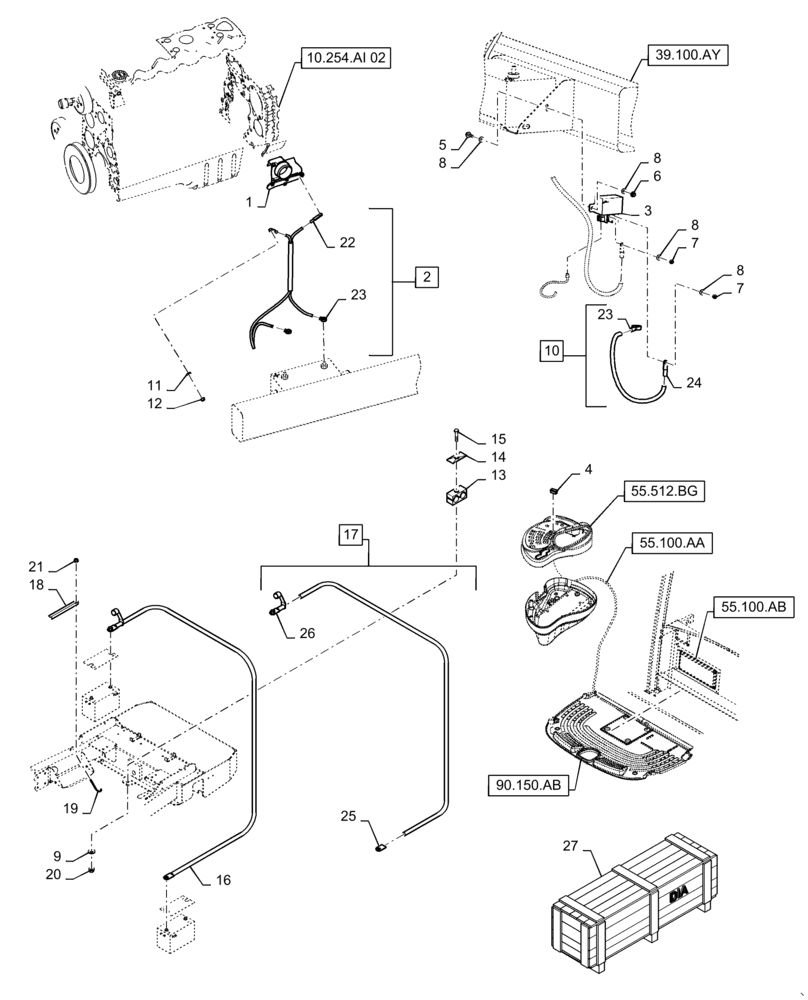

Схема запчастей Case IH WD1204 - (55.202.AG[02]) - COLD START SYSTEM, 4 CYLINDER (55) - ELECTRICAL SYSTEMS
24
4
21
6
23
3
10
8
8
16
25
39.100.ay
2
7
11
13
26
17
22
5
8
18
14
55.100.aa
55.100.ab
20
19
12
10.254.ai 02
15
9
55.512.bg
90.150.ab
1
8
7
23
27

Артикул

Название

Примечание

Количество

1

87541231

UNIT HEATER

Grid

1шт.

2

47643371

WIRE HARNESS

Pre-Heat, Incl 22 - 23

1шт.

3

86619908

RELAY,12V, 150A

Cold Start

1шт.

4

47641674

CONSOLE LAMP

Indicator

1шт.

5

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

6

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

7

9706755

NUT,M6, Cl 8

2шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

47643373

CABLE

Positive Battery, Pre-Heat, Incl 23 - 24

1шт.

11

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

13

86900725

CLAMP

Twin, 1mm

1шт.

14

87000230

PLATE

Clamp Cover

1шт.

15

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

16

86533716

ELECTRIC CABLE

Positive Battery

1шт.

17

47596430

CABLE

Negative Battery, Incl 25 - 26

1шт.

18

794967

SUPPORT

Battery Strap

1шт.

19

798180

BOLT

Hook

2шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

21

9628503

NUT,3/8"-16, G5

4шт.

22

47648221

TERMINAL

Tongue Ring, M6

3шт.

23

47648229

TERMINAL

Battery Ring, M10

2шт.

24

47593681

TERMINAL,M6, Tin, 5.00 - 15.00mm

Straight Ring, M6

1шт.

25

47598897

TERMINAL

Terminal, Battery Ring, M10

1шт.

26

47598896

TERMINAL

Terminal, Battery Ring, M10

1шт.

27

47644574

KIT

DIA, 4 Cyl Cold Start; Instruction 47646756

1шт.

Выбрано товаров: 27
