Запчасти Case IH WD1204 (55.202.AG[02]) - COLD START SYSTEM, 4 CYLINDER (55) - ELECTRICAL SYSTEMS

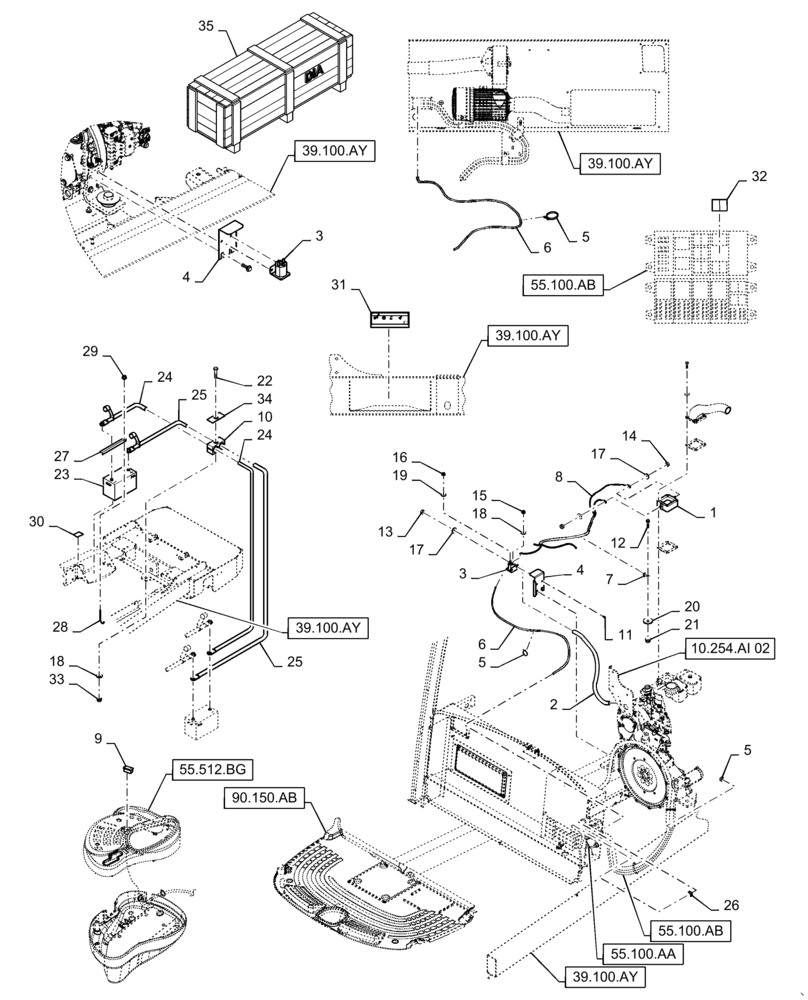

Схема запчастей Case IH WD1204 - (55.202.AG[02]) - COLD START SYSTEM, 4 CYLINDER (55) - ELECTRICAL SYSTEMS
18
2
30
16
35
1
15
32
14
55.512.bg
4
55.100.ab
39.100.ay
6
8
31
19
13
27
22
25
33
20
9
39.100.ay
26
7
17
11
23
28
3
24
24
6
25
5
10
29
5
17
34
10.254.ai 02
4
21
3
18
39.100.ay
90.150.ab
55.100.ab
12
39.100.ay
5
39.100.ay
55.100.aa

Артикул

Название

Примечание

Количество

1

82017872

HEATER

Grid

1шт.

2

87389492

POS BATTERY CABLE

Engine

1шт.

3

87406968

SOLENOID SWITCH

Grid Heater

1шт.

4

47586982

BRACKET

Mounting

1шт.

5

86566989

CABLE TIE,208mm L

10шт.

6

87389493

WIRE HARNESS

PH-F 6

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87389491

CABLE

Engine

1шт.

9

86631307

SWITCH

Rocker, Cold Start

1шт.

10

86900725

CLAMP

Twin, 1mm

1шт.

11

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

87825

NUT,#10-32

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

23

BMF31FSW

DRY BATTERY

650CCA

2шт.

24

86533717

ELECTRIC CABLE

Negative Battery

1шт.

25

86533716

ELECTRIC CABLE

Positive Battery

1шт.

26

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

794967

SUPPORT

Battery Strap

1шт.

28

798180

BOLT

Hook

2шт.

29

9628503

NUT,3/8"-16, G5

4шт.

30

76776

DECAL

Battery Terminal

1шт.

31

87054970

DECAL

Danger, Battery

1шт.

32

86509590

RELAY

20A

1шт.

33

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

34

87000230

PLATE

Cover, Twin Clamp

1шт.

35

47586289

KIT

DIA, 4 Cyl Deluxe Cold Start; Instruction 47519802

1шт.

Выбрано товаров: 35
