Запчасти Case IH WD1204 (55.101.AC[06]) - WIRE HARNESS & CONNECTOR, DRAPER FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

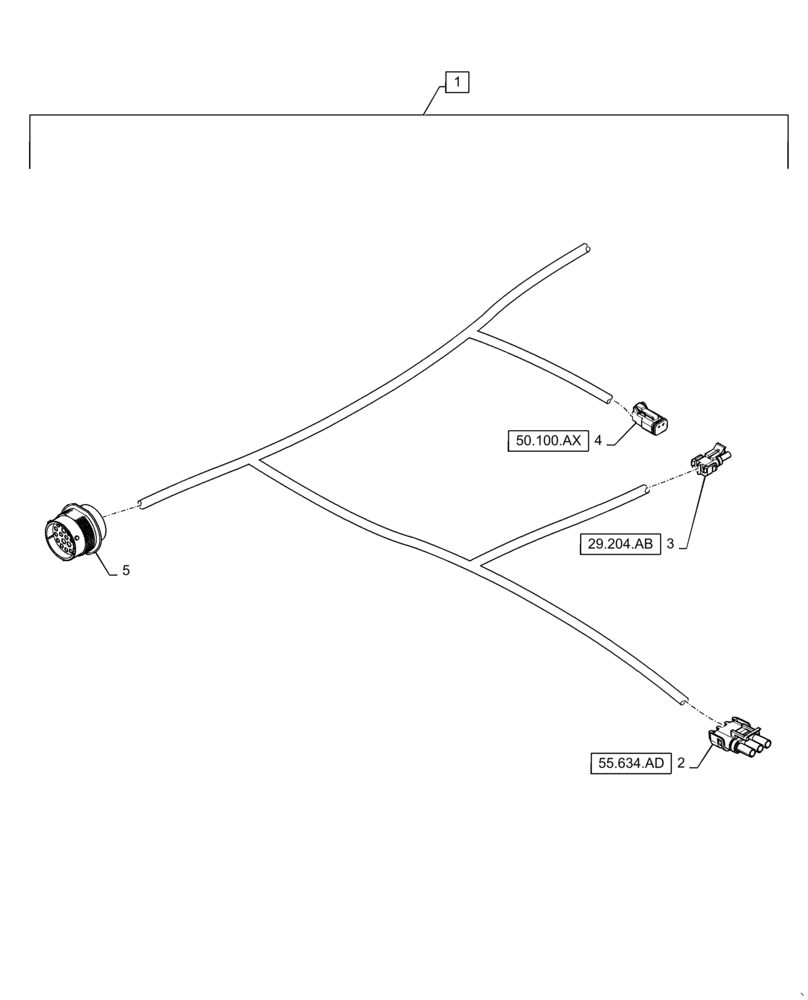

Схема запчастей Case IH WD1204 - (55.101.AC[06]) - WIRE HARNESS & CONNECTOR, DRAPER FD4 (CONT,) (55) - ELECTRICAL SYSTEMS
2
3
50.100.ax
5
55.634.ad
1
4
29.204.ab

Артикул

Название

Примечание

Количество

1

47474919

WIRE HARNESS

FD4, Incl 2 - 5 (Continued)

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

2

87692880

CABLE TERMINAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

2

87680701

SEAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

3

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

3

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

5

84364896

PLUG

FM To AD Pass-Thru Connector, X-192

1шт.

5

84607513

LOCK WASHER

FM To AD Pass-Thru Connector, X-192

1шт.

5

84068583

PLUG,12 - 16 Ga, White

FM To AD Pass-Thru Connector, X-192

1шт.

5

87696184

NUT

FM To AD Pass-Thru Connector, X-192

1шт.

5

87716289

COVER

FM To AD Pass-Thru Connector, X-192

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To AD Pass-Thru Connector, X-192

15шт.

5

87695923

TERMINAL

FM To AD Pass-Thru Connector, X-192

4шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To AD Pass-Thru Connector, X-192

1шт.

Выбрано товаров: 18
