Запчасти Case IH WD1204 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS

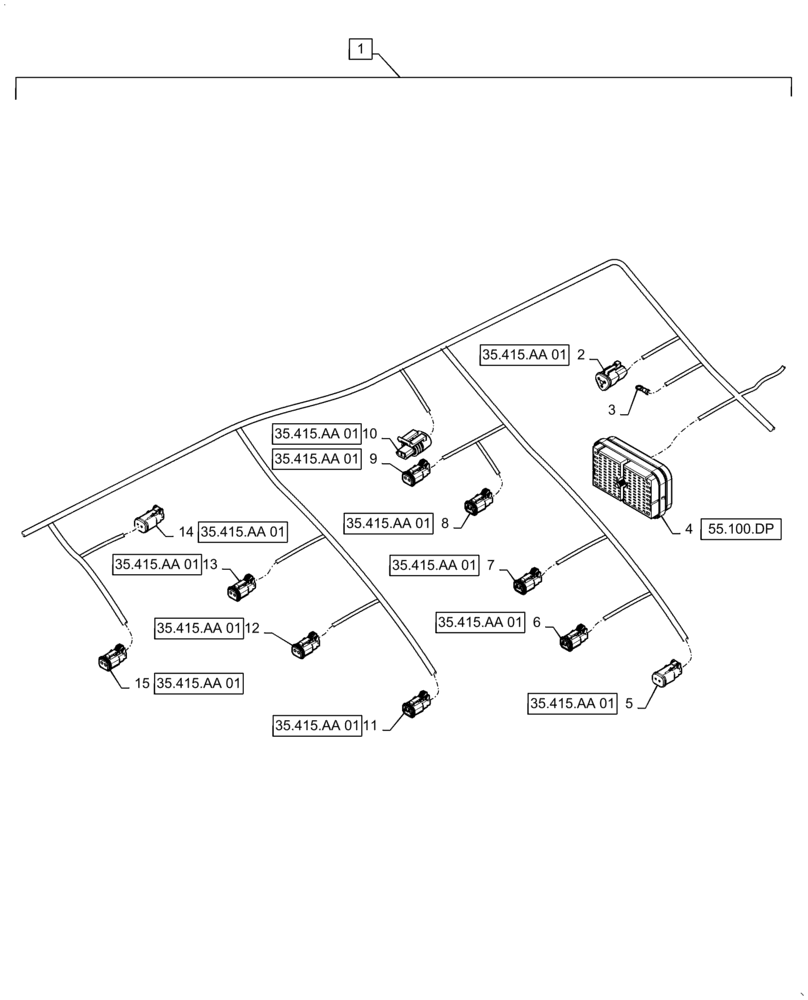

Схема запчастей Case IH WD1204 - (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS
55.100.dp
35.415.aa 01
35.415.aa 01
35.415.aa 01
12
4
1
5
35.415.aa 01
35.415.aa 01
3
2
9
10
35.415.aa 01
6
11
35.415.aa 01
35.415.aa 01
35.415.aa 01
35.415.aa 01
7
13
15
8
35.415.aa 01
35.415.aa 01
14

Артикул

Название

Примечание

Количество

1

84572789

WIRE HARNESS

FM4, Incl 2 - 15 (Continued)

1шт.

2

87695580

ELEC CONNECTOR,Female, 3 Pole

FM To RS/FD Pass Thru, X-627

1шт.

2

84074639

LOCKING TAB,Wedge Lock

FM To RS/FD Pass Thru, X-627

1шт.

2

84391165

HOUSING,Male, 3 Pins

FM To RS/FD Pass Thru, X-627

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To RS/FD Pass Thru, X-627

3шт.

3

84128198

HEAT SHIELD

GND-005 Left Cab (Under Instruct Seat) X-376

1шт.

3

84159856

TERMINAL,5/16" Ring, SAE 14 - 16

GND-005 Left Cab (Under Instruct Seat) X-376

1шт.

4

84479171

MULTIPOLE CONNECTOR,128 Contacts

FM To CM Pass-Thru, X-044

1шт.

4

84479172

LOCKING TAB

FM To CM Pass-Thru, X-044

1шт.

4

84068583

PLUG,12 - 16 Ga, White

FM To CM Pass-Thru, X-044

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To CM Pass-Thru, X-044

59шт.

4

87695923

TERMINAL

FM To CM Pass-Thru, X-044

3шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To CM Pass-Thru, X-044

14шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

2шт.

6

47461911

ELEC CONNECTOR

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

6

84277220

LOCKING TAB,Wedge Lock

Y-004 Solenoid, Unload Valve, Right (White) X-095

1шт.

6

84277237

TERMINAL

Y-004 Solenoid, Unload Valve, Right (White) X-095

2шт.

7

47486924

ELEC CONNECTOR

Y-013 Solenoid, Header Tilt (Brown) X-103

1шт.

7

84277220

LOCKING TAB,Wedge Lock

Y-013 Solenoid, Header Tilt (Brown) X-103

1шт.

7

84277237

TERMINAL

Y-013 Solenoid, Header Tilt (Brown) X-103

2шт.

8

47461911

ELEC CONNECTOR

Y-028 Solenoid, Brake Valve, Release (White) X-073

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Y-028 Solenoid, Brake Valve, Release (White) X-073

1шт.

8

84277237

TERMINAL

Y-028 Solenoid, Brake Valve, Release (White) X-073

2шт.

9

84277193

ELEC CONNECTOR

Y-023 Solenoid, Ground Speed High (Gray) X-072

1шт.

9

84277220

LOCKING TAB,Wedge Lock

Y-023 Solenoid, Ground Speed High (Gray) X-072

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-023 Solenoid, Ground Speed High (Gray) X-072

2шт.

10

87690432

ELEC CONNECTOR

R-007 Resistor Hydraulic Oil Temperature, X-140

1шт.

10

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

R-007 Resistor Hydraulic Oil Temperature, X-140

2шт.

11

47486924

ELEC CONNECTOR

Y-008 Solenoid, Header Lower Valve, Left (Brown) X-099

1шт.

11

84277220

LOCKING TAB,Wedge Lock

Y-008 Solenoid, Header Lower Valve, Left (Brown) X-099

1шт.

11

84277237

TERMINAL

Y-008 Solenoid, Header Lower Valve, Left (Brown) X-099

2шт.

12

84277535

ELEC CONNECTOR,Female, 2 Cavities

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

12

84277220

LOCKING TAB,Wedge Lock

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-010 Solenoid, Header Float Valve, Right (Yellow) X-101

2шт.

13

84277534

ELEC CONNECTOR

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

13

84277220

LOCKING TAB,Wedge Lock

Y-001 Solenoid, Header Flotation, Right (Green) X-092

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-001 Solenoid, Header Flotation, Right (Green) X-092

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

14

84074638

LOCKING TAB,Locking Wedge, Green

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

2шт.

15

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Select (Gray) X-143

1шт.

15

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Select (Gray) X-143

1шт.

15

84277237

TERMINAL

Y-064 Solenoid, Ground Speed Range Select (Gray) X-143

2шт.

Выбрано товаров: 45
