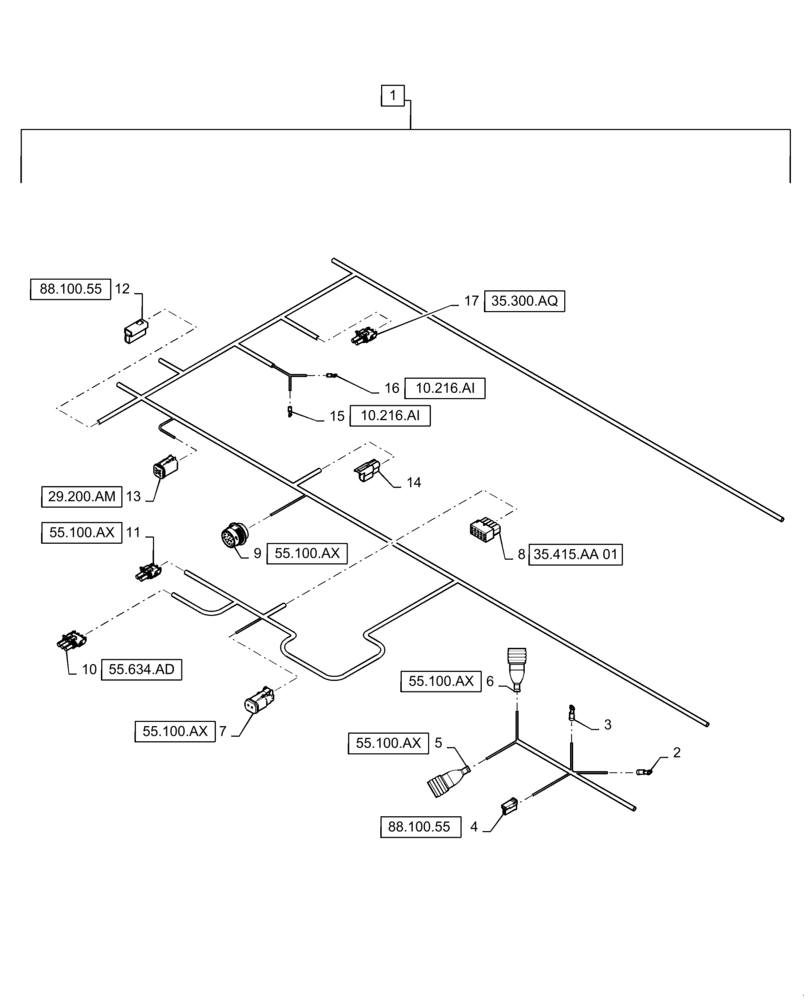

Запчасти Case IH WD1204 (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

84572789

WIRE HARNESS

FM4, Incl 2 - 17 (Continued)

1шт.

2

84128198

HEAT SHIELD

S-043 Switch, Fuel Door Light, X-196

1шт.

2

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

3

84128198

HEAT SHIELD

S-043 Switch, Fuel Door Light, X-345

1шт.

3

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

4

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

4

87690511

ELEC CONNECTOR

J-007 Jack, Service Light, Left, X-255

2шт.

5

84364894

BOOT

H-002 Horn, X-144

1шт.

5

87690511

ELEC CONNECTOR

H-002 Horn, X-144

1шт.

6

84364894

BOOT

H-002 Horn, X-145

1шт.

6

87690511

ELEC CONNECTOR

H-002 Horn, X-145

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-009 Lamp, Base Unit, Flashing, Left, X-326

2шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-101 Switch, Header Tilt, Apron, X-091

1шт.

8

82035902

PLUG

S-101 Switch, Header Tilt, Apron, X-091

1шт.

8

87694668

ELEC CONNECTOR

S-101 Switch, Header Tilt, Apron, X-091

3шт.

8

87691478

SEAL

S-101 Switch, Header Tilt, Apron, X-091

3шт.

9

87696087

ELEC CONNECTOR

FM To AC Pass-Thru Connector, Manual & ATC, X-033

1шт.

9

84068583

PLUG,12 - 16 Ga, White

FM To AC Pass-Thru Connector, Manual & ATC, X-033

1шт.

9

87704524

ELEC CONNECTOR,Pin, Size 12

FM To AC Pass-Thru Connector, Manual & ATC, X-033

2шт.

9

87695623

ELEC. TERMINAL PIN

FM To AC Pass-Thru Connector, Manual & ATC, X-033

10шт.

10

87644909

WIRE CONNECTOR,Female, 3 Pins

B-055 Sensor, Lift Arm Position, Left, X-075

1шт.

10

87692858

ELEC CONNECTOR,Male

B-055 Sensor, Lift Arm Position, Left, X-075

1шт.

10

87686742

PLUG

B-055 Sensor, Lift Arm Position, Left, X-075

1шт.

10

87680701

SEAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

10

87692880

CABLE TERMINAL

B-055 Sensor, Lift Arm Position, Left, X-075

3шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

B-001 Sensor, Ground Speed, Left, X-178

1шт.

11

87692856

CABLE TERMINAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

11

87680701

SEAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

12

87693325

ELEC CONNECTOR,Female, 2 Cavities

M-005 Motor, Windshield Washer Pump, X-266

1шт.

12

87709400

ELEC. TERMINAL PIN

M-005 Motor, Windshield Washer Pump, X-266

2шт.

13

87694112

ELEC CONNECTOR,Female, 6 Pole

FM To AG Pass Thru, X-042

1шт.

13

87694150

LOCKING TAB,Wedge Lock

FM To AG Pass Thru, X-042

1шт.

13

84391167

CAP

FM To AG Pass Thru, X-042

1шт.

14

87697530

ELEC CONNECTOR

M-010 Motor, Intake Air Pressurization, X-039

1шт.

14

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

M-010 Motor, Intake Air Pressurization, X-039

2шт.

15

84128198

HEAT SHIELD

R-001 Sensor, Fuel Level, X-498

1шт.

15

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor, Fuel Level, X-498

1шт.

16

84128198

HEAT SHIELD

R-001 Sensor, Fuel Level, X-047

1шт.

16

84159852

TERMINAL,#10 Ring, SAE 18 - 20

R-001 Sensor, Fuel Level, X-047

1шт.

17

87692855

CONTACT HOUSING,Male, 2 Cavities

S-019 Switch, Hydraulic Reservoir Level, X-141

1шт.

17

87692856

CABLE TERMINAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

17

87680701

SEAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.
