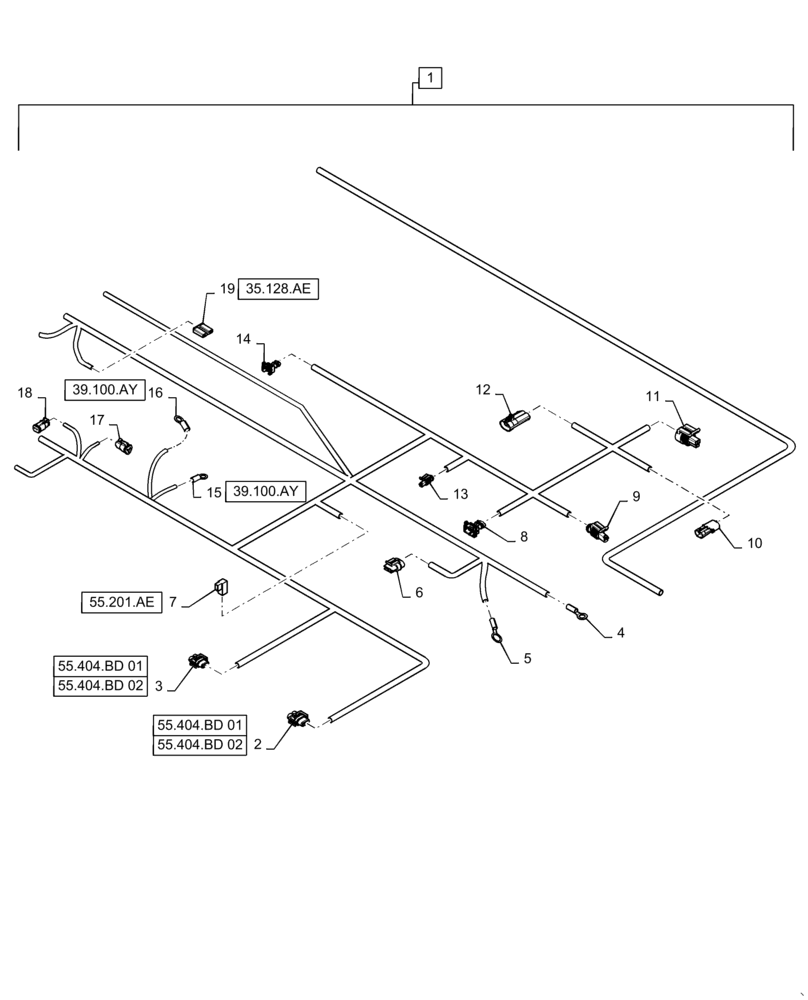

Запчасти Case IH WD1204 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

1

47474919

WIRE HARNESS

FD4, Incl 2 - 19 (Continued)

1шт.

2

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

2

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

2

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

2

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Left, X-283

1шт.

3

87690602

LOCK

E-022 Lamp, Stubble, Left, X-283

1шт.

3

87680656

CONTACT

E-022 Lamp, Stubble, Left, X-283

2шт.

3

87680701

SEAL

E-022 Lamp, Stubble, Left, X-283

2шт.

4

84128198

HEAT SHIELD

G-001 Alternator, X-148

1шт.

4

84159854

TERMINAL,M8

G-001 Alternator, X-148

1шт.

5

84128198

HEAT SHIELD

G-001 Alternator, X-212

1шт.

5

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Terminal, G-001 Alternator, X-212

1шт.

6

87688712

WIRE CONNECTOR,Female

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

87688863

CAP

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

83933689

FUSE,10A, Red

F-054 Fuse, Alternator "W" Line, X-020

1шт.

6

87688848

TERMINAL

F-054 Fuse, Alternator "W" Line, X-020

2шт.

7

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

7

371230-AL02

TERMINAL

Terminal, M-008 Motor, Starter, X-348

1шт.

8

84806091

WIRE CONNECTOR,Female, 3 Pin

S-088 Switch, H20 In Fuel, X-548

1шт.

8

CI08-90-AM3

Backshell Harness Flex, S-088 Switch, H20 In Fuel, X-548

1шт.

8

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

S-088 Switch, H20 In Fuel, X-548

3шт.

8

87691478

SEAL

S-088 Switch, H20 In Fuel, X-548

3шт.

9

87687239

CONTACT HOUSING,Female, 1 Pole

S-074 Switch, Engine Oil Pressure, X-068

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

S-074 Switch, Engine Oil Pressure, X-068

1шт.

9

82012084

SEAL,1.4mm ID

S-074 Switch, Engine Oil Pressure, X-068

1шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Y-027 Solenoid, A/C Clutch, X-027

1шт.

10

87680701

SEAL

Y-027 Solenoid, A/C Clutch, X-027

2шт.

10

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Y-027 Solenoid, A/C Clutch, X-027

2шт.

11

87418311

ELEC CONNECTOR,Female, 3 Cavities

R-002 Engine Coolant Temperature Sensor, X-060

1шт.

11

82017049

PLUG

R-002 Engine Coolant Temperature Sensor, X-060

1шт.

11

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

R-002 Engine Coolant Temperature Sensor, X-060

2шт.

11

87689629

SEAL

R-002 Engine Coolant Temperature Sensor, X-060

2шт.

12

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

S-040 Switch, Pressure, ATC High, X-014

1шт.

12

87688862

LOCKING TAB

S-040 Switch, Pressure, ATC High, X-014

1шт.

12

87688858

SEAL

S-040 Switch, Pressure, ATC High, X-014

2шт.

12

87709400

ELEC. TERMINAL PIN

S-040 Switch, Pressure, ATC High, X-014

1шт.

12

87688814

TERMINAL

S-040 Switch, Pressure, ATC High, X-014

1шт.

13

87687239

CONTACT HOUSING,Female, 1 Pole

Y-024 Solenoid, Fuel, X-024

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-024 Solenoid, Fuel, X-024

1шт.

13

82012084

SEAL,1.4mm ID

Y-024 Solenoid, Fuel, X-024

1шт.

14

84607243

ELEC CONNECTOR,Female, 2 Cavities

S-009 Switch, Air Filter, X-061

1шт.

14

87702681

TERMINAL

S-009 Switch, Air Filter, X-061

2шт.

14

87691478

SEAL

S-009 Switch, Air Filter, X-061

2шт.

15

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-305

1шт.

15

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-001 Left Rear Frame, X-305

2шт.

16

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-296

1шт.

16

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

1шт.

17

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-014 Solenoid, Propulsion Forward, X-070

1шт.

17

84068583

PLUG,12 - 16 Ga, White

Y-014 Solenoid, Propulsion Forward, X-070

1шт.

17

84074639

LOCKING TAB,Wedge Lock

Y-014 Solenoid, Propulsion Forward, X-070

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-014 Solenoid, Propulsion Forward, X-070

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Y-015 Solenoid, Propulsion Reverse, X-071

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-015 Solenoid, Propulsion Reverse, X-071

2шт.

19

87709211

ELEC CONNECTOR

S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.

19

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.
