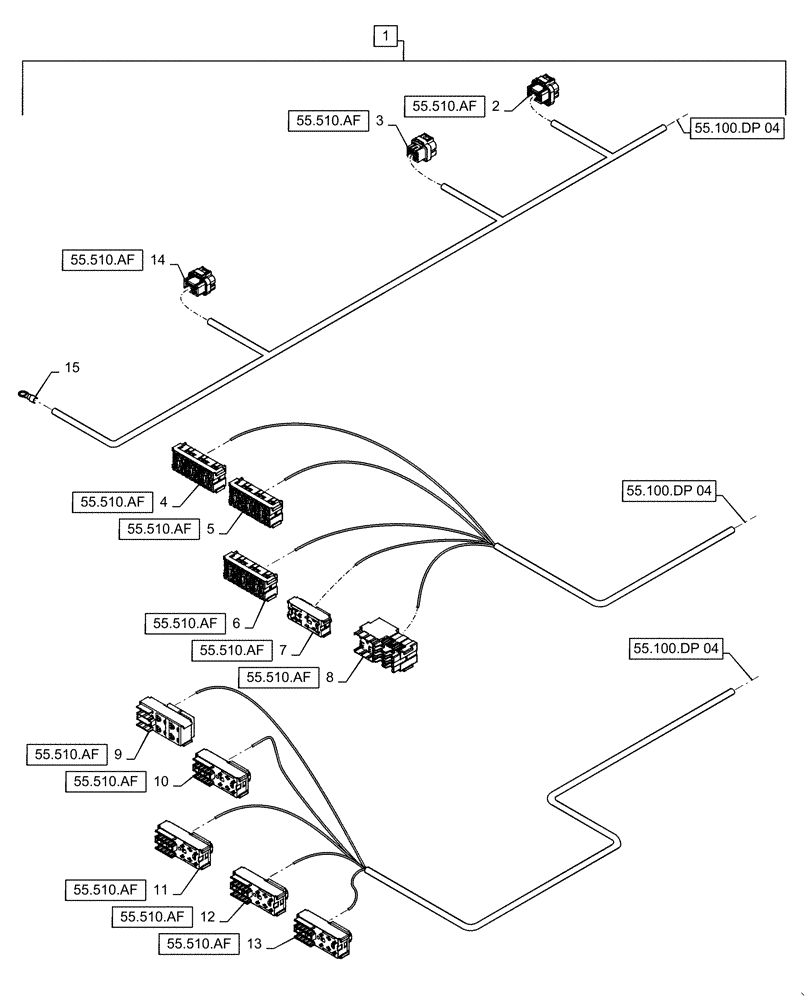

Запчасти Case IH WD1204 (55.100.DP[05]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47616412

WIRE HARNESS

CD4, Incl 2 - 15, (Continued)

1шт.

2

84130760

ELEC CONNECTOR,Female, 34 Cavities

A-001 UCM, X006

1шт.

2

82017048

CABLE TERMINAL

A-001 UCM, X-006

23шт.

3

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-007

1шт.

3

82017048

CABLE TERMINAL

A-001 UCM, X-007

8шт.

4

84526304

MODULE

Connector, Z-009, X-372

1шт.

4

84529032

TERMINAL

Z-009, X-372

5шт.

4

84491250

TERMINAL

Z-009, X-372

5шт.

5

84526304

MODULE

Connector, Z-008, X-366

1шт.

5

84491250

TERMINAL

Z-008, X-366

10шт.

5

84529032

TERMINAL

Z-008, X-366

13шт.

5

84491251

TERMINAL

Z-008, X-366

2шт.

6

84526304

MODULE

Connector, Z-007, X-365

1шт.

6

84491250

TERMINAL

Z-007, X-365

4шт.

6

84529032

TERMINAL

Z-007, X-365

12шт.

6

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Z-007, X-365

1шт.

6

84491251

TERMINAL

Z-007, X-365

6шт.

6

84153388

TERMINAL

Contact, Z-007, X-365

1шт.

7

87733587

ELEC CONNECTOR

Z-001, X-360

1шт.

7

84219725

TERMINAL

Contact, Z-001, X-360

1шт.

7

84207859

TERMINAL

Z-001, X-360

1шт.

7

84153403

TERMINAL

Contact, Z-001, X-360

4шт.

7

84164961

TERMINAL

Z-001, X-360

1шт.

8

87733597

FUSE BOX

Connector, Z-010, X-165

1шт.

8

84207857

LOCK

Z-010, X-165

1шт.

8

87716256

Terminal, Z-010, X-165

4шт.

9

87733596

FUSE BOX

Connector, Z-006, X-356

1шт.

9

84153403

TERMINAL

Terminal, Z-006, X-356

10шт.

9

84123442

TERMINAL

Z-006, X-356

3шт.

9

84164963

TERMINAL

Terminal, Z-006, X-356

8шт.

9

84123443

TERMINAL

Z-006, X-356

3шт.

9

84127679

TERMINAL

Z-006, X-356

1шт.

10

87733595

FUSE HOLDER

Z-005, X-364

1шт.

10

84123443

TERMINAL

Z-005, X-364

7шт.

10

84123442

TERMINAL

Z-005, X-364

6шт.

10

84164962

TERMINAL

Z-005, X-364

2шт.

10

84127679

TERMINAL

Z-005, X-364

1шт.

10

84164963

TERMINAL

Terminal, Z-005, X-364

2шт.

11

87733595

FUSE HOLDER

Z-004, X-363

1шт.

11

84164962

TERMINAL

Z-004, X-363

2шт.

11

84127679

TERMINAL

Z-004, X-363

2шт.

11

84123443

TERMINAL

Z-004, X-363

6шт.

11

84164963

TERMINAL

Terminal, Z-004, X-363

2шт.

11

84123442

TERMINAL

Z-004, X-363

8шт.

12

87733595

FUSE HOLDER

Z-003, X-362

1шт.

12

84164963

TERMINAL

Terminal, Z-003, X-362

2шт.

12

84123442

TERMINAL

Z-003, X-362

5шт.

12

84123443

TERMINAL

Z-003, X-362

5шт.

12

84127679

TERMINAL

Z-003, X-362

3шт.

12

84164962

TERMINAL

Z-003, X-362

2шт.

13

87733595

FUSE HOLDER

Z-002, X-361

1шт.

13

84123442

TERMINAL

Z-002, X-361

6шт.

13

84164962

TERMINAL

Z-002, X-361

2шт.

13

84164963

TERMINAL

Terminal, Z-002, X-361

2шт.

13

84127679

TERMINAL

Z-002, X-361

1шт.

13

84123443

TERMINAL

Z-002, X-361

3шт.

14

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 UCM, Z-008

1шт.

14

82017048

CABLE TERMINAL

A-001 UCM, Z-008

24шт.

15

84128198

HEAT SHIELD

GND-002 UCM Ground, Z-333

1шт.

15

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Terminal, GND-002 UCM Ground, Z-333

1шт.
