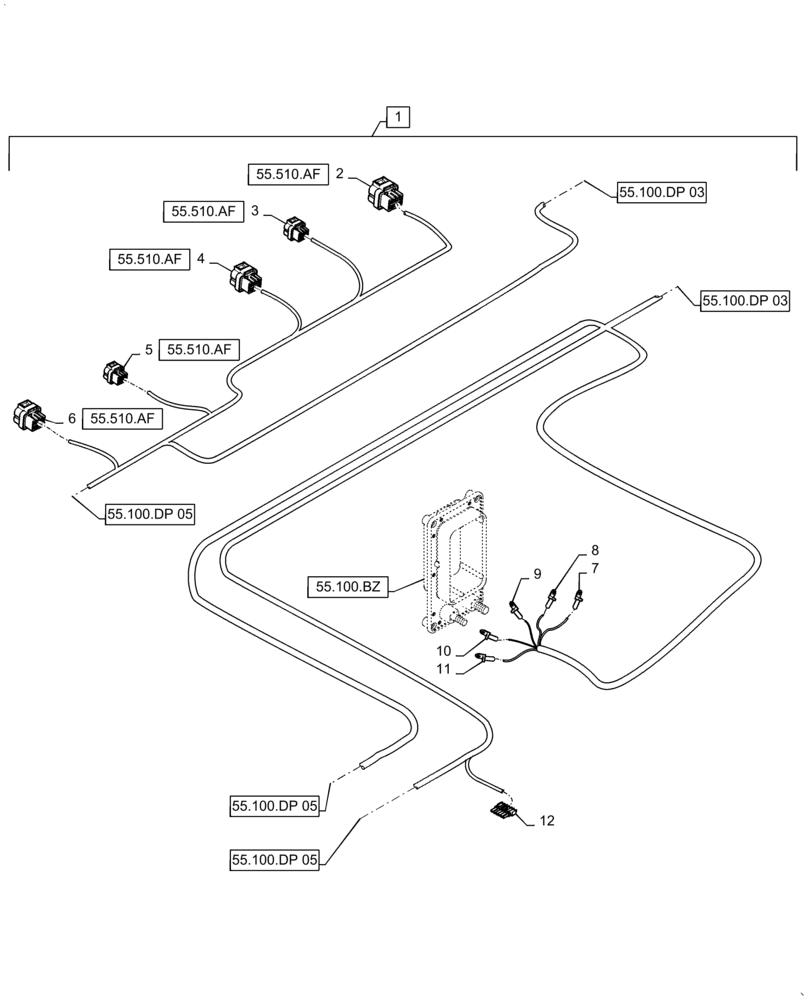

Запчасти Case IH WD1204 (55.100.DP[04]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47616412

WIRE HARNESS

CD4, Incl 2 - 12 (Continued)

1шт.

2

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-001

1шт.

2

82017048

CABLE TERMINAL

A-001 UCM, X-001

18шт.

3

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

A-001 UCM, X-002

1шт.

3

82017048

CABLE TERMINAL

A-001 UCM, X-002

24шт.

4

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-003

1шт.

4

82017048

CABLE TERMINAL

A-001 UCM, X-003

19шт.

5

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 Module, UCM, X-004

1шт.

5

82017048

CABLE TERMINAL

A-001 Module, UCM, X-004

23шт.

6

84130757

ELEC CONNECTOR,Female, 26 Cavities

A-001 Module, UCM, X-005

1шт.

6

82017048

CABLE TERMINAL

A-001 Module, UCM, X-005

19шт.

7

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Eyelet Terminal, FM to CM Battery Pass-Thru, X-051

1шт.

8

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Eyelet Terminal, FM to CM Battery Pass-Thru, X-050

1шт.

9

84477095

FLANGE

Flange, FM to CM Battery Pass-Thru, X-049

1шт.

9

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Eyelet Terminal, FM to CM Battery Pass-Thru, X-049

1шт.

10

84477095

FLANGE

Flange, FM to CM Battery Pass-Thru, X-054

1шт.

10

84401295

TERMINAL

FM to CM Battery Pass-Thru, X-054

1шт.

11

84401295

TERMINAL

FM to CM Battery Pass-Thru, X-055

1шт.

12

87039236

ELEC CONNECTOR

D-009 Diode Module, X-502

1шт.

12

87022597

MODULE

D-009 Diode Module, X-502

1шт.

12

87692856

CABLE TERMINAL

D-009 Diode Module, X-502

5шт.

12

87680701

SEAL

D-009 Diode Module, X-502

5шт.

12

87686742

PLUG

D-009 Diode Module, X-502

1шт.
