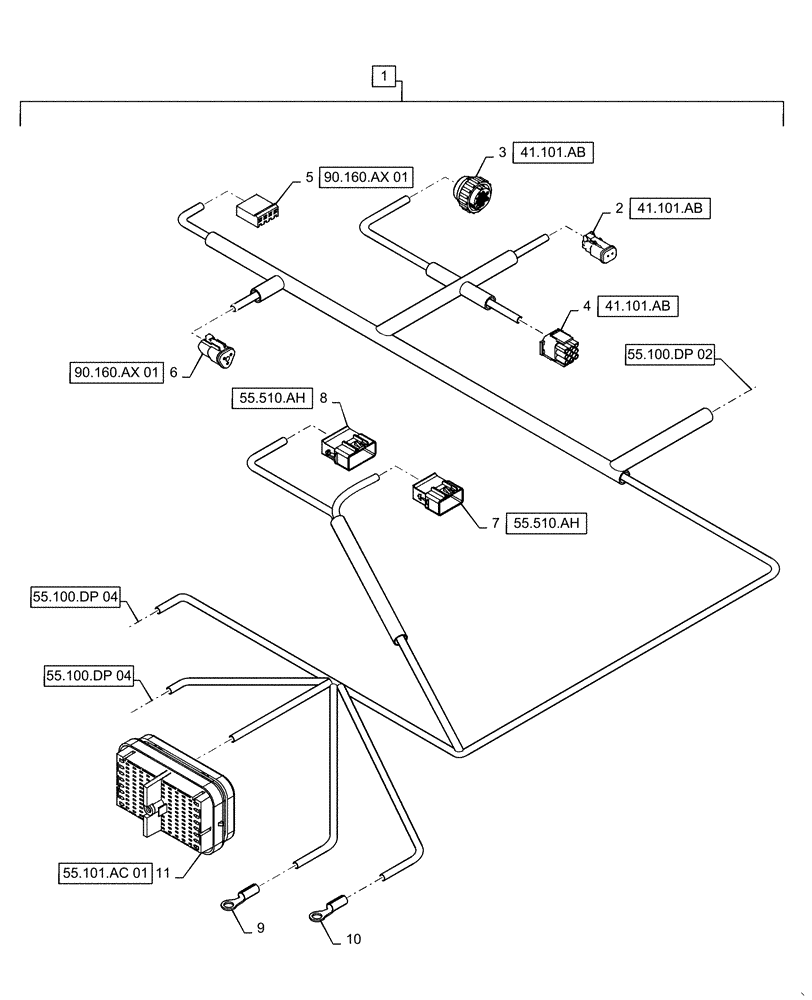

Запчасти Case IH WD1204 (55.100.DP[03]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47616412

WIRE HARNESS

CD4, Incl 2 - 11 (Continued)

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

B-003 Sensor, Steering Override, X-405

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Plug, B-003 Sensor, Steering Override, X-405

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-003 Sensor, Steering Override, X-405

2шт.

3

87686681

ELEC CONNECTOR

CM to SC Pass-Thru, X-279

1шт.

3

87680775

TERMINAL

Terminal, CM to SC Pass-Thru, X-279

5шт.

4

87675201

ELEC CONNECTOR

S-024 Turn Indicator / Horn Switch, X-234

1шт.

4

82864512

TERMINAL

Terminal, S-024 Turn Indicator / Horn Switch, X-234

5шт.

5

84520005

ELEC CONNECTOR

Connector, A-007 Module, A - Pillar Display, X-370

1шт.

5

84526553

TERMINAL

Terminal, A-007 Module, A - Pillar Display, X-370

4шт.

6

87695580

ELEC CONNECTOR,Female, 3 Pole

R-012 A - Pillar Can Termination Resistor, X-063

1шт.

6

84147090

LOCKING TAB,Wedge Lock

R-012 A - Pillar Can Termination Resistor, X-063

1шт.

6

84058092

CONTACT HOUSING,120 Ohm Resistor

R-012 A - Pillar Can Termination Resistor, X-063

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

R-012 A - Pillar Can Termination Resistor, X-063

2шт.

7

84479011

ELEC CONNECTOR

Connector, CM to RM Pass-Thru, X-546

1шт.

7

84479031

TERMINAL

Terminal, CM to RM Pass-Thru, X-546

6шт.

8

84278759

ELEC CONNECTOR

Connector, CM to RM Pass-Thru, X-545

1шт.

8

84278800

TERMINAL

Terminal, CM to RM Pass-Thru, X-545

15шт.

9

84128198

HEAT SHIELD

Heat Shrink Tube, GND-005 Left Cab (Under Instructors Seat), X-332

1шт.

9

84399575

TERMINAL,5/16" Ring, SAE 8

Eylet Terminal, GND-005 Left Cab (Under Instructors Seat), X-332

1шт.

10

84128198

HEAT SHIELD

Heat Shrink, GND-005 Left Cab (Under Instructors Seat), X-278

1шт.

10

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Eylet Terminal, GND-005 Left Cab (Under Instructors Seat), X-278

1шт.

11

84477026

ELEC CONNECTOR,Female, 128 Cavities

Connector, FM to CM Pass-Thru, X-044

1шт.

11

84477105

LOCKING TAB,Wedge Lock

Wedge Lock, FM to CM Pass-Thru, X-044

2шт.

11

84477095

FLANGE

Flange, FM to CM Pass-Thru, X-044

1шт.

11

87695623

ELEC. TERMINAL PIN

FM to CM Pass-Thru, X-044

85шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

FM to CM Pass-Thru, X-044

9шт.

11

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, FM to CM Pass-Thru, X-044

3шт.
