Запчасти Case IH WD1204 (55.100.DP[02]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS

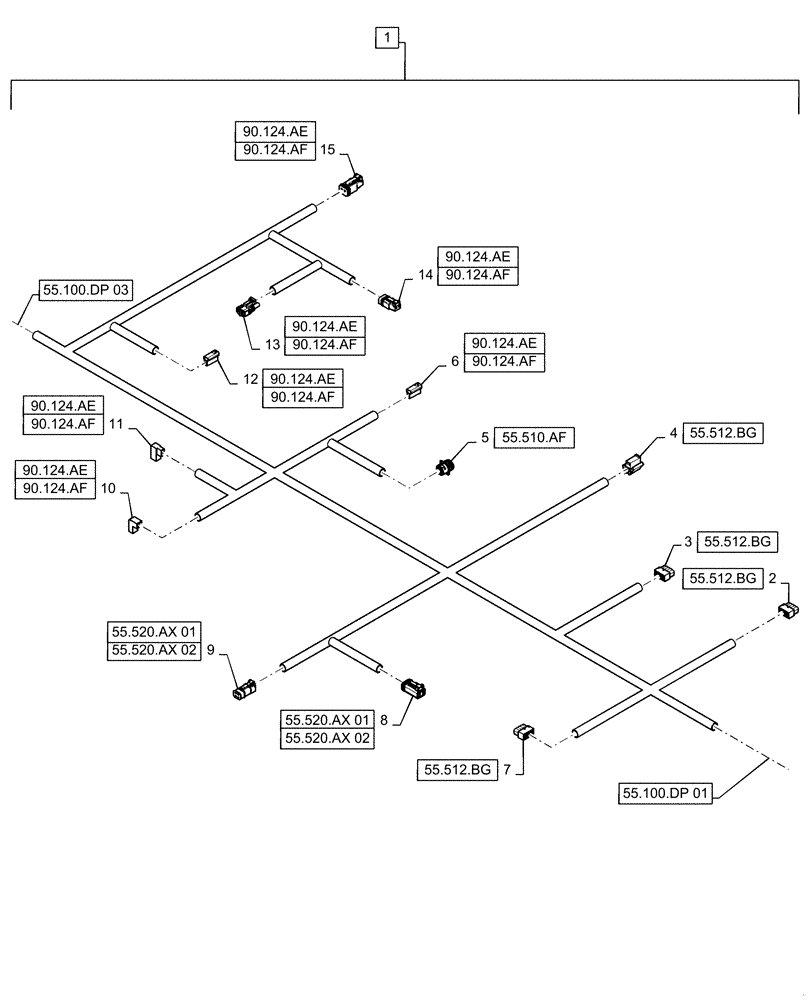

Схема запчастей Case IH WD1204 - (55.100.DP[02]) - WIRE HARNESS & CONNECTOR, DRAPER, CD4 (CONT.) (55) - ELECTRICAL SYSTEMS
90.124.af
90.124.af
3
5
90.124.af
90.124.ae
55.520.ax 02
90.124.ae
55.510.af
90.124.af
8
9
90.124.ae
55.100.dp 03
1
7
15
12
90.124.af
11
90.124.ae
10
55.512.bg
13
55.520.ax 01
90.124.ae
90.124.af
55.512.bg
2
14
55.520.ax 02
90.124.ae
55.100.dp 01
90.124.ae
55.512.bg
55.520.ax 01
6
90.124.af
4
55.512.bg

Артикул

Название

Примечание

Количество

1

47616412

WIRE HARNESS

CD4, Incl 2 - 15 (Continued)

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-005 Switch, Return to Cut, X-170

1шт.

2

87694668

ELEC CONNECTOR

Terminal, S-005 Switch, Return to Cut, X-170

3шт.

2

87691478

SEAL

S-005 Switch, Return to Cut, X-170

3шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-055 Switch, Preheat, X-151

1шт.

3

87694668

ELEC CONNECTOR

Terminal, S-055 Switch, Preheat, X-151

2шт.

3

87691478

SEAL

S-055 Switch, Preheat, X-151

2шт.

4

87693713

ELEC CONNECTOR,Female, 6 Cavities

S-004 Key Switch, X-147

1шт.

4

87709400

ELEC. TERMINAL PIN

S-004 Key Switch, X-147

4шт.

5

87706943

ELEC CONNECTOR

Connector, Diagnostics Connector, X-043

1шт.

5

87695623

ELEC. TERMINAL PIN

Diagnostics Connector, X-043

4шт.

6

84697531

ELEC CONNECTOR

Connector, J-003 Seat Pod Power Jack, X-252

1шт.

6

87697660

TERMINAL

J-003 Seat Pod Power Jack, X-252

2шт.

7

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-014 Right Header Trim Switch, Increase / Decrease, X-087

1шт.

7

87694668

ELEC CONNECTOR

Terminal, S-014 Right Header Trim Switch, Increase / Decrease, X-087

3шт.

7

87691478

SEAL

S-014 Right Header Trim Switch, Increase / Decrease, X-087

3шт.

8

87694153

CONTACT HOUSING,Female, 4 Cavities

CM to DA Option, X-028

1шт.

8

84074640

LOCKING TAB,Wedge Lock

CM to DA Option, X-028

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

CM to DA Option, X-028

3шт.

9

87696138

ELEC CONNECTOR

A-002 Display Module, 4 Line, X-369

1шт.

9

87696149

ELEC CONNECTOR

Wedge Lock, A-002 Display Module, 4 Line, X-369

1шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

A-002 Display Module, 4 Line, X-369

4шт.

10

84120014

ELEC CONNECTOR

Connector, J-011 Power Jack, X-482

1шт.

11

84120017

ELEC CONNECTOR

Connector, J-011 Power Jack, X-483

1шт.

11

37123-AL02

TERMINAL

Terminal, J-011 Power Jack, X-483

1шт.

12

87697531

ELEC CONNECTOR,Female, 2 Cavities

Connector, J-006 Jack, Seat Base Power, X-182

1шт.

12

87697660

TERMINAL

J-006 Jack, Seat Base Power, X-182

2шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

M-003 Seat Suspension Motor, X-187

1шт.

13

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

M-003 Seat Suspension Motor, X-187

2шт.

13

87680701

SEAL

M-003 Seat Suspension Motor, X-187

2шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

R-006 Resistor, Seat Heat, X-022

1шт.

14

87696145

LOCKING TAB

Plug, R-006 Resistor, Seat Heat, X-022

2шт.

14

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

R-006 Resistor, Seat Heat, X-022

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

S-002 Seat Switch, X-109

1шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

Plug, S-002 Seat Switch, X-109

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

S-002 Seat Switch, X-109

2шт.

Выбрано товаров: 36
