(55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL

Запчасти Case IH WD1204 (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

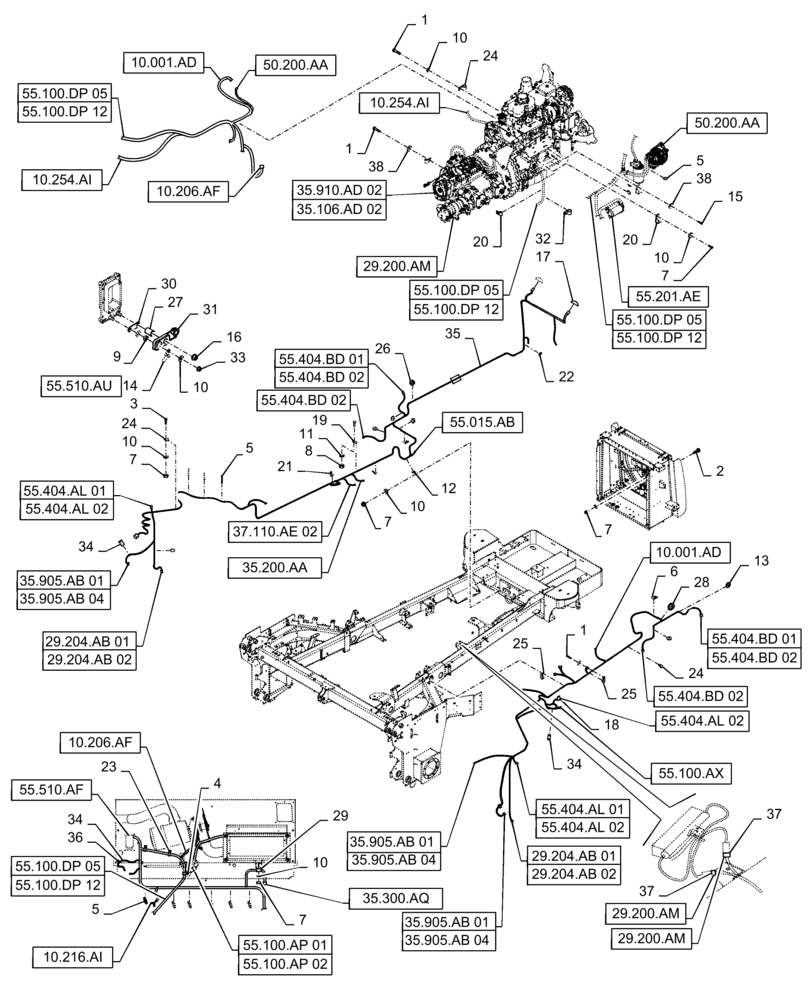

Схема запчастей Case IH WD1204 - (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
55.100.ap 02
35.300.aq
15
55.404.al 02
34
7
29.200.am
14
10
55.404.bd 01
35.905.ab 01
35.905.ab 01
29.204.ab 02
33
1
55.100.ax
35.106.ad 02
55.015.ab
10
10
55.100.ap 01
5
10.216.ai
55.404.al 01
7
32
20
2
10.206.af
28
25
50.200.aa
29.200.am
27
24
10.254.ai
10
34
34
55.100.dp 12
11
35.905.ab 04
10.001.ad
7
35.910.ad 02
29.200.am
35.905.ab 04
16
22
1
12
4
35
38
26
55.404.bd 02
55.201.ae
10.206.af
55.510.af
1
55.404.al 02
37
55.100.dp 12
10.001.ad
25
29.204.ab 01
20
10.254.ai
55.404.bd 02
55.100.dp 05
55.100.dp 05
55.404.al 01
7
31
37.110.ae 02
10
36
21
55.404.bd 01
30
29.204.ab 02
10
37
8
13
55.100.dp 05
3
9
55.404.al 02
29.204.ab 01
7
55.404.bd 02
55.100.dp 05
24
24
18
29
50.200.aa
35.905.ab 01
23
38
6
55.100.dp 12
35.200.aa
5
17
55.510.au
19
55.404.bd 02
5
35.905.ab 04
55.100.dp 12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86566989

CABLE TIE,208mm L

41шт.

6

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

Closed

2шт.

7

86521605

FLANGE NUT,5/16"-18, Cl 5

17шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

12

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

13

87742343

GROMMET,.688" x 1"

4шт.

14

47596428

CABLE

Battery, Positive

1шт.

15

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

17

87627854

LIGHT ASSY.,12V, 27W, Red

Rear Tail - Stop

2шт.

18

86562581

SWITCH

Rocker

1шт.

19

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

P Style

1шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

21

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

23

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

24

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

25

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Closed

3шт.

26

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

Wire Protection

1шт.

27

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

Battery Terminal

1шт.

28

237915

GROMMET

Wire Protection

2шт.

29

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

84476466

PLATE

Bus

1шт.

31

84558376

COVER

Terminal, Red

1шт.

32

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

3шт.

33

9706690

NUT,M8 x 1.25, Cl 8

3шт.

34

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

35

47408002

WIRE HARNESS

Tail Light

1шт.

36

100016

NUT,M10 x 1.5, Cl 8

1шт.

37

84391159

WIRE CONNECTOR

Connector

2шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.
