(55.100.BZ[01]) - REAR FRAME ELECTRIC SYSTEM CONTROL

Запчасти Case IH WD1204 (55.100.BZ[01]) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

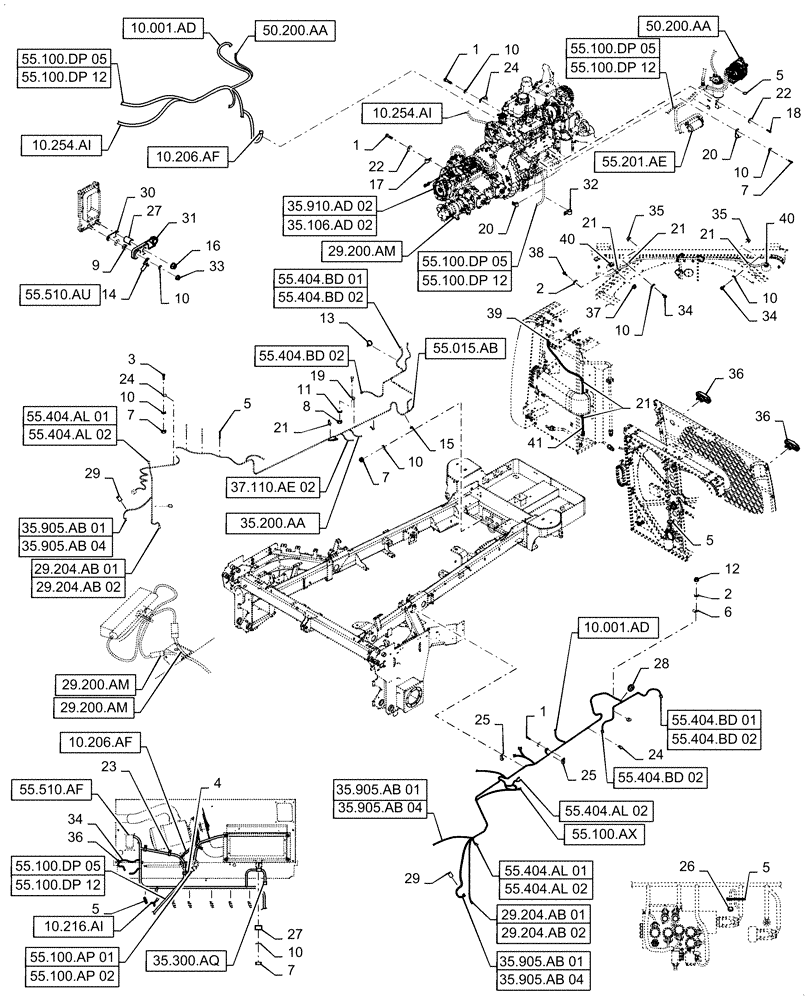

Схема запчастей Case IH WD1204 - (55.100.BZ[01]) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
2
31
29.204.ab 01
10.206.af
5
27
35.200.aa
21
36
29.200.am
7
2
29
15
1
10
10.216.ai
55.404.bd 01
37
21
29
5
24
55.404.bd 02
29.200.am
55.100.ax
34
37.110.ae 02
19
29.200.am
55.015.ab
7
10.001.ad
20
1
35.905.ab 04
35.910.ad 02
35.300.aq
10
3
35.905.ab 01
8
24
36
10
10
10.001.ad
55.404.al 02
41
55.100.dp 12
10.254.ai
1
35.905.ab 01
34
55.404.al 02
21
55.100.dp 05
25
55.100.dp 05
55.100.dp 12
55.100.dp 05
55.100.ap 02
55.404.al 02
55.510.au
11
22
17
55.404.bd 02
27
6
40
30
10.206.af
35.106.ad 02
35.905.ab 04
24
32
5
35
28
34
25
55.404.al 01
22
55.100.dp 05
55.404.bd 02
55.201.ae
10.254.ai
7
55.100.dp 12
35.905.ab 01
14
20
10
21
33
4
29.204.ab 01
40
35.905.ab 04
26
55.404.al 01
13
23
12
10
36
9
29.204.ab 02
38
16
10
50.200.aa
5
50.200.aa
5
55.100.ap 01
55.404.bd 01
55.404.bd 02
10
55.510.af
29.204.ab 02
55.100.dp 12
18
7
35
21
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86566989

CABLE TIE,208mm L

Closed, Clamp

41шт.

6

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

7

86521605

FLANGE NUT,5/16"-18, Cl 5

10шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

12

9706755

NUT,M6, Cl 8

2шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

Cable Tie

2шт.

14

47596428

CABLE

Positive, Battery

1шт.

15

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

Closed

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

17

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

Closed

1шт.

18

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

19

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

P-Clip

2шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

Closed

3шт.

21

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Closed

1шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

Closed

2шт.

24

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

Closed

7шт.

25

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Closed

5шт.

26

84391159

WIRE CONNECTOR

Connector

2шт.

27

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

1шт.

28

237915

GROMMET

2шт.

29

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

Closed

2шт.

30

84476466

PLATE

Bus

1шт.

31

84558376

COVER

Terminal, Red

1шт.

32

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

Closed

1шт.

33

9706690

NUT,M8 x 1.25, Cl 8

1шт.

34

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

35

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

36

87627854

LIGHT ASSY.,12V, 27W, Red

Rear Stop, Tail

2шт.

37

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

38

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

39

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

1шт.

40

174266

GROMMET

1шт.

41

47408002

WIRE HARNESS

Tail Light

1шт.
