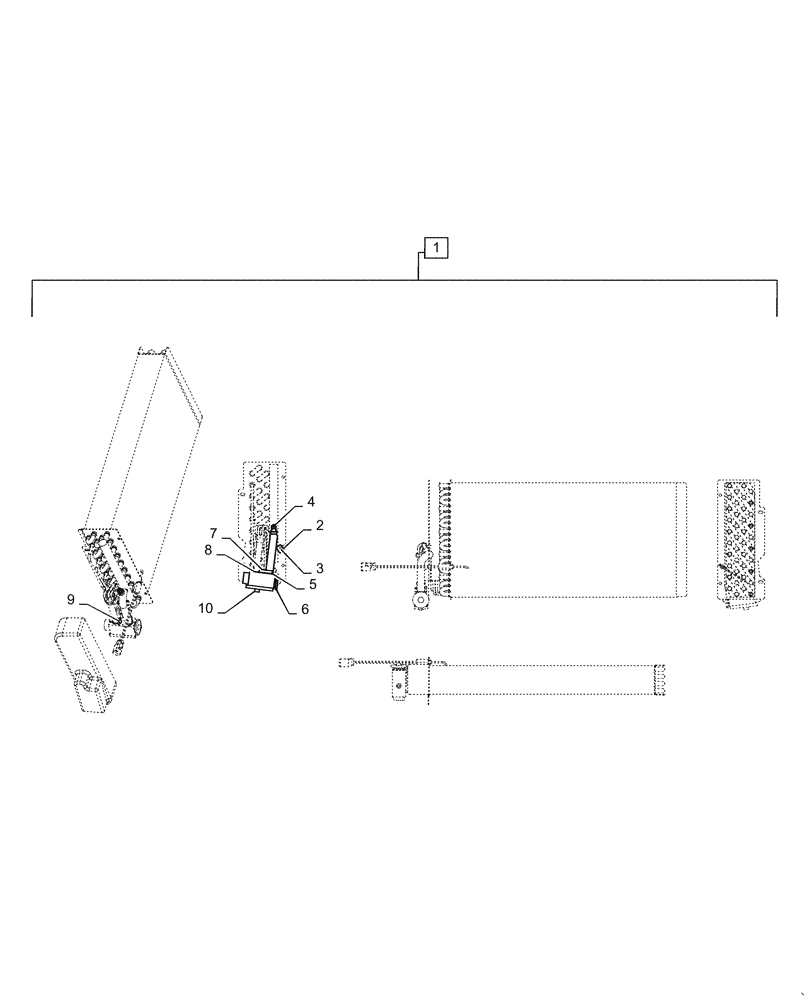

Запчасти Case IH WD1204 (50.100.AP[05]) - EVAPORATOR, ASSY (50) - CAB CLIMATE CONTROL

1

87754243

EVAPORATOR

Assy, Incl 2 - 10

1шт.

2

84320222

GROMMET,3.75mm ID x 8.5mm OD

8mm

1шт.

3

87754238

SENSOR

Temperature

1шт.

4

1250594C2

CORE

Valve

1шт.

5

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

6

82023542

VALVE, THERMAL EXPAN

TXV

1шт.

7

84144154

MOUNTING PLATE

1шт.

8

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

9

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

10

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.
