Запчасти Case IH WD1204 (50.100.AP[04]) - HEATING SYSTEM, BOX, DELUXE ATC (50) - CAB CLIMATE CONTROL

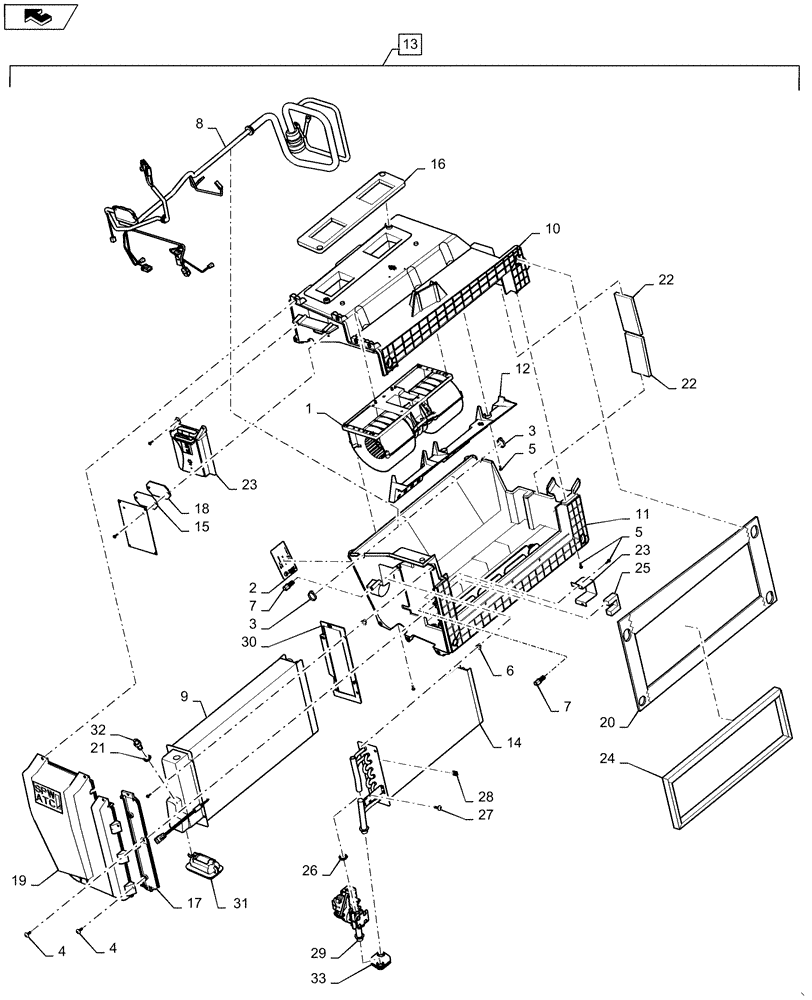

Схема запчастей Case IH WD1204 - (50.100.AP[04]) - HEATING SYSTEM, BOX, DELUXE ATC (50) - CAB CLIMATE CONTROL
6
30
28
17
32
20
10
4
3
12
27
22
21
23
33
1
7
19
7
25
13
15
16
11
4
2
29
22
9
18
3
14
26
31
5
23
24
5
8

Артикул

Название

Примечание

Количество

1

87398804

AIR CONDITIONER

ATC

1шт.

2

87754246

ELECTRIC BLOWER

12 V

1шт.

3

323597

CABLE TIE,165mm OAL x 9mm Thk

2шт.

4

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

12шт.

5

87495849

SCREW,Hex Washer, 14mm

32шт.

6

87495851

SPRING NUT,K50, Plastic

4шт.

7

87454442

SENSOR

Thermister, Cab Return Air

2шт.

8

87754254

WIRE HARNESS

ATC

1шт.

9

87754243

EVAPORATOR

Assy, Service

1шт.

10

87653379

HOUSING

Top

1шт.

11

87653381

HOUSING

Bottom

1шт.

12

87655340

BAFFLE

HVAC Unit

1шт.

13

NSS

NOT SOLD SEPARAT

Sensor Housing, Incl In 1

1шт.

14

87754225

HEATER COIL

1шт.

15

87754244

COVER

Assy

1шт.

16

87754233

GASKET

Duct

1шт.

17

87656838

COVER

HVAC Unit FRT

1шт.

18

87754234

GASKET

Plate

1шт.

19

87655335

COVER

HVAC Unit Rear

1шт.

20

87754236

GASKET

Mounting

1шт.

21

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

22

87754237

GASKET

Housing

2шт.

23

84268957

MODULE

ATC Control

1шт.

23

84268957R

REMAN ELECT CONTROL

ATC Control

1шт.

23

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

24

84143878

FOAM INSULATION

Recirculation Filter

1шт.

25

84158122

INSULATOR

Sensor Housing

1шт.

26

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

27

87355939

SCREW,#8 - 16 x 0.28"

7шт.

28

87495850

SPRING NUT,J, #10

2шт.

29

87754256

HEATER VALVE

1шт.

30

87754232

GASKET

Evaporator

1шт.

31

87754230

BOOT

TXV

1шт.

32

87323829

SWITCH, A/C LOW PRES

1шт.

33

87754231

GROMMET

Tube

1шт.

Выбрано товаров: 35
