Запчасти Case IH WD1204 (50.100.AP[02]) - HEATING SYSTEM, BOX, STANDARD (50) - CAB CLIMATE CONTROL

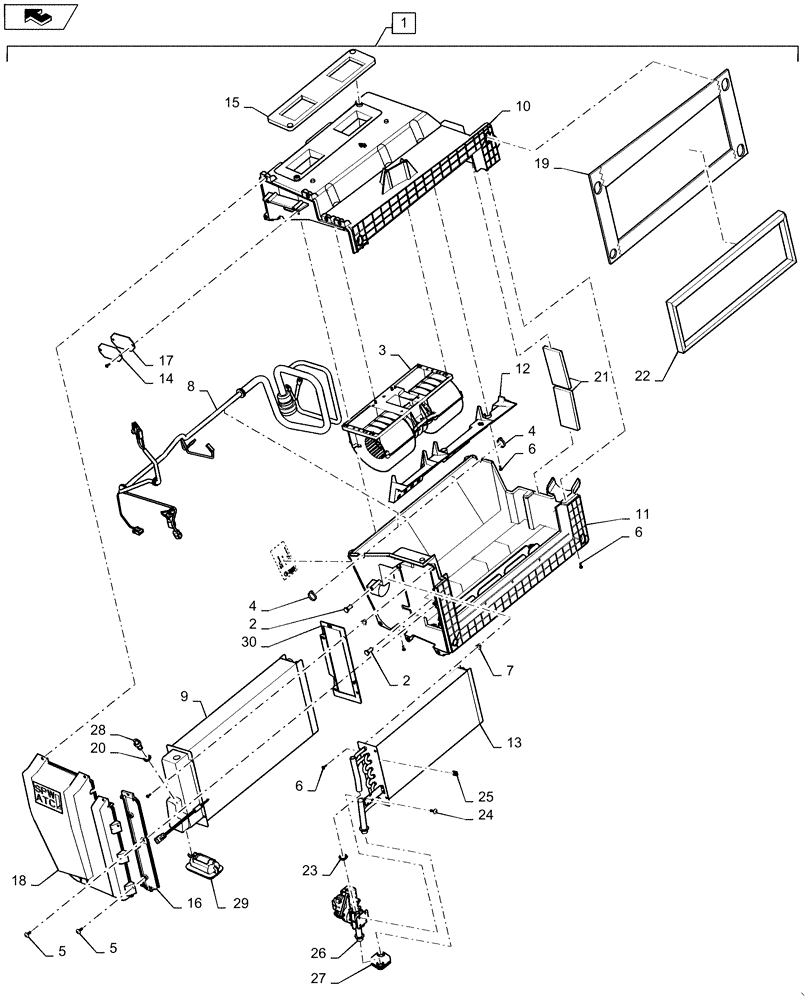

Схема запчастей Case IH WD1204 - (50.100.AP[02]) - HEATING SYSTEM, BOX, STANDARD (50) - CAB CLIMATE CONTROL
6
13
23
8
11
15
17
28
4
4
2
18
3
19
24
26
12
16
10
9
14
6
30
25
7
21
6
29
27
5
20
22
2
5
1

Артикул

Название

Примечание

Количество

1

87398805

AIR CONDITIONER

Assy, Manual HV

1шт.

2

87754248

PLUG

2шт.

3

87754246

ELECTRIC BLOWER

12 V

1шт.

4

323597

CABLE TIE,165mm OAL x 9mm Thk

2шт.

5

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

12шт.

6

87495849

SCREW,Hex Washer, 14mm

29шт.

7

87495851

SPRING NUT,K50, Plastic

4шт.

8

87754255

WIRE HARNESS

Manual HVAC

1шт.

9

87754243

EVAPORATOR

Assy, Service

1шт.

10

87653379

HOUSING

HVAC Unit Top

1шт.

11

87653381

HOUSING

HVAC Unit Bottom

1шт.

12

87655340

BAFFLE

HVAC Unit

1шт.

13

87754225

HEATER COIL

1шт.

14

87754244

COVER

Assy

1шт.

15

87754233

GASKET

Duct

1шт.

16

87656838

COVER

HVAC Unit Frt

1шт.

17

87754234

GASKET

Plate

1шт.

18

87655335

COVER

HVAC Unit Rear

1шт.

19

87754236

GASKET

Mounting

1шт.

20

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

21

87754237

GASKET

Housing

2шт.

22

84143878

FOAM INSULATION

Recirculation Filter

1шт.

23

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

24

87355939

SCREW,#8 - 16 x 0.28"

7шт.

25

87495850

SPRING NUT,J, #10

2шт.

26

87754256

HEATER VALVE

1шт.

27

87754231

GROMMET

Tube

1шт.

28

87323829

SWITCH, A/C LOW PRES

1шт.

29

87754230

BOOT

TXV

1шт.

30

87754237

GASKET

Evap

1шт.

Выбрано товаров: 30
