Запчасти Case IH WD1204 (50.100.AP[01]) - HEATER, STANDARD (50) - CAB CLIMATE CONTROL

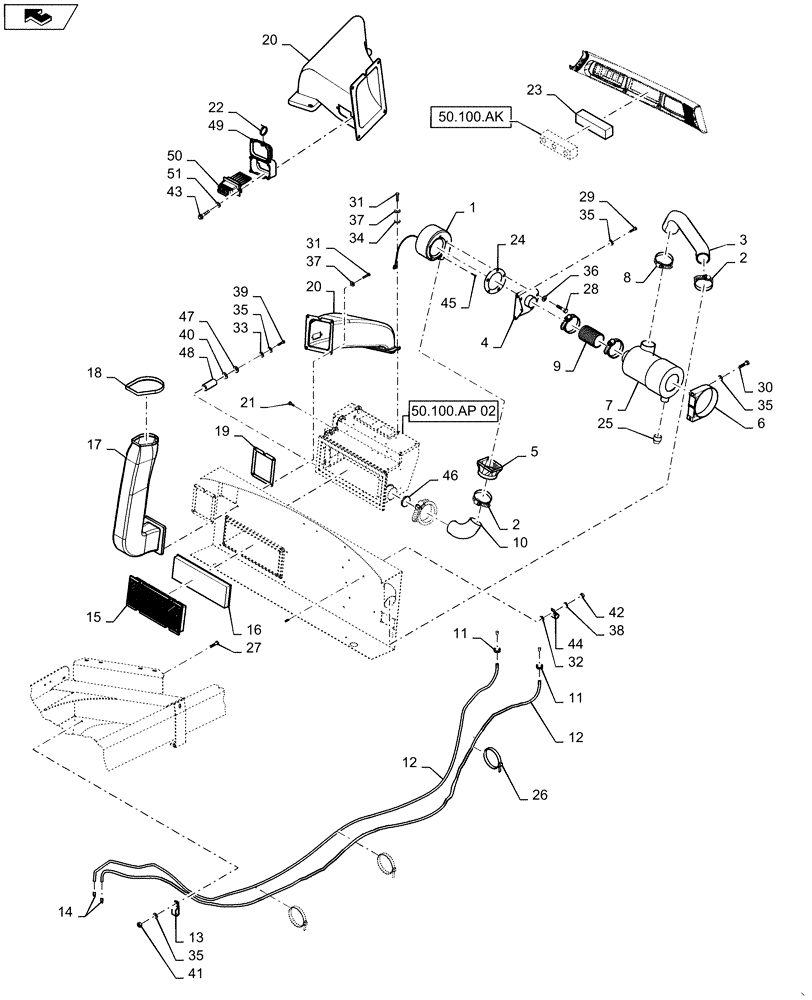

Схема запчастей Case IH WD1204 - (50.100.AP[01]) - HEATER, STANDARD (50) - CAB CLIMATE CONTROL
47
37
49
29
44
20
28
14
21
27
23
39
26
35
6
31
42
37
35
2
16
22
35
11
12
41
15
4
35
2
51
10
9
43
31
50
38
30
50.100.ap 02
48
3
32
50.100.ak
40
36
33
5
24
8
13
46
20
19
34
17
25
7
1
12
18
11
45

Артикул

Название

Примечание

Количество

1

87107380

BLOWER

Assy - Pressurizer

1шт.

2

59025

CLAMP

Hose, Replaced By 87040758

3шт.

3

87050745

HOSE,76.20 mm ID, 95.0 mm ID x 426.50 mm, SAE J20R4 CLASS D1

1шт.

4

87050744

SUPPORT ASSY.

Blower

1шт.

5

87107256

ADAPTER

1шт.

6

84057675

CLAMP BRACKET

Bracket

1шт.

7

84334657

AIR CLEANER

Assy

1шт.

8

246047

CLAMP

Hose, Replaced By 86625034

3шт.

9

87050747

HOSE,89.00 mm ID x 70 mm, SAE J20R1 CLASS D2/SAE J20R4 CLASS D1

1шт.

10

87484463

HOSE

Intake Air, 89 MM ID

1шт.

11

1250522C3

FITTING

Drain CNH 87000221

2шт.

12

198091C2

HOSE

Cut to Length 3.4M From Bulk Roll

1шт.

13

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Closed 19MM 2 Line Insul 5/16 BLT

1шт.

14

109239C2

CHECK VALVE

2шт.

15

84061669

GRILLE

1шт.

16

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

Cab, Air Recirculation

1шт.

17

86626166

AIR DUCT

Inner

1шт.

18

84059894

SEAL

1шт.

19

87028579

GASKET

2шт.

20

87579969

AIR DUCT

Outer

1шт.

21

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

8шт.

22

168955

SECURING STRAP

4X.115 In, Nylon, Natural

1шт.

23

87281122

SLEEVE

Mount, Din

1шт.

24

87107381

GASKET

1шт.

25

9809800

DUST VALVE,1.93" ID x 2.24" OD

Vacuator

1шт.

26

249730

SECURING STRAP,8" L

Cable Tie, 8X.115 In, Nylon, Black

3шт.

27

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

28

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

5шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

31

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

33

12646205

WASHER,M8 x 35 x 3

4шт.

34

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

36

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

5шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

39

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

40

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

42

9628503

NUT,3/8"-16, G5

1шт.

43

87338734

SCREW,Hex Wshr Hd, M4 x 16mm

2шт.

44

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

45

86639138

SELF-TAP SCREW,HWH, M4.8 x 1.6 x 13mm

1шт.

46

87587620

CAP

Orifice

1шт.

47

87653375

RUBBER WASHER

35 x 14 x 9.5

4шт.

48

87653373

SPACER

4шт.

49

87754239

BOOT

Linear Driver

1шт.

50

87306706

TERMINAL CONNECTOR

Blower Motor Resistor

1шт.

51

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

Выбрано товаров: 51
