Запчасти Case IH WD1204 (41.200.AE[01]) - STEERING ASSY, HYDRAULIC 4 CYLINDER, STANDARD SPEED, ASN YGG677501 (41) - STEERING

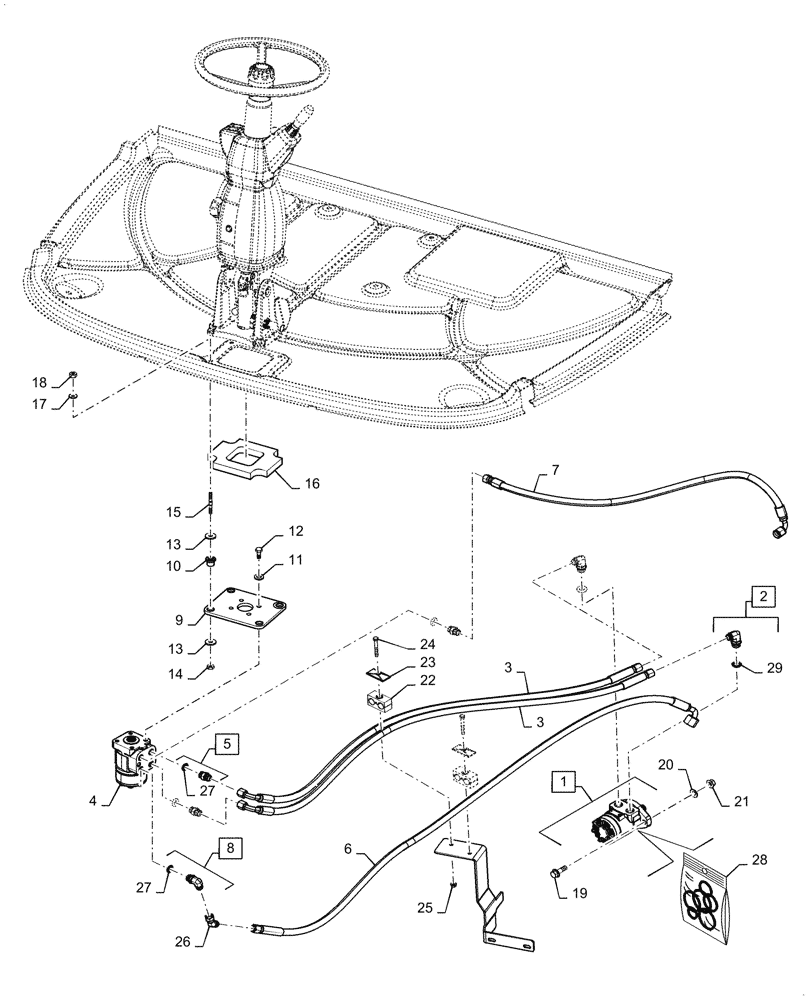

Схема запчастей Case IH WD1204 - (41.200.AE[01]) - STEERING ASSY, HYDRAULIC 4 CYLINDER, STANDARD SPEED, ASN YGG677501 (41) - STEERING
17
18
20
14
24
3
13
22
15
23
5
26
19
8
10
12
25
3
4
21
16
28
13
2
9
27
1
11
29
7
27
6

Артикул

Название

Примечание

Количество

1

48005525

HYDRAULIC MOTOR

1шт.

2

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

3

47982581

HYDRAULIC HOSE

2шт.

4

47976101

STEERING VALVE

1шт.

5

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

6

84386243

CLAMP,489mm L

1шт.

7

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

84075217

PLATE

1шт.

10

601062

ISOLATOR

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

13

86012639

WASHER,10.3mm ID x 31.8mm OD x 3.2mm Thk

8шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

15

84432508

STUD,M8 x 71

4шт.

16

86974950

GASKET

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

23

48048146

HYDRAULIC HOSE

2шт.

24

1589857

CLAMP

1шт.

25

87000230

PLATE

2шт.

26

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

27

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

28

47725943

SEAL KIT

Incl In Ref 1

1шт.

29

NSS

NOT SOLD SEPARAT

Manifold

1шт.

30

1791258

CLAMP

1шт.

31

47982876

HYDRAULIC HOSE

1шт.

32

47976725

HYDRAULIC HOSE

1шт.

33

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl In Ref 2

2шт.

35

87661956

SEAL KIT

Incl In Ref 4

1шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl In Ref 5, 38

2шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl In Ref 5, 38

2шт.

Выбрано товаров: 37
