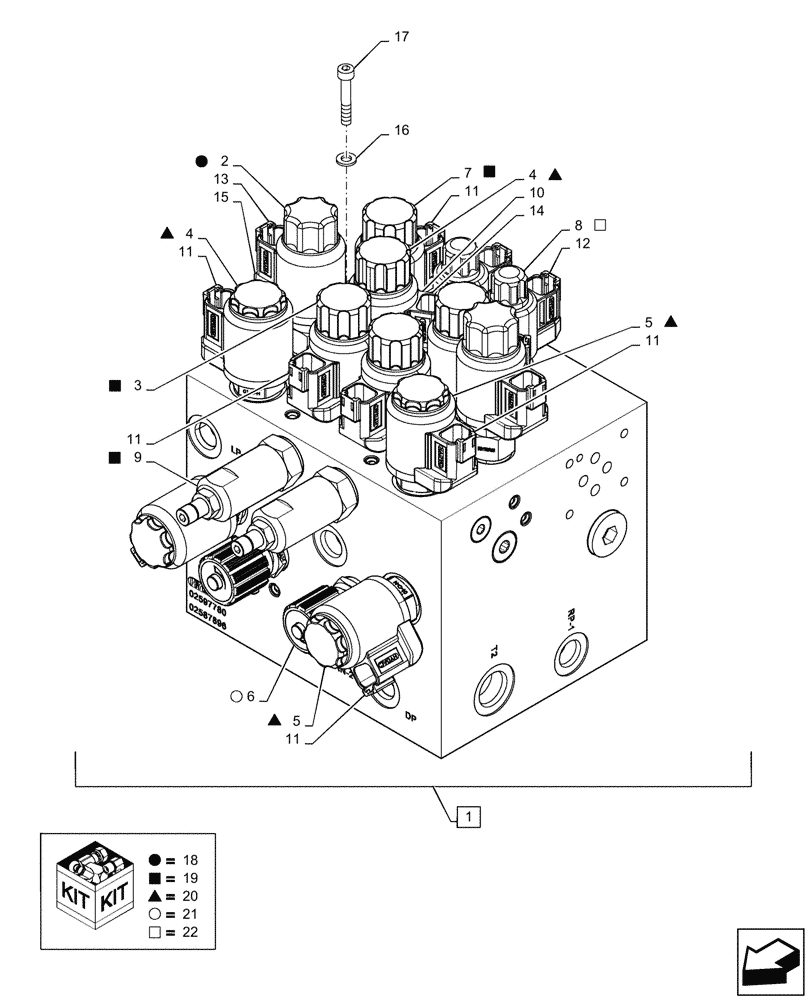

Запчасти Case IH WD1204 (35.415.AA[04]) - MANIFOLD ASSY, ASN YGG676909 (35) - HYDRAULIC SYSTEMS

1

47970492

HYDRAULIC MANIFOLD

Lift - Float, 6 Cyl

1шт.

2

47970439

VALVE

Pressure Reducing

2шт.

3

47600640

VALVE

Check

2шт.

4

87573246

CHECK VALVE

Double

2шт.

5

47600656

VALVE

Solenoid Check

2шт.

6

47600657

VALVE

Manual

2шт.

7

87736061

SOLENOID

Assembly

1шт.

8

47600658

VALVE

Selector

2шт.

9

47600663

VALVE

Relief

2шт.

10

87707157

SOLENOID

Coil

2шт.

11

87736063

COIL

7шт.

12

84418716

COIL

Coil,12V

2шт.

13

47448438

COIL

Solenoid

2шт.

14

47506618

RETAINER

Retainer, 25.4MM

4шт.

15

47528512

RETAINER

Retainer, 22.2MM

3шт.

16

87698788

HEX SOC SCREW,M4 x 10mm, Cl 12.9

7шт.

17

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

7шт.

18

84419450

SERVICE KIT

Seal, For 2

1шт.

19

84556584

SEAL KIT

For 3, 7, 9

1шт.

20

87755465

SEAL KIT

For 4, 5

1шт.

21

47608392

SEAL KIT

Seal Kit, For 6

1шт.

22

47608393

SEAL KIT

Seal Kit, For 8

1шт.
