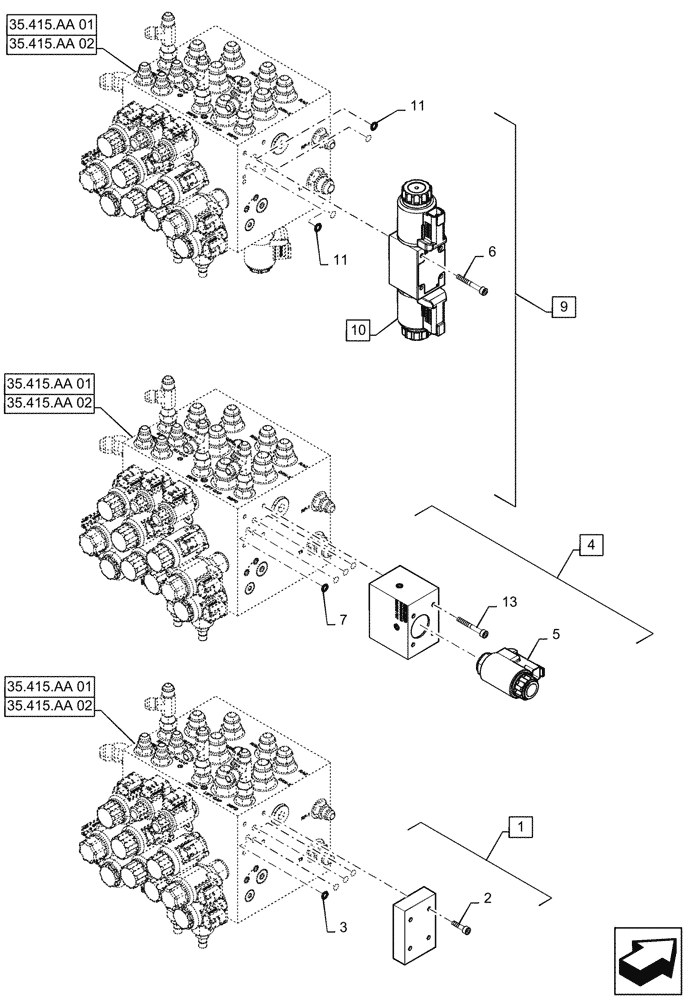

Запчасти Case IH WD1204 (35.415.AA[02]) - HYDRAULIC LIFT MANIFOLD (35) - HYDRAULIC SYSTEMS

1

84591001

HYDRAULIC MANIFOLD

Internally Routed, No Option, Incl 2 - 3

1шт.

2

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

3

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Shown

1шт.

4

47425689

HYDRAULIC MANIFOLD

Power Down Option, Incl 5 - 8

1шт.

5

47601097

VALVE

Selector Valve

1шт.

6

14301521

HEX SOC SCREW,M5 x 60mm, Cl 8.8

4шт.

7

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Shown

4шт.

8

87755468

SEAL KIT

Not Shown

1шт.

9

84582831

HYDRAULIC MANIFOLD

Three Speed and Power Down, Incl 10, 11 and 13

1шт.

10

47601173

VALVE

Four Way Valve

1шт.

11

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Shown

4шт.

12

47518199

SERVICE KIT

Lift Arm Power Down; Instructions 47518202

1шт.

13

14304531

HEX SOC SCREW,M5 x 30mm, Cl 10.9, Full Thd

4шт.
