Запчасти Case IH WD1204 (35.220.AA[02]) - AUXILIARY HYDRAULIC DRIVE, 4 CYLINDER, NON-DRAPER (35) - HYDRAULIC SYSTEMS

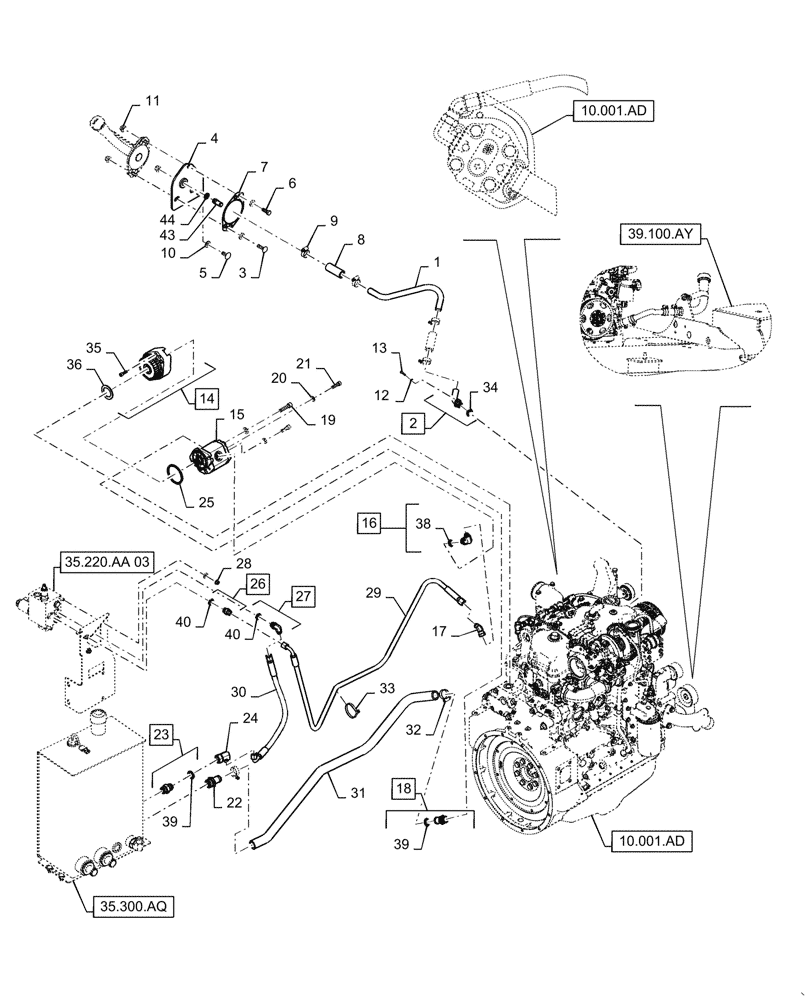

Схема запчастей Case IH WD1204 - (35.220.AA[02]) - AUXILIARY HYDRAULIC DRIVE, 4 CYLINDER, NON-DRAPER (35) - HYDRAULIC SYSTEMS
4
3
36
24
30
2
26
17
12
39
33
39
5
22
32
19
1
35.300.aq
38
28
21
40
39.100.ay
43
18
11
6
29
20
10
35
14
13
39
23
10.001.ad
15
31
10.001.ad
8
25
27
35.220.aa 03
34
40
9
7
16

Артикул

Название

Примечание

Количество

1

47635422

TUBE

Auxiliary Oil Fill

1шт.

2

2853116

NECK FILLER

Oil, Incl 34

1шт.

3

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

4

47630028

PLATE

Filler Neck Mounting

1шт.

5

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

7

4896897

GASKET,1.35mm Thk

Accessory Drive Cover

1шт.

8

84296251

HOSE,22.23mm ID x 80mm L, SAE J30R7, Type 2

Hose

2шт.

9

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

#24

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

11

9804279

FLANGE NUT,Hex, M12, Cl 8

3шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

84272202

PTO

Gear Pump, Incl 35 - 36

1шт.

15

87050689

HYDRAULIC PUMP,22.8 CC

Gear

1шт.

16

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 38

1шт.

17

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

18

87027931

NIPPLE

Stem, Incl 39

1шт.

19

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

22

47503592

FITTING

Hose

1шт.

23

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 39

1шт.

24

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

26

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 40

1шт.

27

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 40

1шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

29

47632504

HOSE

Manifold "P" Port to Pump

1шт.

30

47632502

HOSE

Manifold "T" Port to Reservoir

1шт.

31

47632501

HOSE

Return

1шт.

32

86536660

HOSE CLAMP,25mm - 44mm

2шт.

33

529070

CABLE TIE,368.3mm L

3шт.

34

2852801

O-RING

Seal, Incl with 2

1шт.

35

16588324

SCREW,M12 x 45mm

Gasket, Incl with 14

2шт.

36

4896897

GASKET,1.35mm Thk

Incl with 14

1шт.

37

87340205

SEAL KIT

Gear Pump, Not Illustrated

1шт.

38

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl with 16

1шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl with 18, 23

2шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 26 - 27

2шт.

41

47817228

KIT

DIA, 4 Cyl Auxilary Hydraulic, Non Draper; Instruction 47815821

1шт.

43

87027931

NIPPLE

Hose, Plare

1шт.

Выбрано товаров: 42
