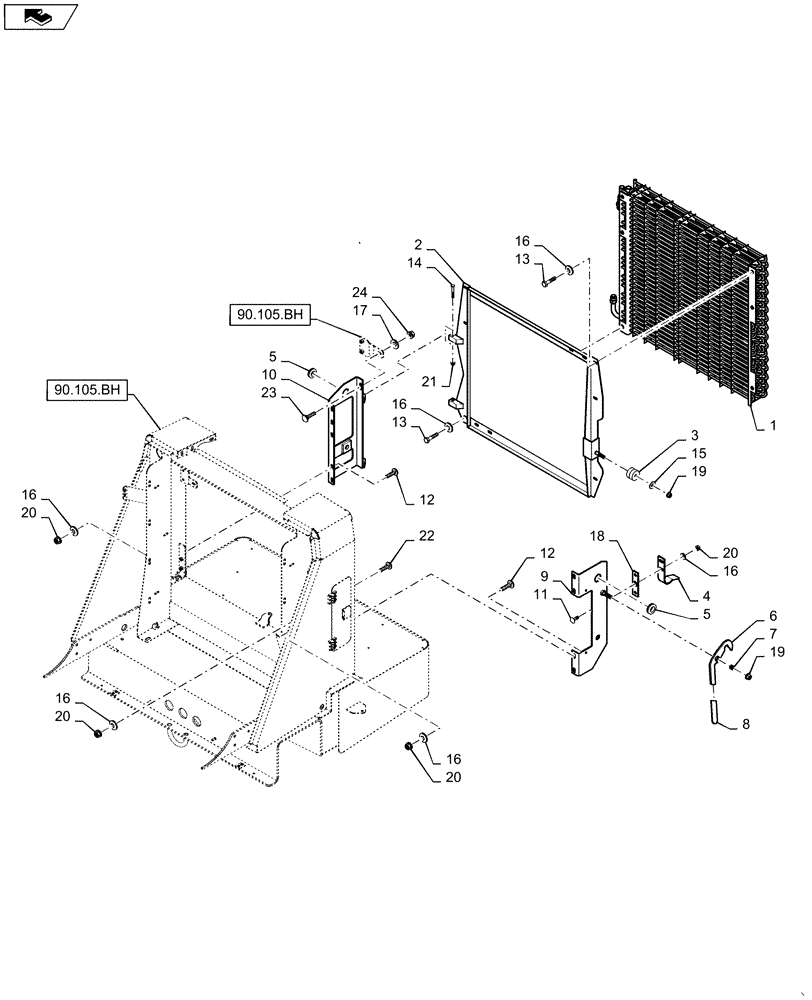

Запчасти Case IH WD2303 (35.300.AB) - OIL COOLER, FRAME (35) - HYDRAULIC SYSTEMS

1

87490300

OIL COOLER

Oil Cooler/Condensor Combo

1шт.

2

87360958

FRAME

1шт.

3

87564339

SPACER

1шт.

4

86635204

BRACKET

1шт.

5

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

2шт.

6

87390118

LATCH

1шт.

7

26315

SPRING

1шт.

8

219838

HANDLE GRIP

1шт.

9

87396603

MOUNTING PARTS

1шт.

10

87396605

SUPPORT

1шт.

11

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

12

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

18

84425680

BRACKET

1шт.

19

87323841

FLANGE NUT

2шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

21

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

22

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

23

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

24

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.
