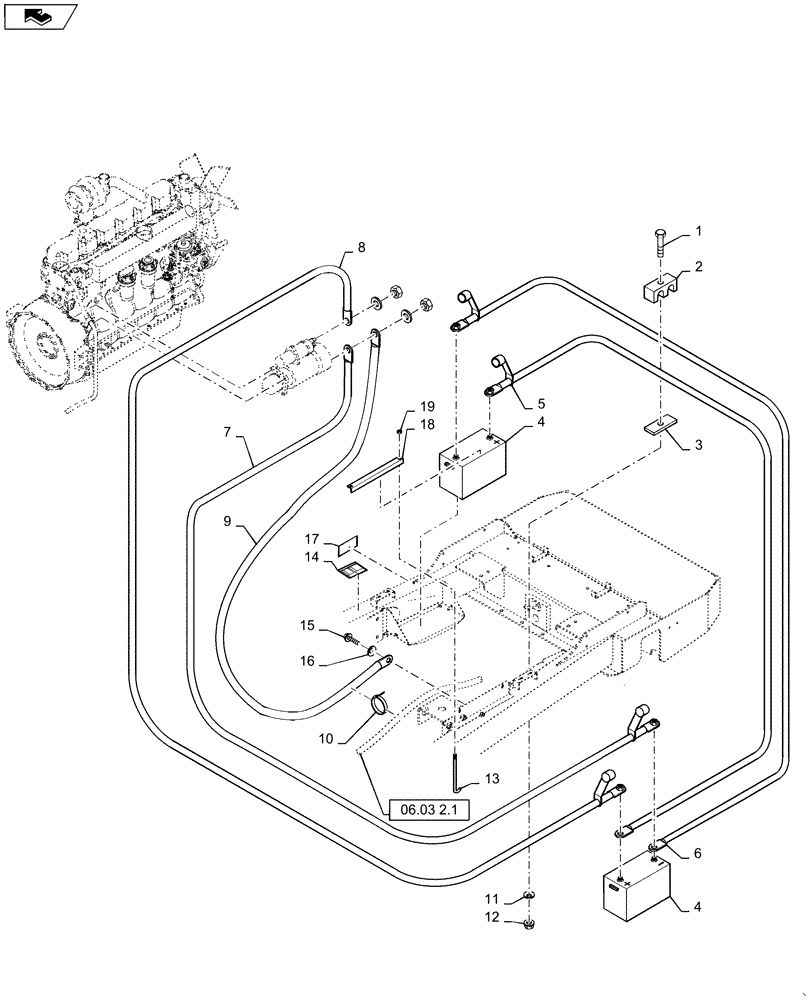

Запчасти Case IH WD2303 (06.01[2.1]) - BATTERIES, FROM YCG667001 (06) - ELECTRICAL

1

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

2

86900725

CLAMP

1шт.

3

87053042

PLATE

1шт.

4

PL

PROCURE LOCALLY

1шт.

5

86533716

ELECTRIC CABLE

Positive

1шт.

6

86533717

ELECTRIC CABLE

Negative

1шт.

7

86533713

ELECTRIC CABLE

Negative

1шт.

8

87556383

POS BATTERY CABLE

Positive

1шт.

9

87035431

GROUND STRAP

1шт.

10

249730

SECURING STRAP,8" L

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

13

798180

BOLT

Hook

2шт.

14

76776

DECAL

Battery Terminal

1шт.

15

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

87054970

DECAL

Danger (side of frame)

1шт.

18

794967

SUPPORT

Battery Strap

1шт.

19

9628503

NUT,3/8"-16, G5

1шт.
